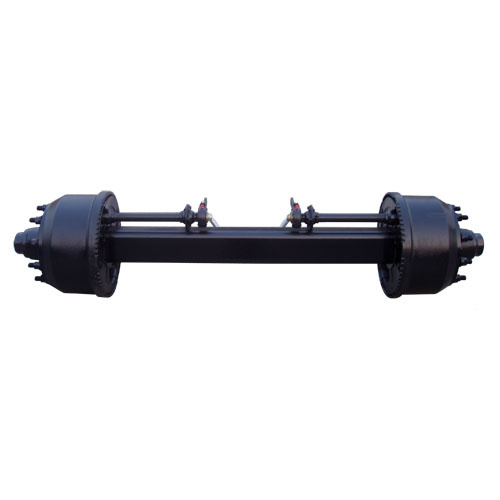

Trailer axle without brake1. Ourboard-drum
2. Round beam or square beam
3. Mobil Grease
4. ABS and T30 brake chamber
Main products:
Germany Axle, English Axle, American Axle, Bogie Suspension, half axle, Suspension
Parts, fifth wheel, kingpin and other trailer parts.
Product characteristics:
1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. High performance premiun non-asbestos brake linings, extend service life
4. Easy fir ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. New tight fit hub cap have O rings, high property for sealing
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
9. Through ISO9001: 2000 certification and ISO/TS16949 we faithfully follow the stipulations of this standard
So as to guarantee high product quality.

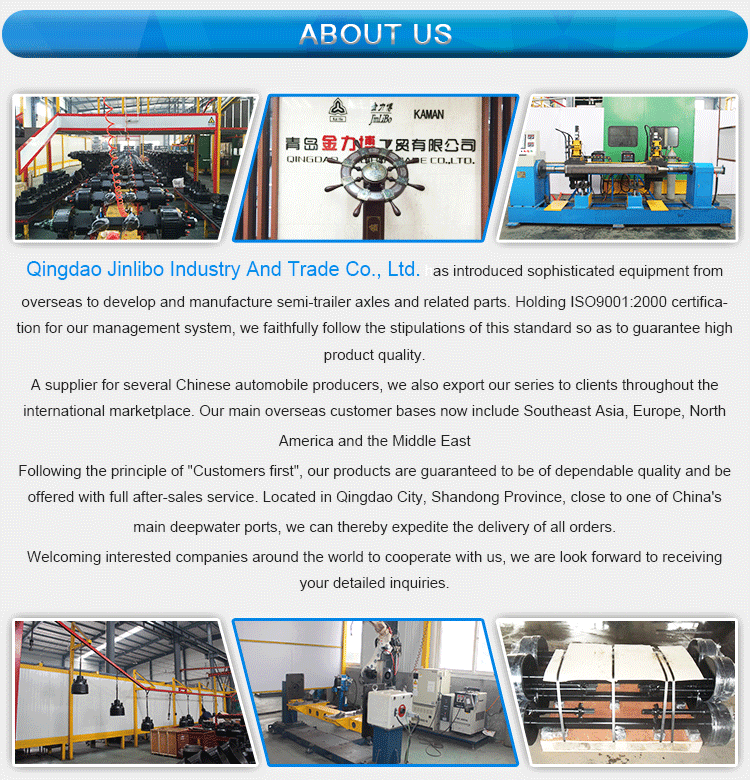

About us
Qingdao Jinlibo Industry and Trade Co., Ltd. Manufacture and supply trailer axle and related parts for
Many years. Welcoming interested compaines around the world to cooperate with us.
HOPE WE HAVE A GOOD COOPERATE.
| JLB Germany Stlye Axle Specification |
| TYPE | Brake Size(mm) | Wheel Fixing | No.*Size Of Wheel Stud | Bearing | Track Length(mm) | Beam Size(mm) | Max Capacity(T) |
| RND1218I | 420*180 | ISO | 10*M22*335 | 33213 33118 | 1840 | 150*150*14 | 12 |
| RND1218J | 420*180 | JAP | 8*M20*285 | 33213 33118 | 1840 | 150*150*14 | 12 |
| RND1220I | 420*200 | ISO | 10*M22*335 | 33213 33118 | 1840 | 150*150*14 | 12 |
| RND1222I | 420*220 | ISO | 10*M22*335 | 33213 33118 | 1840 | 150*150*14 | 12 |
| RND1418I | 420*180 | ISO | 10*M22*335 | 33215 32219 | 1840 | 150*150*14 | 14 |
| RND14201 | 420*200 | ISO | 10*M22*335 | 33215 32219 | 1840 | 150*150*14 | 14 |
| RND14221 | 420*220 | ISO | 10*M22*335 | 33215 32219 | 1840 | 150*150*14 | 14 |
| RND1618I | 420*180 | ISO | 10*M22*335 | 32314 32222 | 1840 | 150*150*14 | 16 |
| RND1620I | 420*200 | ISO | 10*M22*335 | 32314 32222 | 1840 | 150*150*14 | 16 |
| RND1622I | 420*220 | ISO | 10*M22*335 | 32314 32222 | 1840 | 150*150*14 | 16 |
Qingdao Jinlibo Industry And Trade Co., Ltd. is an enterprise primarily in exporting heavy trailer parts. We can produce many kinds of semi-trailer axle and suspension system, supply various semi-trailer parts, skeleton semi-trailer, landing gear, fifth wheel, steel wheel, brake drum, hub, kingpin, brake chamber, adjustment arm, and so on.
Jin Libo semitrailer axle produced by the company, has reasonable structure, good braking quality, high-intensity, big rigidity, long life, as well as strong bearing capacity, and also passed the national authoritative department's monitor: The fatigue life reaches 1.5 million times without damage, which surpasses national standard. At present, the annul productive ability of Jin Libo semitrailer axle has surpassed ten thousands, widespread using in domestic and overseas, and selling in distant markets in Malaysia, Germany, US, Ecuador and so on.
Jin Libo axle is your wise and beneficial choice.
Our main products.
Germany type axle: 16ton 14ton 12ton
English type axle: 16ton 13ton
American type axle 16ton 13ton
Spoke axle, ZM axle, Agriculture axle, Brasilian axle, spoke half axle and axle without brake
SUSPENSION
24ton 28ton 32ton suspension, spoke suspension and 16wheel 45-100t rigid suspension, 45t 65t cross-core suspension. And machinery suspension(3axle and 4axle)
Product characteristics:
1. Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. High performance premiun non-asbestos brake linings, extend service life
4. Easy fir ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. New tight fit hub cap have O rings, high property for sealing
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintance
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims
