Name: TPMS Tire Pressure Monitor System USB Navigation Android System Internal External Sensors
Brand: ibuyautoparts.com
SKU: 809328115
Availability: InStock
Rating: 4.9 (76 reviews)

Price:	US $ 43-52.5/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Instruction

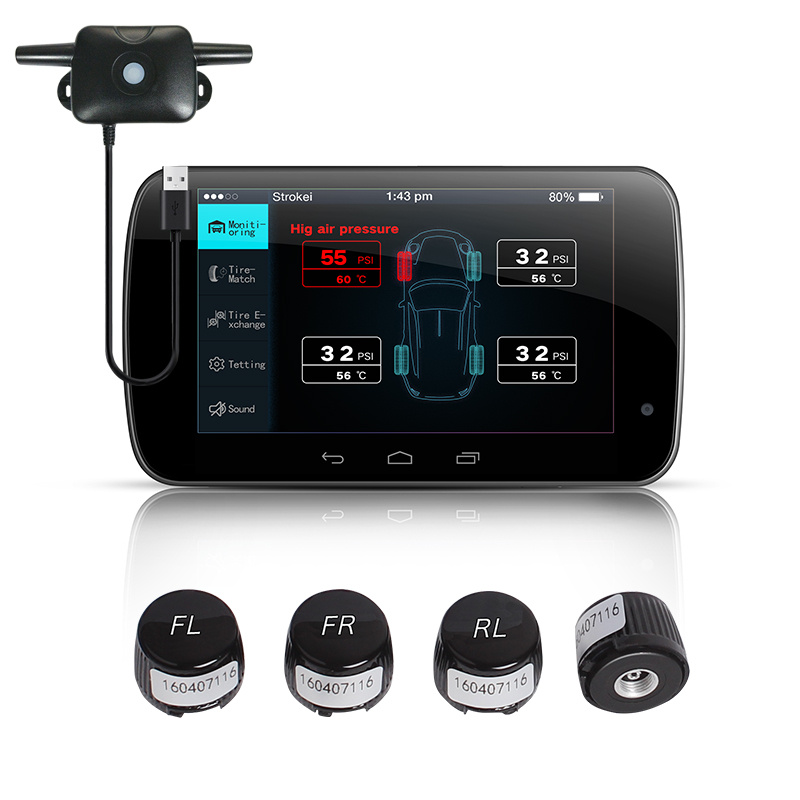

TPMS includes 4pcs sensors and 1pcs USB reciever,Sensors detect air pressure and temperature of the tires in real time,and transmit singal to USB Reciever by radio frequency.USB receiver will transmit tire pressure and temperature data to the car Android navigation APP.APP sounds a corresponding alarm to remind the user according different abnormal situation on the basis of the standard pressure and temperature alarm value.
The system can improve the comfort of the vehicle, reduce fuel consumption, reduce vehicle wear and enhance the dynamic performance.

Product Feature
1.Car original audio alarm
2, APP background real-time monitoring, direct viewing operation.

3.Multi languages for option(traditional and simplified, English), pressure units for option(Bar,PSI,Kpa,Kg),Temperature unit for option(ºC,ºF).

FAQ:
Q.:what is the size for external sensor and internal sensor?
A:.internal sensor size is 73*63*10cm. External sensor diameter is 20,height is 17cm.

Q.: What is the packing box size for External and internal?
A: .internal one is 20*19*6. External one is 15*12*7cm.

Q.:what is the carton size? How many set can be loaded in?
A:.41*38*31cm.internal TPMS can contain 20set,External can contain 36sets.

Operating Temperature: -20ºC-80ºC
Pressure Range: 0-4.5Bar (65Psi)
Pressure Sensitivity: ±0.1Bar(1.5Psi)
Temperature Sensitivity: ±3ºC
Power: <10dbm
Frequency: 433.92MHZ
Battery life: 2 years
Dimension:
20mm*17mm (Diameter*Height)
Sensor Weight: 10 g

Prod Model:	TW600
Item Name:	TPMS
Feature:	USB Navigation TPMS
Sensors:	Internal and External Sensors
Life Time:	Internal Sensors for 5years
Life Time For External Sensors:	2years
Warranty:	One Year
Weight:	0.6kg Each Set
Pressure Unit:	Psi,Bar
Display:	Temperature and Pressure
Pressure Range:	0-8bar (116psi)

Shenzhen Shenyongtong have been found in 2004, for 12years. A manufacturer with 44 employees; It was established in 2004, located in 5/F, Bbuilding Yufeng Industrial Park, Yanguang 6th Road, Xili Town, Nanshan District Shenzhen City, Guangdong Province, China.

Our company occupies an area of more than 1000 square meters. Our company has its obtianed test report and patent certificates.

We has successuful foreign trading experience in Europe, North America, South America, Southeast Asia and Mideast. Our customers come from all over the world.

It is a reliable and professional manufacture on auto part car aftermarket.

At present we focus on producing tire pressure monitoring system.

There are different models.

We have our own research and developing team.

Our sale team. And have our own brand.

Our product brand have been very famous in Chinese market.

We attend several exibition shows each year.

You are welcome to visit our factory and talk.

We are the best choice for you!
