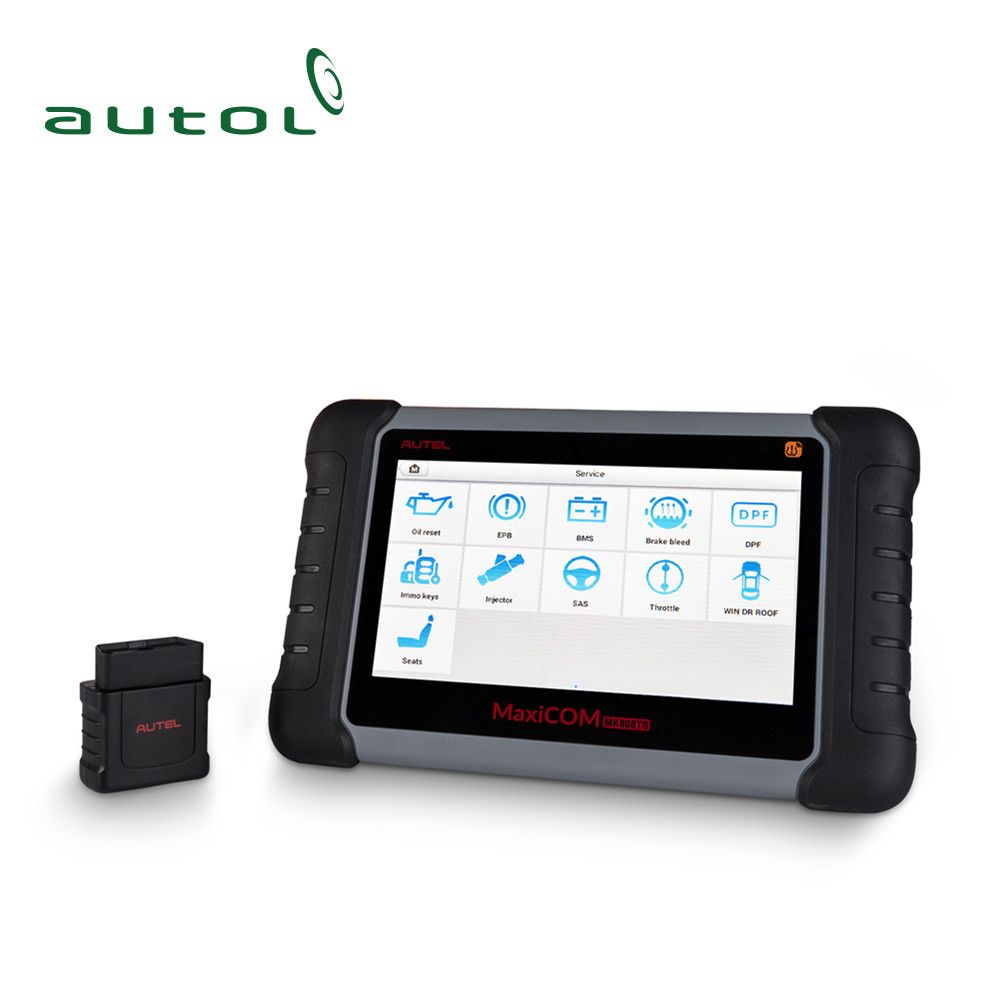

Top TPMS Scan Tool Autel Maxicom MK808ts Most Powerful And Fastest Tpms Tool Best Used Car Diagnostic Scanner Update Online
Quick details:
Autel MaxiCOM MK808TS TPMS Reset Activation Programming Tool & All System OBD Diagnostic Tool with Oil Reset/EPB/SAS/BMS/DPF and Immobilizer Service Tool with Wireless Bluetooth
1.Advanced TPMS diagnostics for complete TPMS health check. Activate 98% of all known TPMS sensors.
2.Program AUTEL MX-Sensor. Comprehensive OBD relearn coverage. On-screen relearn procedure.
3.Read/clear codes for all available systems. Display live data in text, graph & analog for easy data review. Auto VIN technology can automatically identify the vehicle's make, model and year information in no time.
4.Reset Steering Angle Sensor (SAS) and service mileage and service intervals, Relearn parking brake pad after replacement.
5.Support forced DPF regeneration and adjusting injectors, Support battery registration and reset.
More information:
Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiCOM MK808TS provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter) and IMMO. In addition to OBD II diagnostics and special service, MK808TS enables you to carry out complete TPMS functions, including TPMS health check, sensor activation & programming and TPMS relearn.
Functions:
Complete TPMS functions
Advanced TPMS diagnostics for complete TPMS health check
Activate 98% of all known TPMS sensors
Program AUTEL MX-Sensors
Comprehensive OBD relearn coverage
Onscreen relearn procedure
Basic Diagnostic functions for all systems
Read/clear codes for all available systems.
Display live data in text, graph & analog for easy data review
ECU information
OBD Diagnostic functions
Read/erase codes
View live data
View freeze data
View I/M readiness status
View vehicle information
O2 monitor test
ON-board monitor test
Component test
Modules present
DTCs help
Service functions
Oil service reset
Parking brake pad after replacement
Steering Angle Sensor (SAS)
Battery registration and reset
Diesel particulate filter regeneration
IMMO functions
Display live data in text, graph & analog for easy data review.
Auto VIN technology can automatically identify the vehicle's make, model and year information in no time.
MaxiVCI Mini for wireless connetion.
Internet updatable via Wi-Fi
Print data via Windows-based PC or Wi-Fi printer
There are two main components of the MK808TS system:
MK808TS Display Tablet - the central processor and monitor for the system.
MaxiVCI Mini (Vehicle Communication Interface) - the device for accessing vehicle data.
Product Description

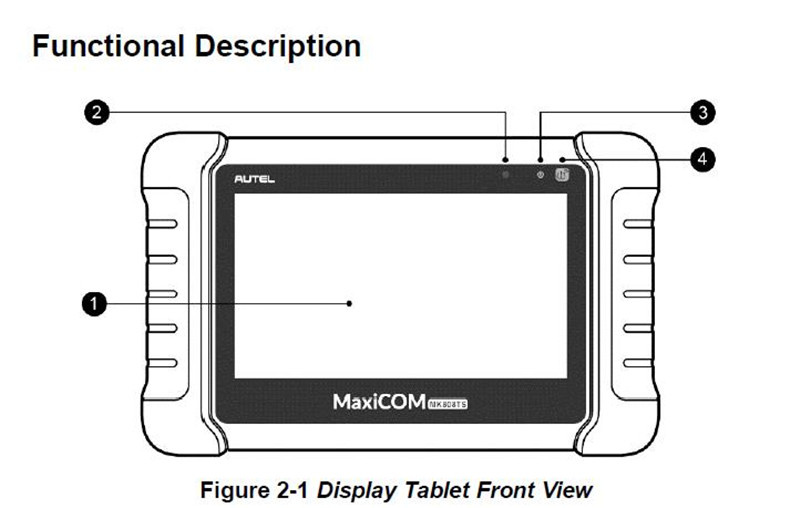

MaxiCOM MK808TS Display Tablet:
Functional Description
1. 7.0" LCD Capacitive Touchscreen
2. Ambient Light Sensor - detects ambient brightness.
3. Power LED - indicates battery level & charging or system status.
4. TPMS Service Symbol - indicates the position of the embedded TPMS antenna.
The power LED displays green, yellow or green depending on power level and operating state.
A. Green
Illuminates green when the Display Tablet is charging and the battery level is above 90%.
Illuminates green when the Display Tablet is powered on and the battery level is above 15%.
B. Yellow
Illuminates yellow when the Display Tablet is charging and the battery level is below 90%.
C. Red
Illuminates red when the Display Tablet is powered on and the battery level is below 15%.

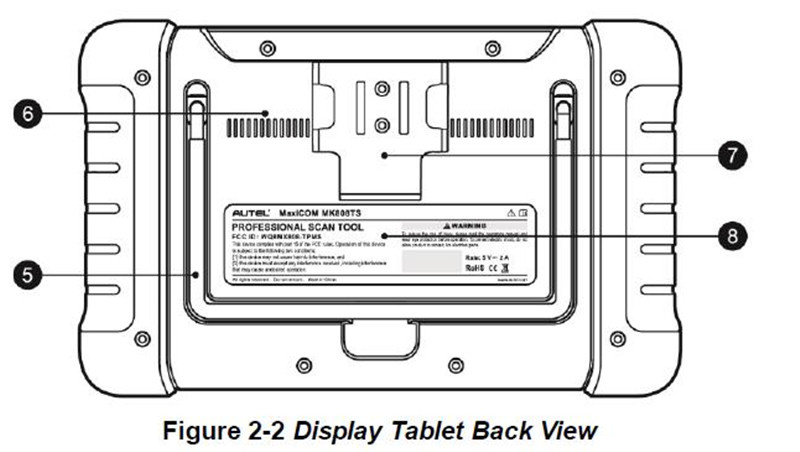

5. Collapsible Stand - extends from the back to allow hands-free viewing of the Display Tablet.
6. Heat Sink
7. MaxiVCI Mini Holder
8. Built-in Battery

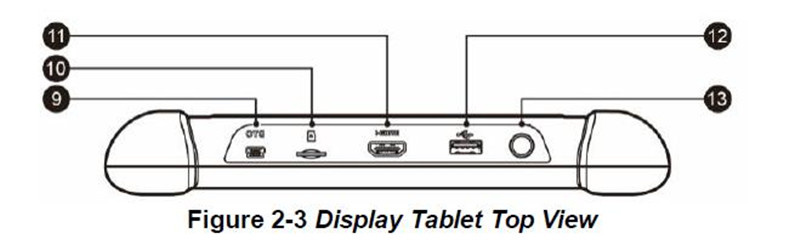

9. Mini USB OTG Port
10. Micro SD Card Slot - holds the micro SD card.
11. HDMI (High-Definition Multimedia Interface) Port
12. USB Port
13. Lock/Power Button - turns the device on & off with long press, or locks the screen with short press.

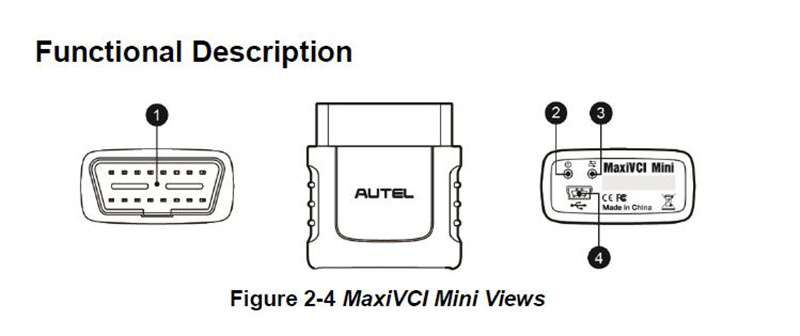

Functional Description
1. Vehicle Data Connector (16-Pin) - connects the MaxiVCI Mini to the vehicle's 16-pin DLC directly.
2. Power LED.
3. Connection LED
4. USB Port - provides the easiest connection between the device and the tablet via a USB cable.
Diagnostics
The Diagnostics application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), airbag system (SRS).
FAQ
Q:Is it original?
A:Yes, 100% original new?
Q:How to update?
A:Update on official website.100% Original Autel MaxiCOM MK808TS Best Tpms Programming Tool Car Diagnostic Machine Better Than Autel Ds808
