Top Selling Vgate Icar 3 Elm327 Bluetooth V3.0 OBD2 Diagnostics Scanner for Android Vgate Icar3 Bluetooth Free Shipping

Prod Model:	SC02-E
After-Sale Services:	One Year Warranty
Function:	ECU Code Reader
System Required:	for Android
Applied To:	OBD 16 Pin Gasoline Vehicels
Color:	5 Kinds of Color for Choice
Special Features:	Bluetooth
Item Type:	Code Readers & Scan Tools
Language:	English
Hardware Version:	V2.1
Certification:	CE
Update Method:	by Email
Testing Equipment Type:	Code Reader

Product Description

The Vgate® iCar 3 Bluetooth is an engine performance and diagnostics tool for both automotive enthusiasts

and professionals. Paired with your Android device, this scanner allows you to easily scan and clear engine

codes, view and save real-time engine and performance data and much more.


Newly released in 2015, this model features Bluetooth Version 3.0 for increased data transfer speeds and

reduced power consumption over earlier versions. It also features an integrated smart auto sleep function that

puts it into sleep mode after 30 minutes, allowing you leave it plugged into your vehicle at all times.


Key Highlights of Vgate iCar3 Bluetooth:

• Auto Sleep Mode function

• Uses the fastest and most reliable ARM chips

• Compatible with all Android devices

• Small size and compact structure.

• Stable wireless connection

• No wires or batteries (adapter is powered by the diagnosis size sockets)

• Read and erase diagnostic trouble codes (DTCs) and turn off the check engine light

• View real-time vehicle data, graphs and performance parameters while you're driving

• Find and fix problems before they happen

• Pays for itself with one use

• Compatible with all OBDII compliant vehicles

• Connects wireless via Bluetooth® up to 3 meters (no annoying cables)

• Compatible with SAE J1850 PWM and SAE J1850 VPW protocols found on many Ford and GM vehicles (these

protocols are NOT supported on cheaper bluetooth scanners)


Product Description:

With the appropriate applications, you can:

• Read, erase and display code descriptions problems - both standard and spetskodov manufacturers

• Measure the fuel consumption

• Turn off the MIL (signal Check Engine)

• Download data to external media in a variety of formats for later printing

• Record various parameters, display graphics in real time, and more.

Display Real-Time sensor data, including:

• Engine RPM

• Coolant Temperature

• Momentum

• Engine Load

• Oil  Pressure

• Throttle Position

• Calculated Load Value

• Fuel System Status

• Vehicle Speed

• Short and Long Term Fuel Trim

• Intake Manifold Pressure

• Timing Advance

• Intake Air Temperature

• Air Flow Rate

• Absolute Throttle Position

• Oxygen Sensor Voltages/Associated Short Term Fuel Trims

• Fuel System Status

• Fuel Pressure

+ More


With iCar3 you will be able to perform a complete computer diagnostics car and even to correct minor

faults without resorting to service stations.


Vgate iCar 3 Supports OBDII Protocols:

• Automatic

• SAE J1850 PWM(41.6Kbaud - Found on many Ford vehicles)

• SAE J1850 VPW(10.4Kbaud - Found on many GM vehicles)

• ISO9141-2(5 baud init,10.4Kbaud)

• ISO14230-4 KWP(5 baud init,10.4 Kbaud)

• ISO14230-4 KWP(fast init,10.4 Kbaud)

• ISO15765-4 CAN(11bit ID,500 Kbaud)

• ISO15765-4 CAN(29bit ID,500 Kbaud)

• ISO15765-4 CAN(11bit ID,250 Kbaud)

• ISO15765-4 CAN(29bit ID,250 Kbaud)

• SAE J1939 CAN(29bit ID,250*Kbaud)

• USER1 CAN(11*bit ID,125*Kbaud)

• USER2 CAN(11*bit ID,50*kbaud)


Colors:

• Black

• White

• Green

• Blue

• Red

Note: (please specify which color you need otherwise a color by random will be sent)

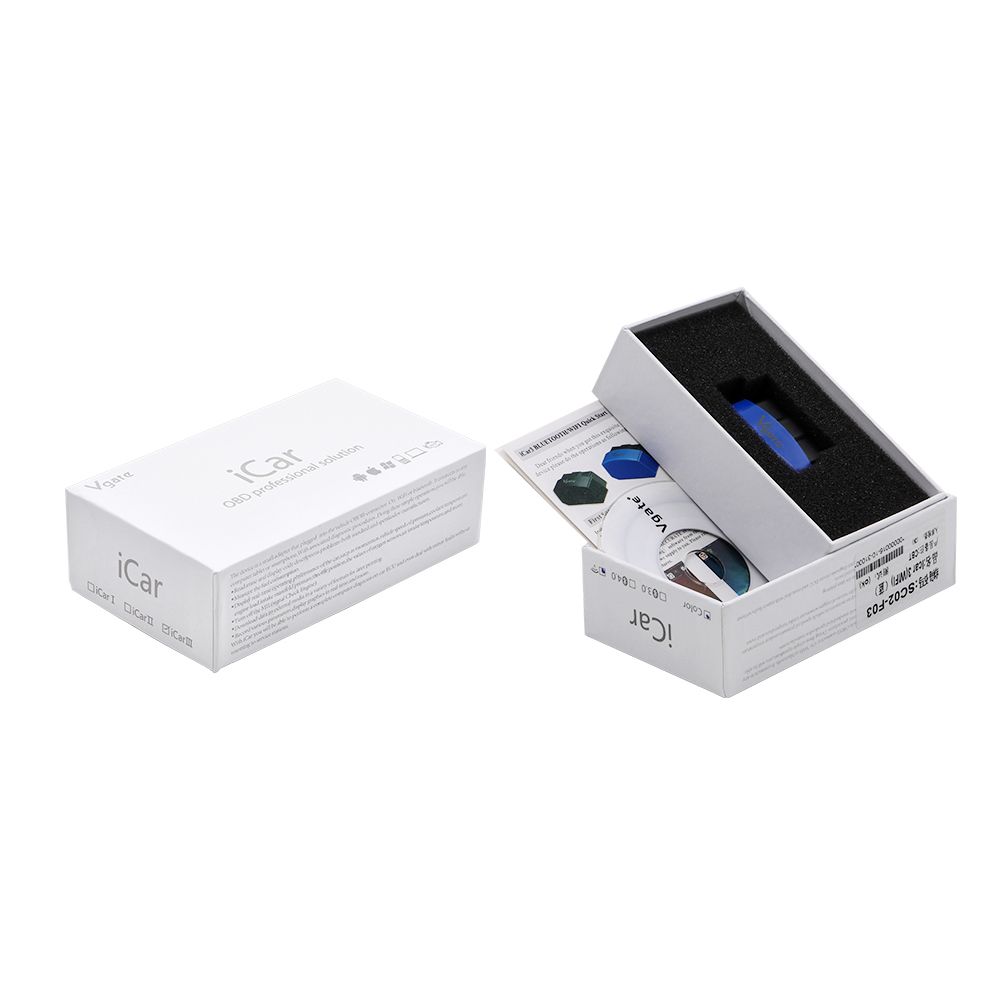

What's Included:

Vgate® iCar 3 ELM327 WiFi Scanner

Retail Box

Product Manual

CD
