TK103 GPS GSM GPRS Vehicle Tracker with Engine Cut OffThis tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.

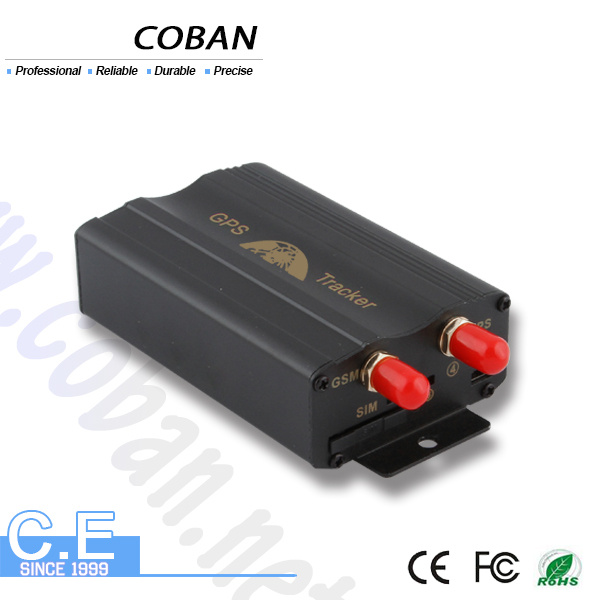

Product Pictures:
Function Description:
Positioning and Tracking: Through the online Positioning Platform or calling the gps tracker via your mobile phone,it will reply a SMS including longitude and latitude and a google map link,open this link,you can see the vehicle location on the google map.
Get location in real street/address name, send "address+password" to the tracker,it will reply you the
SMS including phsical street/ address. For example: No.8, Guankou 2nd Rd., Nantou, Nanshan district, Shenzhen, Guangdong, china. You must set up the APN of your local GSM network for the SIM card in tracker first before using this function.Remote Engine-stop and Resume in case of vehicle theft: you can control the oil and circuit via the unit by SMS in anywhere and anytime. so you can retrieve stolen vehicle,cars.
Tracking function by timing and frequency.
Authorized number added and deleted function.
Support hidden alarm and monitor function.
Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district.
Door / ACC Alarm: When someone trying to steal your car and start the ignition,you will get a SMS alert.
Movement alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.
*Over speed alarm.
*Power supply disconnection alarm.
*Low batttery alarm function
*Alarm without GSM network service
*GPS blind area alarm
Check the vehicle status
Set up DOOR ALARM, ACC ALARM, SENSOR ALARM by remote control
Less GPRS traffic, save money.
After send command "Lessgprs+password", tracker will change to less GPRS traffic mode after parking 5 minutes (ACC is OFF), GPRS disconnect and connect again when alarm being triggered or vehicle starts driving.Automatic update positions of vehicle turnsThe on-line web page tracking software has one month free trial, after that it is 3USD per year.Standard Packing list:GPS Unit

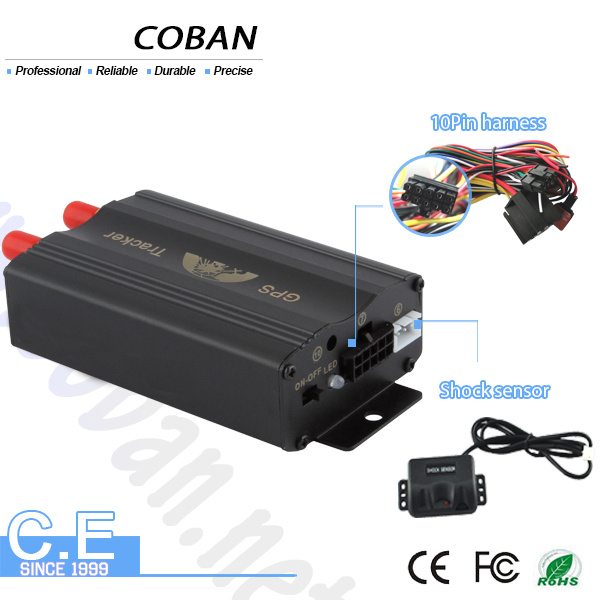

Remote controller(one)
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual | BoxOptional accessories
One more remote controller
Shock sensor
alarm siren
Microsd memory card
fuel sensor
Technology parameters:| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Five tracking solutions:
-Manual tracking
By calling the device, it will return a message back with Latitude and longitude data, you can enter this data on Google map or on our web tracking platform.
-PDA cell phone map tracking
The information that the message contains after you called the device has a map link, use a PDA smart phone you can open this link directly and see the location on your phone.
-Physical address tracking
By sending command "address+password", you will get a SMS return with the real street name like "zhiheng industries park, nantou guankou 2nd Rd, nanshan, shenzhen, guangdong, china."
-Web server online tracking www.gpstrackerxy.com
You can add the imei number of the device to the platform and after all the configuration, you can start real time online tracking on the platform.
we also supply multi-language(English,Spain,German,Italian.Portuguese,etc) web tracking platform for our customer to realize real-time tracking.
-Local based service(LBS) tracking
If the tracker cannot establish a solid GPS Fix, it will calculate its location using Cell-ID GSM locating, Location reports will include the GPS coordinates of the last known positions as well as a LAC code, Entering the LAC code to the "Manual Track" menu of web tracking platform www.gpstrackerxy.com will enable you to see the tracker's current location. You can also send command "address+password" to the tracker to request exact address, track will automatically switch to tracking by LBS in GPRS mode. Accuracy of LBS depends on the distance to the nearest GSM Network Cell Tower or Base Station.
Note: This feature can be used normally in most areas according to the signal of GSMnetwork. It may not be available in some areas.
Web online tracking platform: www.gpstrackerxy.com
Account: demo

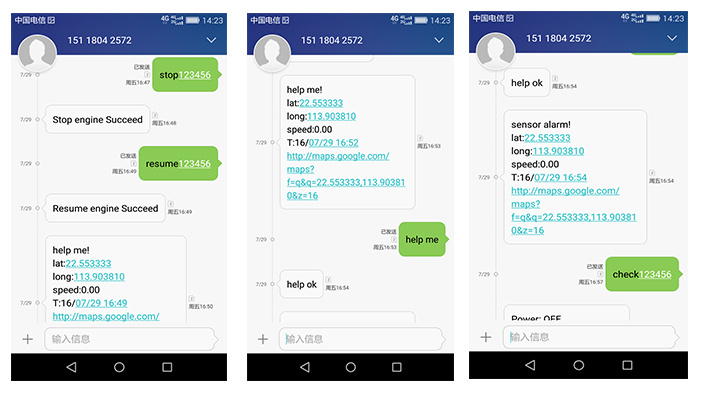

Password:8888SMS Command Demo:
Application
Used widely for vehicle and other moving objects tracking. Real-Time Vehicle Tracking Solutions For Business
1)Live Fleet Tracking Systems: Engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data! Providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data and more, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system.
2)Boost Employee & Vehicle Efficiency: By utilizing a fleet management plan that calls upon GPS tracking devices, businesses large or small with company vehicles can evaluate employee driving activity, accurately document mileage and eliminate driving behaviors such as excessive vehicle idling that can hurt automotive maintenance, customer service and company profit.
3)Auto Theft Security: Vehicle locator systems can protect all of your companies mobile assets. Easy to set geo-fences will allow businesses to create safe zones that will send text message notifications if a vehicle moves outside the programmed safety zones. Don't let your business operations be slowed down by theft! With GPS trackers securing your company vehicles, automobile theft will be a thing of the past!
