one of the largest bearings' exporters, from China. Sales size diameter in the 5MM-1800MM, SKF Bearing, NSK Bearing, NTN Bearing, NACHI Bearing, IKO Bearing, THK Bearing, TIMKEN bearing. TWB bearing, ZWZ bearing, HRB bearing, FYH bearing, EZO bearing, NMB bearing, GPZ bearing, Taper roller bearings, etc.
Brand: SKF, timken, NSK, NTN, koyo, NACHI bearings

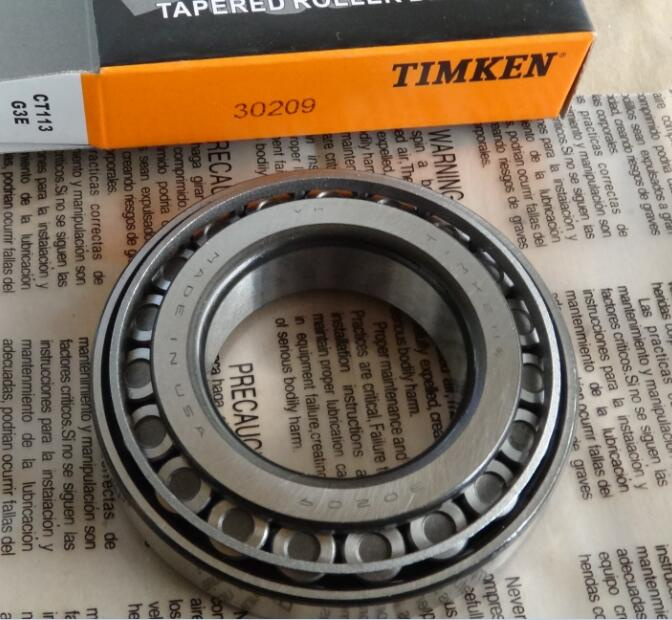

Taper roller bearings
30202 series
30202 30203 30204 30205 30206 30207 30208 30209 30210 30211 30212 30213 30214 30215 30216 30217 30218 30219 30220 30221 30222 30224 30226 30228 30230 30232 30236 30240 30244
30302 series
30302 30303 30304 30305 30306 30307 30308 30309 30310 30311 30312 30313 3031430315 30316 30317 30318 30319 30320 30321 30322 30324 30326 30328 30330 30332 303525
32204 series
32204 32205 32206 32207 32208 32209 32210 32211 32212 32213 32214 32215 32216 32217 32218 32219 32220 32221 32222 32224 32226 32228 3223032232 32236 32238 32240 32244 32248
32303 series
32303 32304 32305 32306 32307 32308 32309 32310 32311 32312 32313 32314 32315 32316 32317 32318 32319 32320 32321 32322 32324 32326 32330 32334
31303 series
31303 31304 31305 31306 31307 31308 31309 31310 31311 31312 31313 31314 31315 31316 31317 31318 31319 31320 31324 31326 31328 31332
32004 series
32004 32005 32006 32007 32008 32009 32010 32011 32012 32013 32014 32015 32016 32017 32018 32019 32020 32021 32022 32024 32026 32028 32030 32032 32034 32036 32038 32040 32044 32048 32052 32056 32060 32064
32907 series
32907 32910 32912 32913 32914 32915 32916 32917 32918 32919 32920 32922 32926 32928 32930 32932 32934 32938 32940 32944 32948 32952 32956 32960 32964
33005
33005 33006 33007 33008 33009 33010 33011 33012 33013 33014 33015 33016 33017 33018 33019 33020 33021 33022
33206 series
33206 33207 33208 33209 33210 33211 33212 33213 33214 33215 33216 33217 33218 33219 33220 33221
33108 series
33108 33109 33110 33111 33112 33113 33114 33115 33116 33117 33118 33119
| bore | CYS Bearing number | Principal dimensions | Basic load ratings | Max runout speed | Weight |
| dynamic | static | grease | oil |
| d | D | T | B | C | r1, 2 | r3, 4 | r5 | C | Co |
| min | min | min |
| mm | mm | N | r/min | kg |
| 15 | 30302 | 42 | 14, 25 | 13, 0 | 11 | 1, 0 | 1, 0 | 0, 3 | 17.92 | 16 | 7.2 | 10.4 | 0, 095 |
| 17 | 30303 | 47 | 15, 25 | 14, 0 | 12 | 1, 0 | 1, 0 | 0, 3 | 22.48 | 20 | 6.8 | 9.6 | 0, 130 |
| 20 | 30304 | 52 | 16, 25 | 15, 0 | 13 | 1, 5 | 1, 5 | 0, 6 | 27.280 | 26.000 | 6.400 | 8.800 | 0, 170 |
| 25 | 30305 | 62 | 18, 25 | 17, 0 | 15 | 1, 5 | 1, 5 | 0, 6 | 35.680 | 34.400 | 5.360 | 7.200 | 0, 260 |
| 30 | 30306 | 72 | 20, 75 | 19, 0 | 16 | 1, 5 | 1, 5 | 0, 6 | 44.880 | 44.800 | 4.480 | 6.000 | 0, 390 |
| 35 | 30307 | 80 | 22, 75 | 21, 0 | 18 | 2, 0 | 1, 5 | 0, 6 | 57.680 | 58.800 | 4.000 | 5.360 | 0, 520 |
| 40 | 30308 | 90 | 25, 25 | 32, 5 | 28 | 2, 5 | 2, 0 | 0, 6 | 68.640 | 76.000 | 3.600 | 4.800 | 0, 720 |
| 45 | 30309 | 100 | 27, 25 | 25, 0 | 22 | 2, 0 | 1, 5 | 0, 6 | 86.400 | 96.000 | 3.200 | 4.240 | 0, 970 |
| 50 | 30310 | 110 | 29, 25 | 27, 0 | 23 | 2, 5 | 2, 0 | 0, 6 | 100.000 | 112.000 | 2.880 | 3.840 | 1, 250 |
| 55 | 30311 | 120 | 31, 50 | 29, 0 | 25 | 2, 5 | 2, 0 | 0, 6 | 113.600 | 130.400 | 2.560 | 3.440 | 1, 550 |
| 60 | 30312 | 130 | 33, 50 | 31, 0 | 26 | 3, 0 | 2, 5 | 1, 0 | 134.400 | 156.800 | 2.400 | 3.200 | 1, 950 |
| 65 | 30313 | 140 | 36, 00 | 33, 0 | 28 | 3, 0 | 2, 5 | 1, 0 | 155.200 | 182.400 | 2.080 | 2.880 | 2, 400 |
| 70 | 30314 | 150 | 38, 00 | 35, 0 | 30 | 3, 0 | 2, 5 | 1, 0 | 176.000 | 208.000 | 1.920 | 2.720 | 2, 900 |
| 75 | 30315 | 160 | 40, 00 | 37, 0 | 31 | 3, 0 | 2, 5 | 1, 0 | 196.800 | 232.000 | 1.760 | 2.560 | 3, 450 |
| 80 | 30316 | 170 | 42, 50 | 39, 0 | 33 | 3, 0 | 2, 5 | 1, 0 | 216.000 | 256.000 | 1.600 | 2.400 | 4, 100 |
| 85 | 30317 | 180 | 44, 50 | 41, 0 | 34 | 4, 0 | 3, 0 | 1, 0 | 242.400 | 292.000 | 1.520 | 2.240 | 4, 850 |
| 90 | 30318 | 190 | 46, 50 | 43, 0 | 36 | 4, 0 | 3, 0 | 1, 0 | 264.000 | 320.000 | 1.440 | 2.080 | 5, 650 |
| 95 | 30319 | 200 | 49, 50 | 45, 0 | 38 | 4, 0 | 3, 0 | 1, 0 | 264 | 312.000 | 1.44 | 2.080 | 6, 700 |
| 100 | 30320 | 215 | 51, 50 | 47, 0 | 39 | 4, 0 | 3, 0 | 1, 0 | 321.600 | 392.000 | 1.360 | 1.92 | 8, 050 |
| 105 | 30321 | 225 | 53, 50 | 49, 0 | 41 | 4, 0 | 3, 0 | 1, 0 | 343.200 | 424.000 | 1.280 | 1.76 | 9, 150 |
| 110 | 30322 | 240 | 54, 50 | 50, 0 | 42 | 4, 0 | 3, 0 | 1, 0 | 378.400 | 468.000 | 5.280 | 1.76 | 11, 000 |
| 120 | 30324 | 260 | 59, 50 | 55, 0 | 46 | 4, 0 | 3, 0 | 1, 0 | 448.800 | 568.000 | 1.200 | 1.600 | 14, 000 |
| 130 | 30326 | 280 | 63, 75 | 58, 0 | 49 | 5, 0 | 4, 0 | 1, 5 | 501.600 | 640.000 | 1.040 | 1.440 | 17, 000 |
| 140 | 30328 | 300 | 67, 75 | 62, 0 | 53 | 5, 0 | 4, 0 | 1, 5 | 589.600 | 760.000 | 960 | 1.36 | 21, 000 |
| 150 | 30330 | 320 | 72, 00 | 65, 0 | 55 | 5, 0 | 4, 0 | 1, 5 | 660.000 | 848.000 | 880 | 1.28 | 28, 500 |
| 160 | 30332 | 340 | 75, 00 | 68, 0 | 58 | 5, 0 | 4, 0 | 1, 5 | 730.400 | 944.000 | 800 | 1.200 | 29, 000 |
