1997-10 Ford, Audi, Volkswagen, Seat GT1749V(S2) Turbo 713673-0006
Product Description
Part Number | 713673-5006S |
| Previous Version | 713673-0002, 713673-0003, 713673-0004, 713673-0005, 713673-5005S,Etc.... |
| OE number | 1121159, 038253019N, 038253019NV500, 038253019NV225, 038253019NV220,,Etc.... |
| Year | 1997-10-1 |
| Description | Volkswagen Golf IV TDI, Beetle TDI, Bora TDI |

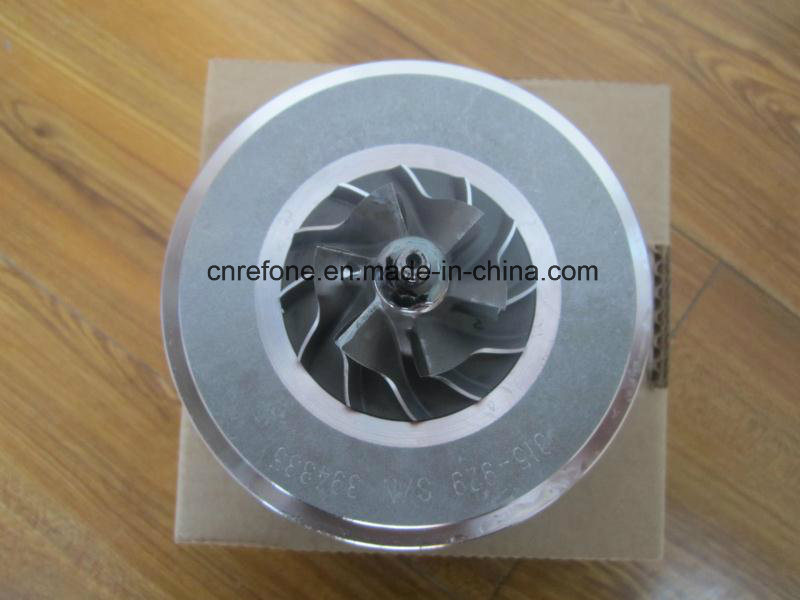

| CHRA | 703890-0002 (433395-0049, 703890-0131 703890-0151) |
| Turbo Model | GT1749V(S2) |
| Engine | AUY/AJM, BVK, AHF, AXR, ASV, BVK, ATD, AUY Euro III, Euro IV |
| Engine Manufacturer | VW |
| Displacement | 1.9L, 1896 ccm, 4 Cylinders, 8 Valves |
| KW | 74/85/116 |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing) | 1700 |
| Angle β (turbine housing) | 90 |
| Bearing Housing | 722282-0013 (703880-0002, 703882-0002, 722282-0060, 722282-0062) |
| Turbine Wheel | 434533-0007 (433257-0010, 434533-0009, 434533-0035, 434533-0059, 721161-0004)(Ind. 43. mm, Exd. 35.9 mm, Trm 69, 9 Blades) |
| Comp. Wheel | 434812-0001 (434812-0002) (Ind. 49. mm, Exd. 32. mm, Trm 45, Extended back disc type 6 blades) (1102015400) |
| Repair Kit | 732248-003/732245-0001 (1102015759) |
| Turbine Housing | VNT2 |
| Compressor Cover | 721486-0003/702883-0001 |
| Actuator | 434855-0015 $114.19 |
| Settings waste gate (pressure) | 0.224-0.229 bar |
| Settings Waste gate (lift shaft) | 0.5-4.0 mm |
| Replaced By | 733717-0001 |
Applications
2000-10 Audi A3 TDI AUY/AJM PD UI Euro-4
2000-10 Ford Galaxy TDI BVK/AUY/AJM PD UI Euro-4 VW
2000-10 Volkswagen Golf IV TDI, Beetle TDI, Bora TDI AUY/AJM PD UI Euro-4
2000-10 Skoda Octavia PD UI Euro-4
2000-10 Seat Alhambra TDI BVK/AUY/AJM PD UI Euro-4
2000-10 Volkswagen Sharan TDI BVK/AUY/AJM PD UI Euro-4
Company Information
Refone Auto Power Co., Ltd. Is a specialized company engaged in manufacturing turbocharger replacement, performance parts for turbo and which is a high-tech enterprise in researching, developing, manufacturing andmarketing turbocharger and turbo spare parts for automobile & engineering machine.
We have became one of the largest suppliers of turbochargers in China.
We are looking forward to establishing long-term cooperative relationship with you.
Our Service for Turbocharger
1. Fast Delivery
2. Gold Aftersale service: Take photos Sending back for testing Send new turbo to customer.
3. Warranty: 12 months
4:package for Turbocharger
1:Turbocharger in Mold foam
2:Turbocharger in Plastic bag
3:Strong Canton Pallet
4:The Package as the customer requirement.
Why choose us:
1) The products have passed the balancing test and the high speed CHRA balancing test,and the product has vocational certification .
2) We usually have some products in stock, in case of the clients purchase urgently. And if the order is minimal, we can also Delivery the goods on time.
3) We have our own factory to manufacture. That can control the quality during the procedure of making the goods. We confident that we are capable to meet your quality standard .
4) The competitive price from the own manufactory,Probably,You pay much attention to lower your cost for turbocharger.That is where i can be of help.
The Related Hot-Selling Size In EU
| Model | Turbo OEM Number | Application |
| GT1238S | 708838 | Cabrio 0,6 (MC01) YH Engine M160R3 3 Cyl |
| GT1749V(S1) | 713672 | 2000-06 Audi A3 TDI with PD UI Engine |
| GT1749V, GT1749MV, GTA1749MV | 713673 | Volkswagen: BEETLE, CADDY TDI, BORA TDI, SHARAN TDI |
| GTA1749MV(S2), GTA1749MV, GT1749MV, GT1749V (S2) | 724930-5009S | Volkswagen Golf V TDI, Jetta TDI, Passat TDI, Touran TDI BKD 2.0 TDI 4 Valve Euro-4 |
| K03 | 53039880123 | 2006-2011 Audi Car with TFSI Engine |
| K03 | 53039880118 | Peugeot 207, 308, Mini Cooper S |
| K04 | 53049880049 | Opel Astra |
| RHV4 | VB23 | 2008-12 Toyota 200 series Land cruiser C-Rail with 1VD-FTV VDJ76/78/79 Engine |
| TD03L4, TDO3L4-07T/VG | 49131-06007 | 2003-Opel Meriva A 1.7L CDTI Engine Z17DTH |
| GTA4502V | 758206-0006 | 2000-13 Detroit Diesel Truck with Series 60 Engine |
| HY55V | 40646945 | 2007- Iveco Truck with Cursor 13 Engine |
| GTB1749VK | 798128-5004S | Peugeot Boxer with Duratorq 2.2 Euro 5 Engine |
| BV45 | 53039880337 | 2010-12 Nissan Navara, Pathfinder with 2.5 dCi, YD25DDTI Engine |
| GTA1749V | 761618-5003S | Suzuki Grand Vitara DDiS with F9Q264-266 Engine |
| RHV4 | VJ36 | Repair Kit With MZ-CD Engine |
| GTA2052GVK | 757608-0001 | Chrysler 300C CRD with OM642 Engine |
| GTB1749VM, GTB1749VM(S3) | 757042-0015 | Audi A3 2.0L TDI (8P/PA) with DPF PQ35 Engine |
| TF035HL-10GK23-VG, TF035HL | 49135-07312 | Hyundai Santa Fe, Grandeur With D4EB Engine |
| BV39-1867DCG426.18AVAXC | 54399700030 | Nissan Qashqai 1.5L dCi Engine K9K Euro-4 |
| K03-2072GAA5.88KCAXK, k03-005 | 53039880029 | Audi A4 1.8T (B5) Engine Code APU, ARK |
| K03-2072CCB5.82KDAXD, K03 | 53039880055 | Nissan Interstar 2.5L dCI with G9U720 Engine |
