| Prod Model: |
TD04, TF035HM-13T-6 |
| Part Number: |
49135-05010 |
| OE Numbe: |
99450704, 7701044612, 99466793 |
| Shipping Way: |
TNT, DHL, FedEx, UPS, by Sea, by Air |
| Size: |
Standard Size |
| Balancing: |
High Than 150000 Rpm by Schenck Balancing Machine |
| Fuel: |
Diesel |
| Delivery Time: |
7-15 Days |
| Warrantly: |
12 Months |
| Engine Type: |
8140.23.3700, 8140, S9q700/702 |
| Displacment: |
2.8L, 2798 CCM, 4 Cylinders |
| Type: |
ETS Exhaust-Gas-Turbo-Super-Charger |
| Body Material: |
Iron |
| Certification: |
CE |
| Application: |
Iveco |
Product Description

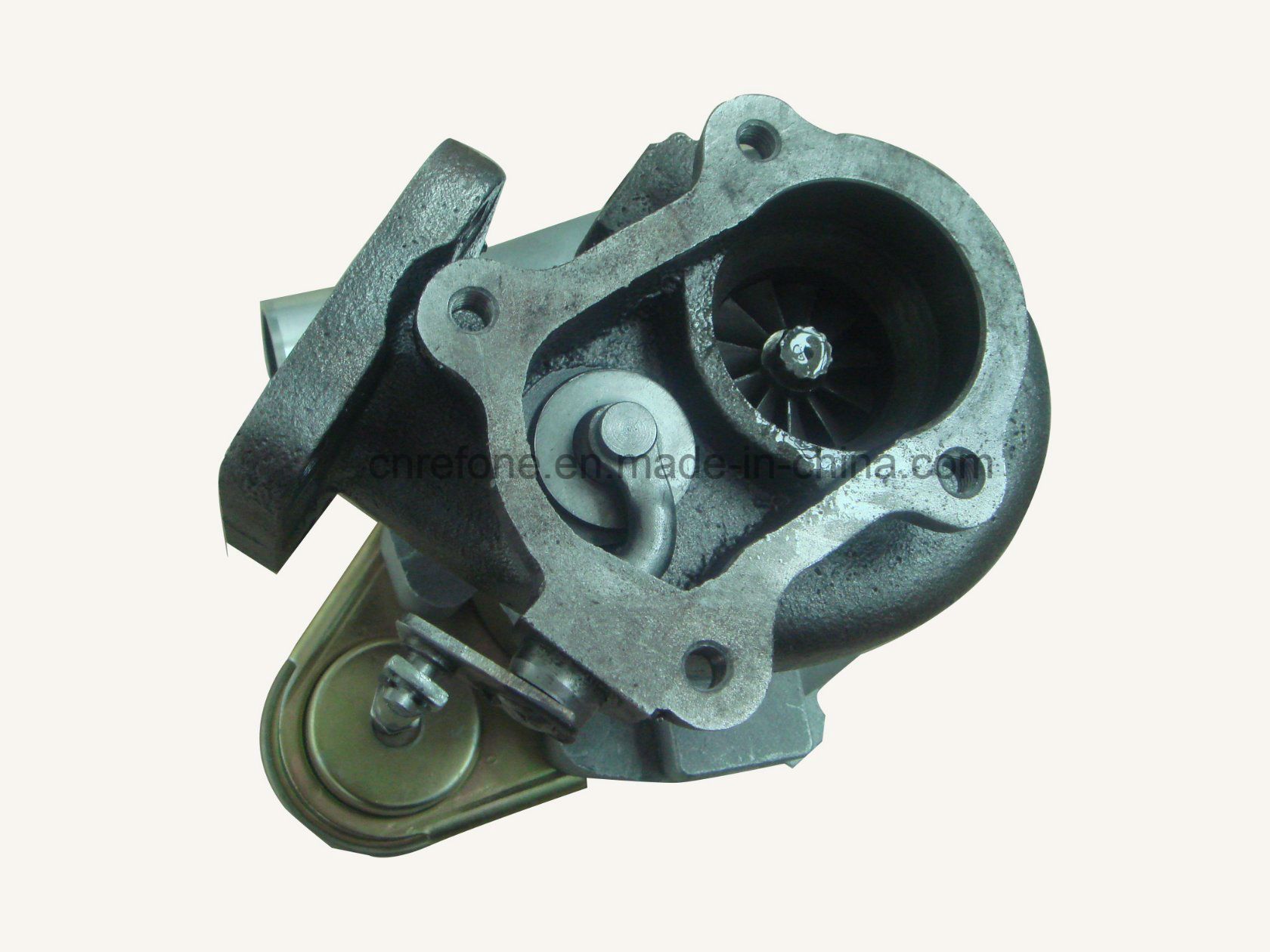

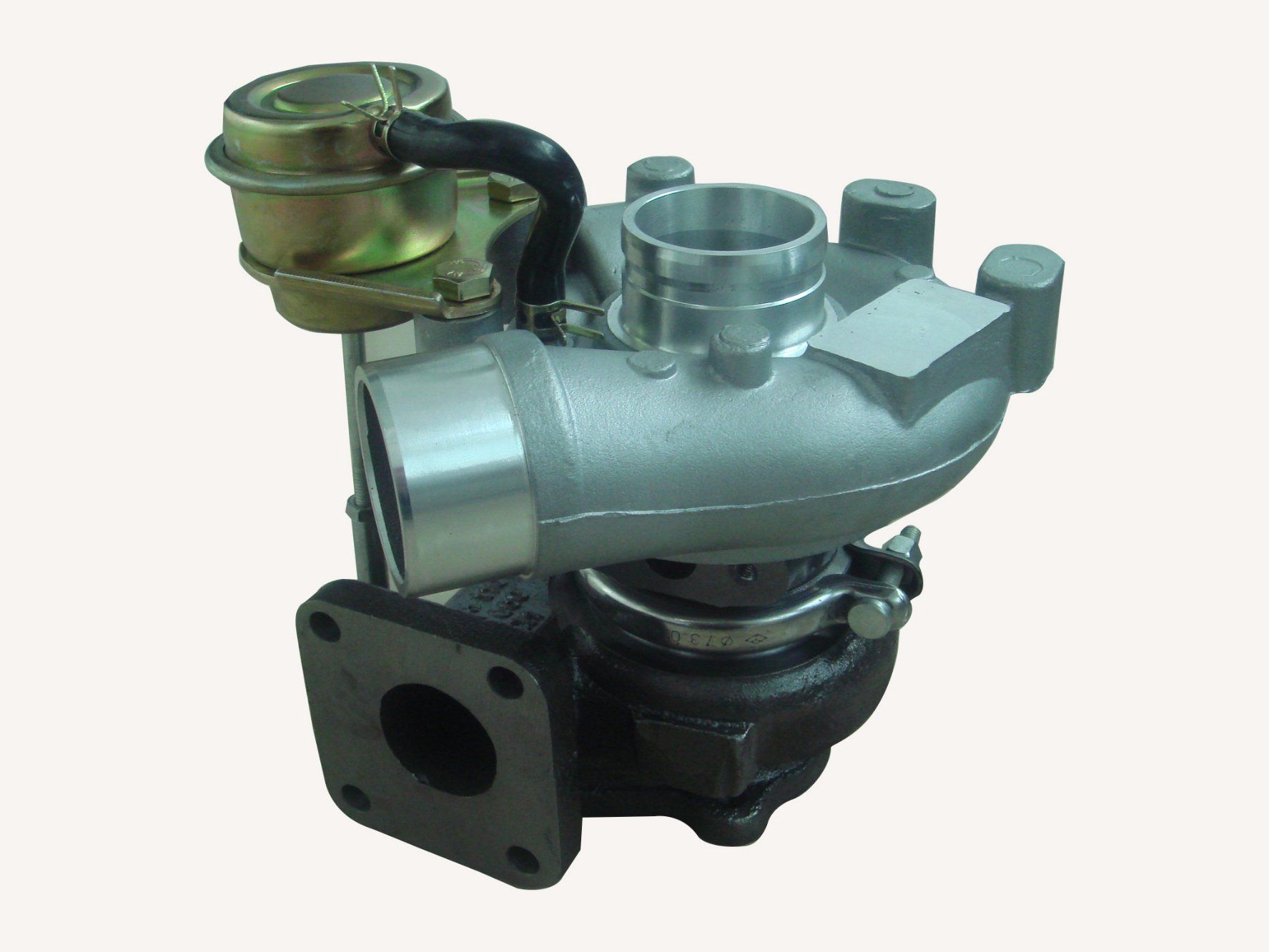

TF035HM 49135-05010 Iveco Daily II 2.8L Turbochargers for Commercial Vehicle
Products Descreption: | Part Number | 49135-05010 |
| Previous Part Number | 4913505010, 53149886445 |
| OE number | 99450704, 7701044612, 99466793 |
| Description | Commercial Fiat Iveco Daily II, Renault Master, Opel/Vauxhall Movano |
| Engine Code | 8140.43.3700 |
| Manufacturer Part Number | 49135-05010 |
| CHRA | 49135-08100 (49135-08101) $350.00 NEW IN STOCK |
| Turbo Model | TD04, TF035HM-13T-6 |
| Engine | 8140.23.3700, 8140, S9Q700/702 |
| Displacement | 2.8L, 2798 ccm, 4 Cylinders |
| KW | 90/122 |
| RPM Max | 3500 |
| Fuel | Diesel |
| Bearing Housing | 49177-25420 (Oil Cooled) NEW IN STOCK |
| Turbine Wheel | 49135-30100 NEW IN STOCK |
| Comp. Wheel | 49135-00015 NEW IN STOCK |
| Back plate | 49135-00044 NEW IN STOCK |
| Heat shield Number | 49170-19100 NEW IN STOCK |
| Repair Kit | 49135-TFO35 NEW IN STOCK |
| Turbine Housing | 49135-15000 |
| Compressor Cover | 49135-00080 |
| Turbine Housing AR | 6 |
| Settings Wastegate (pressure) | 1.160/1.300 bar |
| Settings Wastegate (lift shaft) | 1.00/5.00 mm |
| Actuator | 49135-18884 |
| Gasket (turbine inlet) | 210338 |
| Gasket (turbine outlet) | 210350 |
| Gasket (oil outlet) | 210243 |
| NOTE | Intercooler |
| Manufacturer | Borg Warner - 3K - Schwitzer |
| Replaced By | 53149886445 |
Images:
Application:1996-99 Iveco Daily II 2.8L Engine 8140
Package:
1. Mold foam
2. Plastic bag
3. Strong Canton Pallet
Please don't worry about package, we promise that our turbocharger reach you intactly.
Shipping:1)TNT,DHL,FEDEX,UPS,EMS
2)By sea ,by air
3)Take your requirements into consideration
Company Introduction:Refone AUTO POWER is committed to delivering the highest standard of quality and safe products and services to our customers.

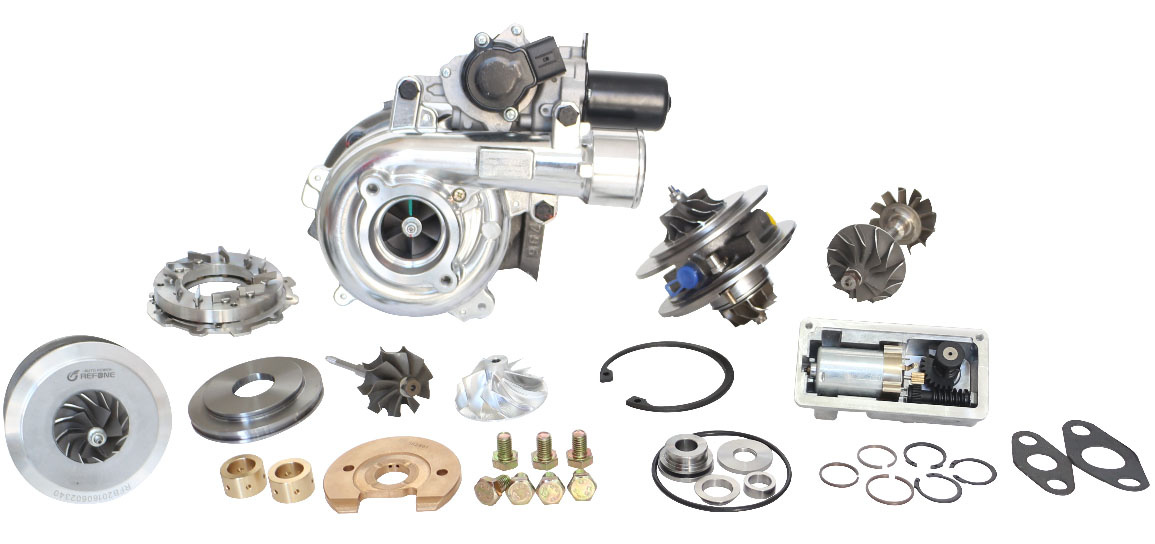

Refone auto power is an outstanding corporation manufacturing and selling all kinds of high quality turbocharger and spare parts, such as Shaft & wheel, Compressor wheel, Cartridge (CHRA), Repair kits, Thrust collar & spacer, Journal bearing, Thrust bearing, Piston ring, Compressor housing, Compressor housing, Bearing housing, Turbine housing, Turbine housing adapter, Back plate (seal plate, insert), Heat shield, Actuator, Oil deflector, V-band, Shaft nut, Gasket and so on.
Advantages:
1. Quality Warranty: 1 Year
2. High speed balancing tested.
3. Provide customized service.Quality Control:
Final Inspection:
After-sales Service:1. Take photos, sending back for testing.
2. Send new turbo to customer.Contact Us:Please feel free to contact us,will reply within 24 hours.
Lisa Li
TEL: +86 551 65617152
FAX: +86 551 65613152
Website: www.cnrefone.com
Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.
Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.

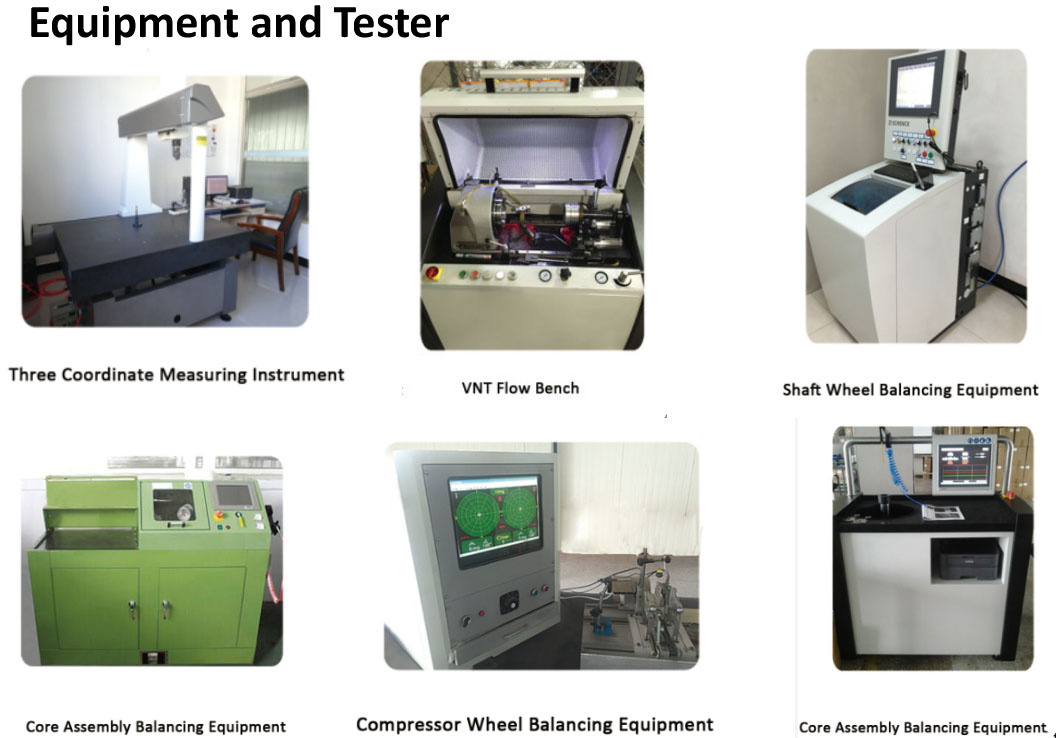

The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.
Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
