TF035HM-13T-6 turbocharger 49135-05010 99450704, 7701044612, 99466793 53149886445 for Iveco Daily II 2.8LPart Number | 49135-05010 |
Previous Part Number | 4913505010, 53149886445 |
OE number | 99450704, 7701044612, 99466793 |
Description | Commercial Fiat Iveco Daily II, Renault Master, Opel/Vauxhall Movano |
Engine Code | 8140.43.3700 |
Manufacturer Part Number | 49135-05010 |
CHRA | 49135-08100 (49135-08101) |
Turbo Model | TD04, TF035HM-13T-6 |
Engine | 8140.23.3700, 8140, S9Q700/702 |
Displacement | 2.8L, 2798 ccm, 4 Cylinders |
KW | 90/122 |
RPM Max | 3500 |
Fuel | Diesel |
Bearing Housing | 49177-25420 (Oil Cooled) |
Turbine Wheel | 49135-30100 |
Comp. Wheel | 49135-00015 |
Back plate | 49135-00044 |
Heat shield Number | 49170-19100 |
Repair Kit | 49135-TFO35 |
Turbine Housing | 49135-15000 |
Compressor Cover | 49135-00080 |
Turbine Housing AR | 6.0 |
Settings Wastegate (pressure) | 1.160/1.300 bar |
Settings Wastegate (lift shaft) | 1.00/5.00 mm |
Actuator | 49135-18884 |
Gasket (turbine inlet) | 210338 |
Gasket (turbine outlet) | 210350 |
Gasket (oil outlet) | 210243 |
NOTE | Intercooler |
Manufacturer | Borg Warner - 3K - Schwitzer |
Replaced By | 53149886445 |
Applications
1996-99 Iveco Daily II 2.8L Engine 8140
TENZUATP Turbocharger Details |
Material: | Turbine Material:K18 Ni-Base Superalloy Turbine Housing:Iron+ Ni+Mo Compressor Housing Material:Cast Aluminium Shaft Material:42CrMo4 |
Condition: | Brand New |
Warranty: | 18 Months |
Packing | 1.Neutral Strong carton with foams 2.Customized box |
Lead time: | 7-25days |
Sample or small order | Accepted |
Country of origin | People's Republic of China |
Photos:

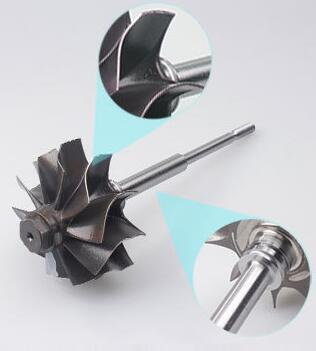

Material Description | Axle : Use good wearing resistance 42 chrome molydbenum material for turbine wheel axle,most supplier use common material,which is easily abrased soon Turbine wheel: Choose high hardness K18 turbine wheel,many supplier use less cost K13 material,which is easy to deform and break down under constant increasing power and high temperature. |

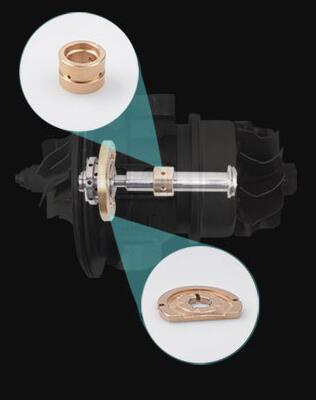

| Bearings:
High hardness H26Cu thrust bearing and floating bearing processed by high precision CNC Technology. Strengthen the toughness and not easy to break. Powder Metallurgy Technology: Easy to brake. |
Packing:
Transportation:
