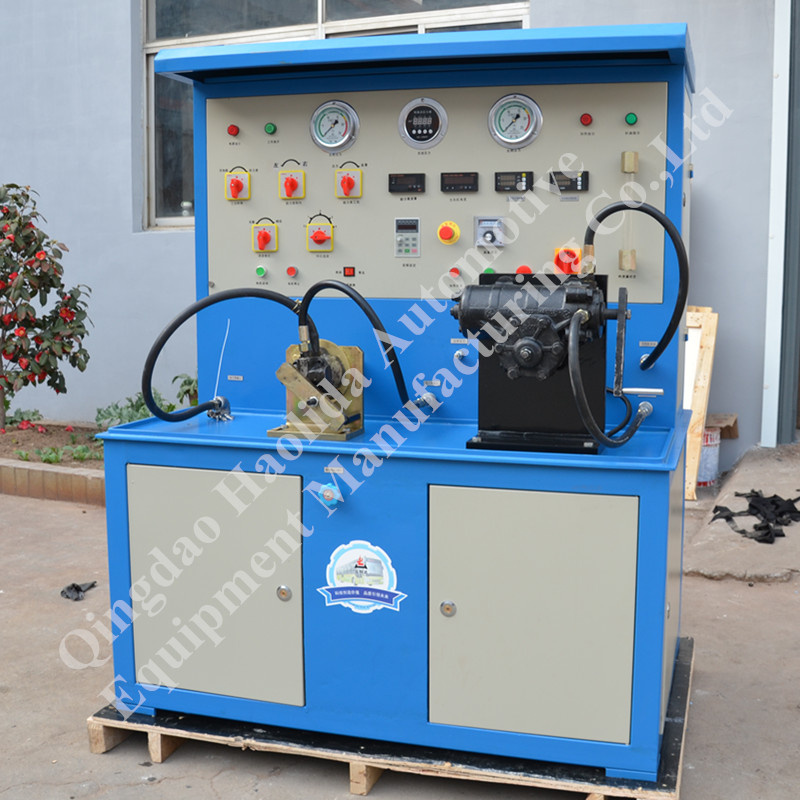

QFY-3 model Testing Equipment of Hydraulic Traversing Mechanism
General introduction:
This steering gear and power steering pump test bench is used for testing steering wheels and power pumps of various models trucks in steering system.
Advantages:
1.It uses variable frequency speed regulation
2.It displays result by pointer instruments.
3.It uses temperature control oil tank, can pre-set the oil temperature.
4.It adopts high-precision pressure regulator valve and driver.
5.It is with indicator lamp following each step and warn you the problems.
6.It is easy to learn and operate.
7.The valves matched with the steering gear valves can be made as customers' requests, quick test no need to assemble totally.
Test items:
1.Pressure of power steering pump, can preset the rated pressure, automatic unloading
2.Oil flow of power steering pump
3.Revolving speed of power steering pump
4.Input and output leakage of steering gear
5.Free stroke of steering gear
6.Working angle of steering gear
7.Performance of conversion valve assembly of steering gear
Technical parameter:
Model no | QFY-3 |
| Language | English, etc |
| Material | Metal plate |
| Painting | Powder painting, durable and beautiful |
| Color | Blue |
| Voltage | 380V 50Hz |
| Motor power | 7.5KW |
| Frequency converter power | 7.5KW |
| Speed | 0-2400rpm(frequency regulation) |
| Direction | Clockwise, anti-clockwise |
| Power of heater | 1000W 220V |
| Rated heating temperature | 40ºC(adjustable) |
| Working pressure range of power pump | 0-18Mpa (adjustable) |
| Accessories: |
| Accessory wires, etc. |
| Others you may want to know: |
| MOQ | 1set |
| Warranty period | 12 months |
| Payment term | T/T 50% in advance, the balance should be paid before delivery (negotiable) |
| Delivery time | 35 days after receiving downpayment |
| HS code | 90312000.90 |
| Packing sizes | 1560*1050*1870mm=3.06CBM |
