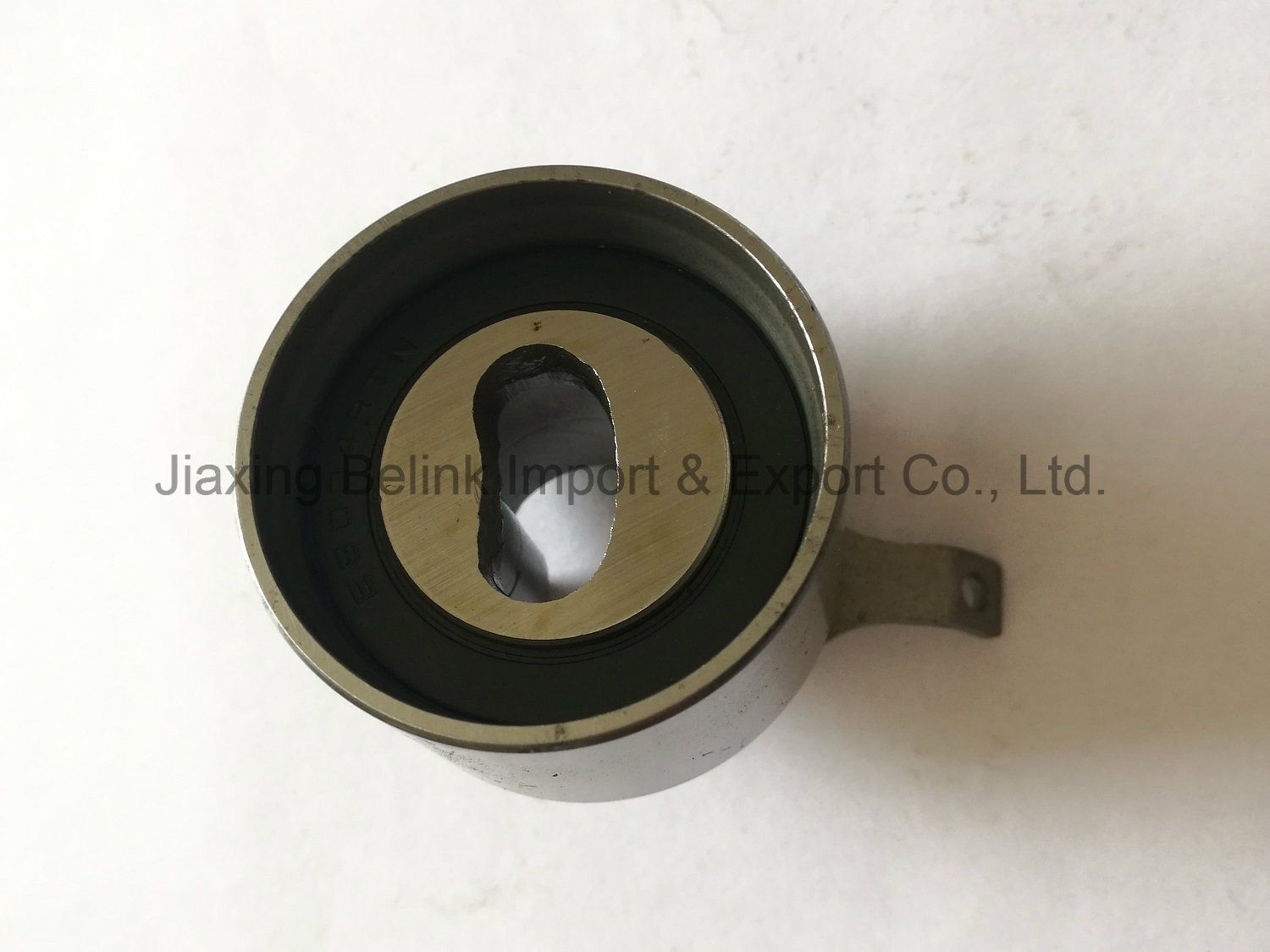

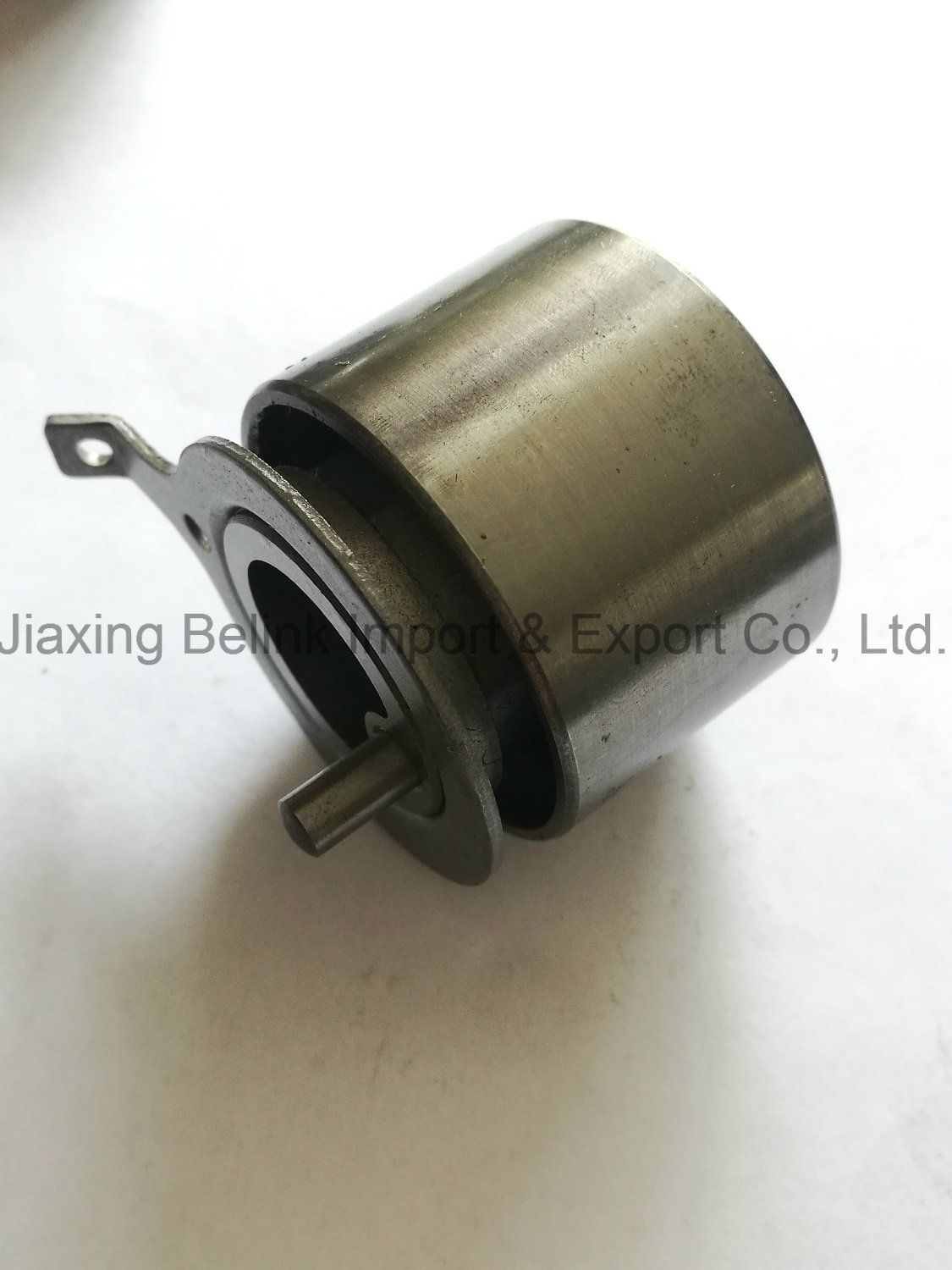

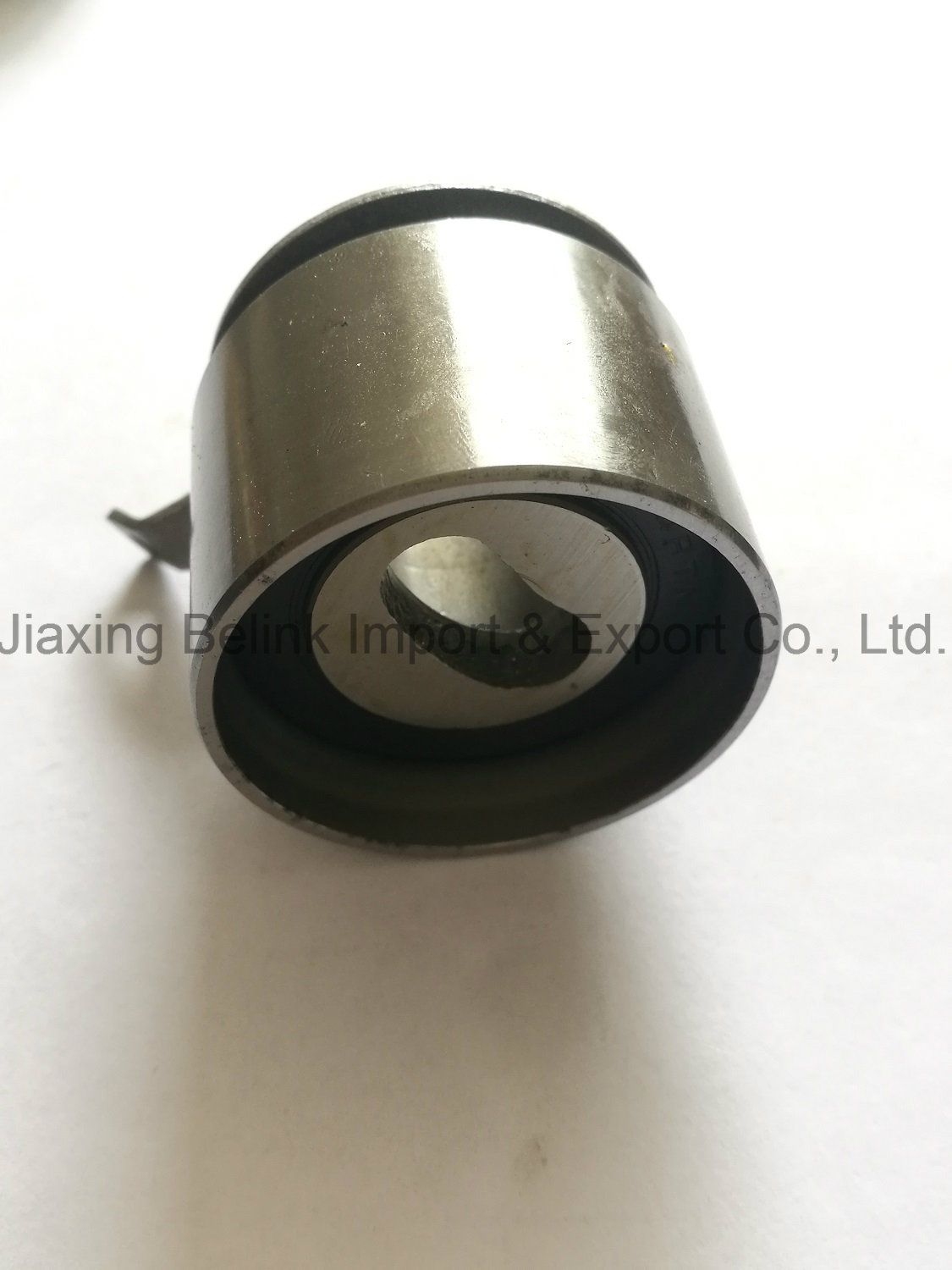

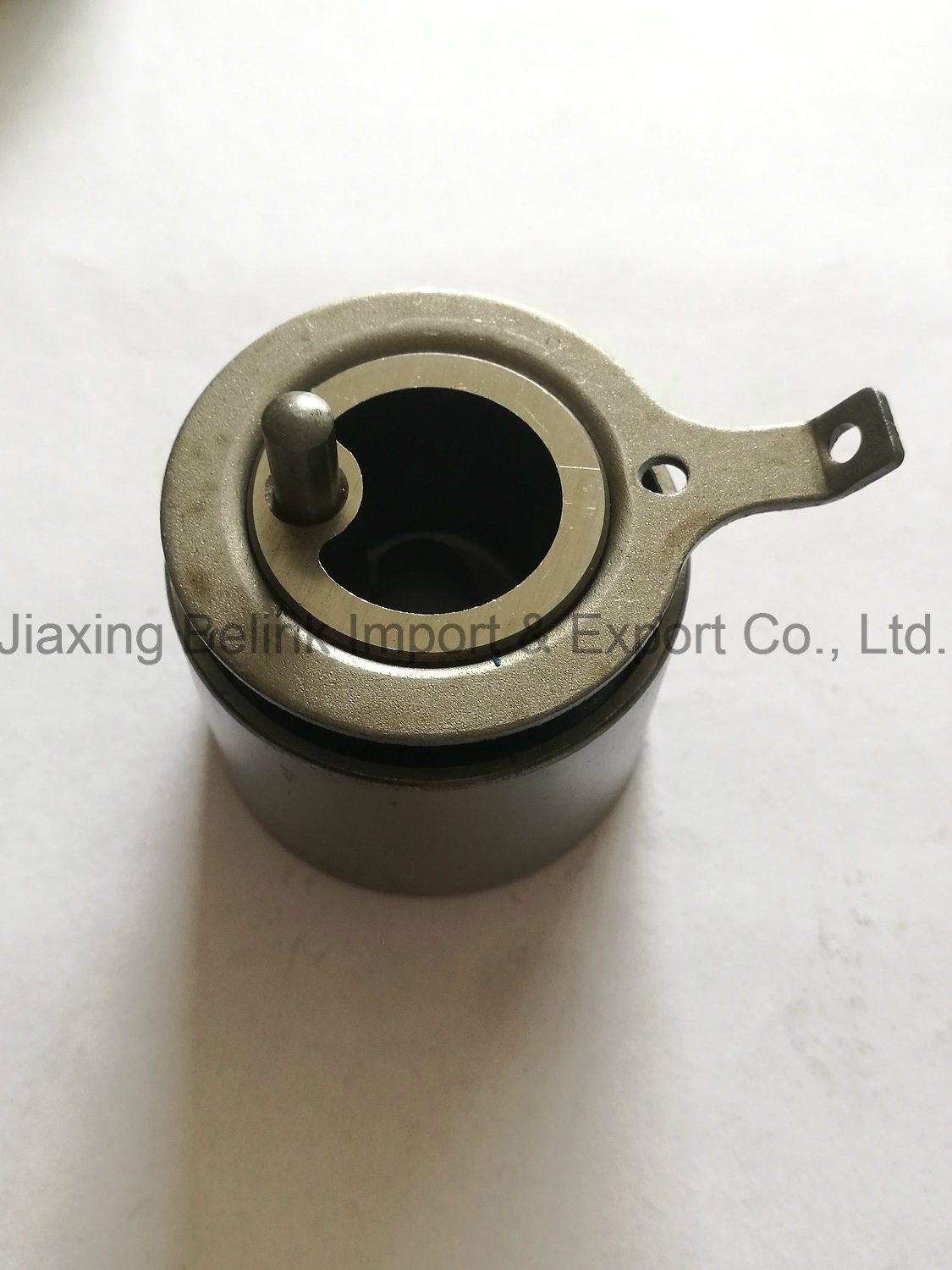

Tensioner Pulley Tensioner Bearing Auto Bearings Auto Parts
| Price: |
US $ 2.45-2.94/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
High reliability has been achieved by special grease and high performance seal. We offers a wide line of bearings to meet the needs of every type of belt and layout...
TensionerT and Idler
This bearing is located in the front of an internal combustion engine. It provides tension to the belt which drives from the crankshaft, to the cam shaft, alternator, air compressor, power steering pump, and water pump. It must handle high temperatures, high-speed rotation, and belt vibration because of contiguity in the engine used in order to make the direction of a belt change. These bearings are designed against different specification from normal deep groove bearings. These bearing are divided roughly into two types and identified by the usage, respectively.
1) Tensioner bearing
Bearing which applies tension to the drive belt, and prevents slack.
2) Idler bearing
Bearing which affects a change in the angle of direction which a belt runs or to adjust contact width with a pulley.
Structure
Sealed groove bearing is usually used and it also has built-in heat-resistant grease, a seal, and retainer and the structure can withstand a temperature change or change of belt tension when the car is running.
1)Tensioner bearing
The rotation center is movable in order to give tension to the belt.
2) Idler Bearing
Unitized with the pulley.
Product Function
The following are important functions of these indispensable parts for the smooth drive of the belt system.
1)To add initial tension by using the pivot hole and eccentric hole which absorb tension changes in the timing belt where the temperature changes when the engine is running.
2)To prevent any belt-skip, which would cause mis-matching of the valve timing between crank shaft and cam shaft
Construction of Tensioner and Idler pully bearing's location in working
| SKF NO | NTN | NSK |
| VKM12380 | VKM33002 | VKM75006 | VKM81004 | JPU60-71+JF129 | 57TB0505B01 |
| VKM12151 | VKM71000 | VKM75008 | VKM81100 | JPU60-283+JF485 | 62TB0813B01 |
| VKM11010 | VKM71401 | VKM75033 | VKM81200 | JPU60-216+JF391 | 50TB0526B01 |
| VKM13244 | VKM24212 | VKM75044 | VKM81201 | JPU60-257 | 62TB0520B01 |
| VKM13100 | VKM33004 | VKM75100 | VKM84000 | JPU57-54+JF574 | 50TB0101 |
| VKM13201 | VKM33017 | VKM75101 | VKM84201 | JPU60-215 | 62TB0629B06 |
| VKM13240 | VKM38001 | VKM12001 | VKM84600 | JPU55-54 | 62TB0629B04 |
| VKM13200 | VKM38004 | VKM12010 | VKM84601 | JPU55-002B-1 | 62TB0103 |
| VKM14000 | VKM38012 | VKM12012 | VKM85000 | JPU58-1+JF181 | 57TB0609B01 |
| VKM13241 | VKM71001 | VKM12101 | VKM23120 | JPU60-129+JF337 | 70TB0603 |
| VKM11000 | VKM71002 | VKM12630 | VKM23122 | JPU52-159 | 50TB0112B01 |
| VKM12200 | VKM71003 | VKM13200 | VKM23130 | JPU52-131 | 56TB0503B01 |
| VKM14100 | VKM71005 | VKM22242 | VKM24213 | JPU42-17+JF417 | 52TB0529B01 |
| VKM14103 | VKM71007 | VKM22630 | VKM24214 | JPU50-6+JF265 | 57TB3705B01 |
| VKM14105 | VKM71012 | VKM23122 | VKM33023 | JPU52-157 | 57TB3701 |
| VKM14201 | VKM71014 | VKM23244 | VKM36022 | JPU52-128+JF434 | 56TB0602B01 |
| VKM14210 | VKM71100 | VKM26100 | VKM36031 | JPU52-111+JF434 | 60TB041B02 |
| VKM14301 | VKM71101 | VKM36014 | VKM76200 | X3-JPU60-27 | 60TB026B02 |
| VKM15210 | VKM71200 | VKM38004 | 13504-87301 | JPU50-69 | 60TB062B01 |
| VKM15215 | VKM71201 | VKM73600 | 13505-87303 | JPU50-66 | 52TB28028\B01 |
| VKM16000 | VKM71202 | VKM74501 | 2108-1006210 | 5JPU60-124+JF183 | 60TB0637 |
| VKM16001 | VKM71400 | VKM75108 | 2110-1041056 | JPU42-18 | 60TB039B09 |
| VKM16101 | VKM71401 | VKM75130 | 2112-1006120 | JPU50-80+JF513 | 60TB039B01 |
| VKM16112 | VKM71404 | VKM75144 | 2112-1006135 | JPU58-55 | 60TB048B01 |
| VKM16210 | VKM72000 | VKM75601 | 2112-1006135-01 | JPU58-015A-3 | 60TB041B12 |
| VKM22151 | VKM72004 | VKM75612 | B660-12-700F | JPU58-58 | 60TB041 |
| VKM22380 | VKM73000 | VKM75613 | F-212423 | JPU60-71+JF121 | 55TB0520B01 |
| VKM23240 | VKM73005 | VKM75615 | F-224134 | JPU60-260+JF397 | 50TB0524B03 |
| VKM23241 | VKM73011 | VKM75616 | F-226239.2 | JPU60-163+JF410 | 70TB0603 |
| VKM24100 | VKM73101 | VKM76001 | F-229515 | JPU55-30 | 52TB0514B01 |
| VKM24107 | VKM73112 | VKM76102 | F-231137 | JPU50-003A-1 | 54TB0507B01 |
| VKM24210 | VKM74001 | VKM76103 | F-140071 | NEP52-019A-1P | |
| VKM24211 | VKM74001 | VKM76202 | F-125135.05 | NEP57.6-002B-1P | |
| VKM25212 | VKM74004 | VKM76203 | F-123259 | NEP62-008B-1P | |
| VKM26020 | VKM74200 | VKM77002 | F-231338 | NEP57-013A-1P | |
| VKM26101 | VKM74201 | VKM77300 | F-233879 | NEP51-OO2B-6 | |
| VKM26102 | VKM74501 | VKM77401 | F-140072 | NEP62-011A-1P | |
| VKM26114 | VKM74600 | VKM77500 | OK247-12-711 | NEP52.8-002A-1P | |
| VKM26123 | VKM75000 | VKM79001 | OK551-12-740A | NEP54-002-1P | |
| VKM26125 | VKM75001 | VKM80000 | | | |
| VKM26211 | VKM75004 | VKM81001 | | | |
| VKM28000 | VKM75005 | VKM81002 | | | |
Five structure type as follows:
Nylon Pulley type;
Integrated type;
Steel Pulley with bracket type:
Steel Pulley Type;
Integrated with bracket type;
More timing belt tensioner bearings, pulley idler bearings, welcome to contact with us in details.
| Prod Model: |
E6004RTN |
| Seal: |
Rubber |
| With Cage: |
Yes |
| Type: |
Tensioner Bearing |
| Material: |
Chrome Steel |
| Tolerance: |
P0 |
| Certification: |
ISO9001 |
| Clearance: |
C0 |
| ABS: |
Without ABS |
| Brand: |
Kwl |
| Application: |
Many Cars |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
