Tdo4l-12t2-Vg/Td04 49377-00510 Turbocharger Cartridge for H9fa, H9fa V184 2.4 Tdci

Name: Tdo4l-12t2-Vg/Td04 49377-00510 Turbocharger Cartridge for H9fa, H9fa V184 2.4 Tdci
Brand: ibuyautoparts.com
SKU: 814944015
Availability: InStock
Rating: 4.5 (86 reviews)

Price:	US $ 68/Piece
Min Order:	6/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TDO4L-12T2-VG/TD04
Fuel:	Diesel
Chra:	49377-09510
Turbo OE Number:	1349805, 1327526, 4c1q6k682be, 4c1q6k682bd
Displacement:	2.4L, 2400 CCM, 4 Cylinders
Kw:	99/135
Type:	ETS Exhaust-Gas-Turbo-Super-Charger
Body Material:	Iron
Certification:	ISO9001
Brand:	Refone

Product Description

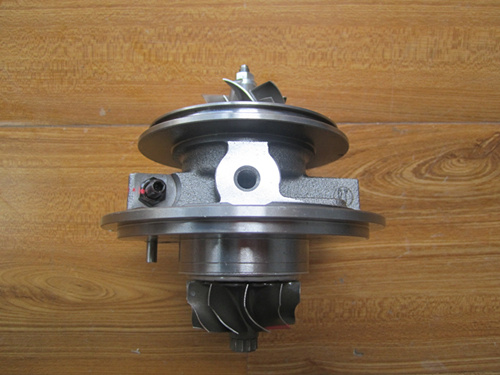

ΔTDO4L-12T2-VG/TD04 49377-00510 turbocharger cartridge for H9FA, H9FA V184 2.4 TDCI

Part Number	49377-00510
Previous Version	4937700510, 49377-00500
OE number	1349805, 1327526, 4C1Q6K682BE, 4C1Q6K682BD
Year	2004-06
Description	Commercial
CHRA	49377-09510
Turbo Model	TDO4L-12T2-VG, TD04
Engine	H9FA, H9FA V184 2.4 TDCI 99 kW
Engine Manufacturer	Ford
Displacement	2.4L, 2400 ccm, 4 Cylinders
KW	99/135
Fuel	Diesel
Bearing Housing	49377-28000 (1401404454)
Comp. Wheel	(Ind. 37.82, mm, Exd. 45.99 mm, 6+6 Blades)
Back plate	49135-15405/49135-00044 (1401635300)
Heat shield Number	49170-19100 (1401404342, 1401404340)
Nozzle Ring	$215.98
Repair Kit	49177-80410 (1401404755)
Turbine Housing AR	VG
Gasket (turbine inlet)	210669
Gasket (turbine outlet)	210590
Gasket (oil outlet)	210553 (2455001)
Gasket (turbine inlet) (compressor housing)	210848
Manufacturer	Mitsubishi

Applications
2004-06 Ford Commercial Transit TDCi with H9FA Engine

Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive

Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support

Established in 2011, Refone Auto Power Co., Ltd is a professional manufacturer of aftermarket turbocharger and turbo parts.

Our factory covers 5000 square meters, focusing on turbos and turbo components research, development and manufacturing. The capacity of manufacturing is 13000pieces complete turbochargers, 28000pieces Core Assemblies and 400000 units for Turbo Rebuilding.

The world class leading CNC machines, assembly production lines, inspecting instruments are imported from UK, Germany and Italy.

Over 95% of the turbo products are exported to the international markets, espcially to Europe and America. We won serveral famous customers from Poland, Italy, America, Germany, Brazil.
