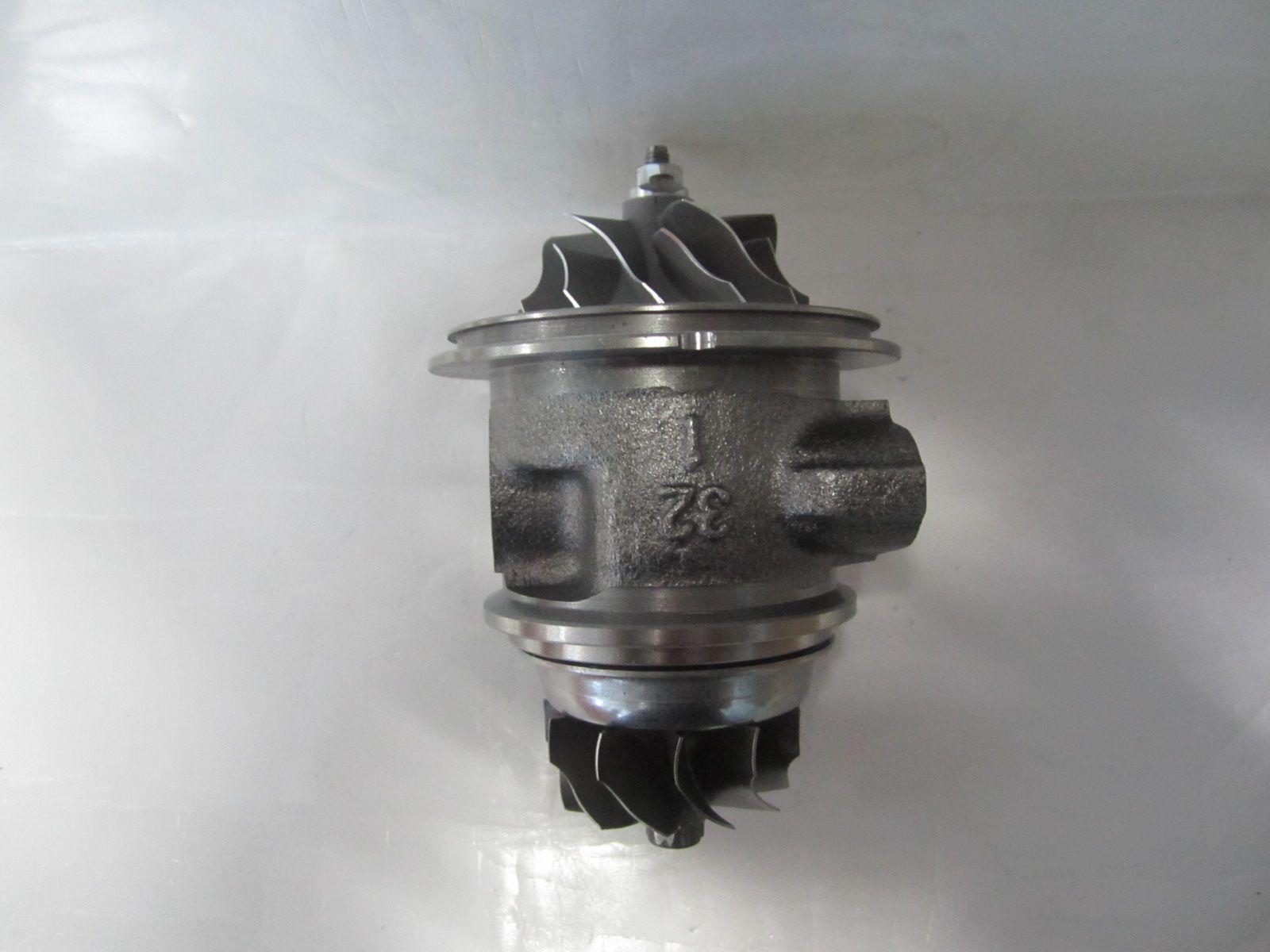

Td03L4-09gk-3.3 49131-05400 Turbocharger Cartridge for Transit Tdci 100, 115, 120

Prod Model:	TD03L4-09GK-3.3
Engine:	Jxfc/Jxfa, Phfa/Phfc, Puma, V348 2.4 74/85 Kw
Fuel:	Diesel
Chra:	49131-08610 (49131-08600, 1401403901, 1000050133)
Turbo OE Number:	6c1q-6k682-De, 6c1q6k82de, 6170432, 1449608
Displacement:	2.4L, 2400 CCM
Kw:	99114/119
Type:	ETS Exhaust-Gas-Turbo-Super-Charger
Body Material:	Iron
Certification:	ISO9001
Brand:	Refone

Product Description

Δ TD03L4-09GK-3.3 49131-05400 turbocharger cartridge for Transit TDCi 100, 115, 120


Part Number	49131-05400
previous Part Number	4913105400, 49131-05401 49131-05402
OE number	6C1Q-6K682-DE, 6C1Q6K82DE, 6170432, 1449608
Year	2006-
Description	Transit TDCi 100, 115, 120
CHRA	49131-08610 (49131-08600, 1401403901, 1000050133)
Turbo Model	TD03L4-09GK-3.3
Engine Manufacturer	Ford
Engine	JXFC/JXFA, PHFA/PHFC, Puma, V348 2.4 74/85 kW
Displacement	2.4L, 2400 ccm
KW	99114/119
Fuel	Gasoline
Bearing Housing	49131-20450
Actuator	49131-18980
Settings waste gate (pressure)	1.560-1.620/1.790-1.870 Bar
Settings Waste gate (lift shaft)	1.00/5.00 mm
Gasket (turbine inlet)	210868
Gasket (oil outlet)	210243
Replaced by	49131-05403, 49S31-05452
Manufacturer	Mitsubishi

Applications
2006- Ford Transit TDCi 100, 115, 120 Engine Puma

Δ Why choose us

1) The products have passed the balancing test and the high speed GHRA balancing test

2) We usually have some products in stock, in case of the clients purchase urgently. And if the Order is minimal, we can also delivery the goods on time.

3) The clients can have their own forwarders to ship the products to the destination

4) Feature like K18Ni-Fe rotor shaft used. That can make the product becomes sturdy and Durable

5) We have our own factory to manufacture. That can control the quality during the procedure Of making the goods. Besides the price is at factory price, competitive



Δ Our service

1. Quality Warranty: 12 months for official orders

2. Developing all turbo or turbo parts according to customer's samples

3. Quick delievery and reliable aftersale support
