Taper Roller Bearing Non-Standerd Bearing Jlm506849A/Jlm506811

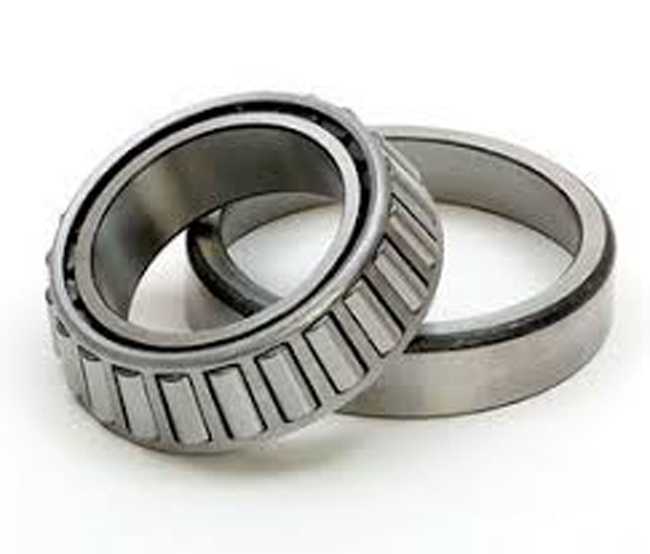

Name: Taper Roller Bearing Non-Standerd Bearing Jlm506849A/Jlm506811
Brand: ibuyautoparts.com
SKU: 825917015
Availability: InStock
Rating: 4.5 (149 reviews)

Price:	US $ 0.4/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

We:
Guarantee the Quality standard ASSURED. In contract.
Guarantee the Delivery time as ASSURED (MAX. 40D)
Guarantee the Material as ASSURED
Guarantee the Package As ASSURED

We Service:
1,High quality
Only offer high quality products, long time, low noisy, high precision! Customer's approval is our ultimate goal!
2,Deliver On Time
Rich stock and strong capability of production, never fail customer with delivery time!
3,After-Sale Service
Full responsibility for the after-sale cargo, always being customer's reliable partener in China!

Hot sale factory suppliers Taper roller bearing Delivery Details:

Delivery Terms	1. By Express
	2. By Air Cargo
	3. By Ocean Shipping
Delivery Time	3-5 days according the quantity

Hot sale factory suppliers Taper roller bearing Packaging :

1. Industrial packaging

2. Original Box

3. Original Box + Carton

4. Original Box + Carton + Pallet

5. As your Request

We can also provide products as below

No.	Bearing type	Dimension(mm)							Rated dynamic load Cr(kN)	Rated static load Cr(kN)	Weight (kg)
No.	Bearing type	d	D	B	C	T	Rmin	rmin	Rated dynamic load Cr(kN)	Rated static load Cr(kN)	Weight (kg)
1	TD-CR0105/CR0103	12	27	12	11	13	0.5	0.3	12.0	12.1	0.035
2	C101	15	24.988	10.785	8.5	10.998	0.8	1.3	15.1	15.4	0.050
3	C102(CBK257)	15	42	13.5	10	13	1	1.5	20.7	23.7	0.095
4	639211/639213	15	42	13.5	10	13	1.2	1.3	17.8	18.7	0.095
5	TD-CR02589/0256	15	30	12	11	13	1	0.3	13.7	14.7	0.040
6	TD-RV-70FC	15	35	14.25	11.75	15	1	0.3	18.2	19.1	0.068
7	11590/11520	15.875	42.862	14.288	9.525	14.288	1.5	1.5	17.1	17.9	0.102
8	TR0305C-9	17	47	15	11	15.25	1	1	25.8	27.8	0.135
9	LM11749/LM11710	17.462	39.878	14.605	10.668	13.843	1.3	1.3	23.0	23.2	0.084
10	LM11749/LM11710/P6	17.462	39.878	14.605	10.668	13.843	1.3	1.3	23.0	23.2	0.084
11	LM11949/LM11910	19.05	45.238	16.637	12.065	15.494	1.3	1.3	27.5	29.5	0.120
12	LM11949/LM11910N	19.05	45.238	16.637	12.065	15.494	0.65	0.65	27.5	29.5	0.120
13	LM11949/LM11911N/P6	19.05	45.238	16.637	12.065	15.494	0.65	0.65	27.5	29.5	0.120
14	21075/21212	19.05	53.975	21.839	15.875	22.225	1.5	2.3	42.4	41.6	0.252
15	TRD003	20	43	12	11	13.25	2.5	1.5	21.6	23.7	0.086
16	TO-R20-17	20	42	15	12	15	1	0.5	24.6	28.2	0.098
17	TD-ST2047B/BYRI	20	47	15	11.5	14.8	0.8	0.5	29.9	37.1	0.136
18	LM12748/LM12710	21.43	45.237	16.637	12.065	15.494	1.3	1.3	28.0	32.0	0.120
19	M12649/M12610	21.43	50.005	18.288	13.97	17.526	1.3	1.3	37.5	40.0	0.172
20	E1003020A/EC12771	21.5	47	14	10.45	15.25	1	1	30.5	31.0	0.119
21	C508	21.986	41	14.684	11.4	14.48	0.8	0.8	22.5	28.0	0.085
22	LM12749/LM12710	21.987	45.237	16.637	12.065	15.494	1.3	1.3	28.0	32.0	0.116
23	LM12749/LM12711	21.987	45.975	16.637	12.065	15.494	1.3	1.3	28.0	32.0	0.121
24	KJL22349F/JL22310	22	41	14.4	11.4	14.4	0.8	0.8	20.9	27.8	0.079
25	JL22349F/10	22	41	14.4	11.4	14.4	0.8	0.8	20.9	27.8	0.084
26*	XC06536CD/JXC06536DC	22	45	16.6	12	6.5	1.5	1.5	29.6	33.8	0.115
27	NP880810/NP419272	22.225	50.8	20.168	12.45	14.1	2	1.8	25.0	28.5	0.161
28	0787X/07210X	22.225	50.81	14.26	12.7	15.011	1.5	1.5	25.6	29.0	0.147
29	639175/639172	23	51.994	14.26	12.7	15.011	3	1.3	26.2	31.4	0.153
30	C183(CBK258)	23	52	14.26	12.7	15.011	3	1.5	25.9	31.2	0.153
31	ST2358	23	58	16.5	15	18.25	0.8	0.8	35.3	42.3	0.242
32	ST2358/P5	23	58	16.5	15	18.25	0.8	0.8	35.3	42.3	0.242
33	NP481266/NP821971	23	58	15.3	14	18.4	1.3	1.3	33.7	36.8	0.229
34	1779/1729	23.812	56.896	19.837	15.875	19.367	0.8	1.3	43.7	47.8	0.236
35	R25-33g	25	52	17	15	18.25	1	1	38.9	41.8	0.179
36	07100/07196	25.4	50.005	14.26	9.525	13.495	1	1	25.6	29.0	0.117
37	L44643/L44610	25.4	50.292	14.732	10.688	14.224	1.3	1.3	27.0	32.0	0.126
38	L44643/L44610L	25.4	50.292	14.732	10.688	14.224	1.3	1.3	25.6	32.8	0.135
39	07100S/07210X	25.4	50.81	14.26	12.7	15.011	1.5	1.5	25.6	29.0	0.134
40	15101/15245	25.4	62	20.638	14.288	19.05	0.8	1.3	42.7	50.9	0.295
41	NP167243/NP570491	25.4	62	19.431	14.732	19.431	1.5	1.5	43.3	50.3	0.294
42	23100/256	25.4	65.088	21.463	15.875	22.225	1.5	1.5	48.1	52.2	0.368
43	M84548/10	25.4	57.15	19.431	14.732	19.431	1.5	1.5	43.3	50.3	0.243
44	C107(CBK171)	26	52	14.26	12.7	15.011	2.9	1.5	25.9	31.2	0.140
45	639154/Q	26	57.15	17.462	13.495	17.462	3.6	1.6	38.1	48.6	0.213
46	639154X	26	57.15	17.462	13.495	17.462	3.6	2	38.1	48.6	0.213
47	639154Y	26	57.15	17.462	14	17.462	3.6	1	38.8	46.9	0.211
48	C121	26	57.15	17.462	13.495	17.462	4.5	1.5	38.1	48.4	0.212
49	L44649/L44610	26.988	50.292	14.732	10.668	14.224	3.5	1.3	28.3	33.0	0.118
50	L44649/L44610/P6	26.988	50.292	14.732	10.668	14.224	3.5	1.3	28.3	33.0	0.118
51	ST2749	27	49	15	11.5	15	3.3	1	28.6	37.7	0.118
52	ST2850/L45410YA1	28	50.292	16.72	10.668	14.220	3.56	2	27.1	36.1	0.123
53	28KW01 αg5/01g	28	50.292	16.65	10.668	14.224	4.35	2	27.1	36.1	0.120
54	TF28KW04g/01g	28	50.292	18.65	10.668	14.224	4.35	2	27.1	36.1	0.127
55	HR320/28XJ	28	52	16	12	16	1	1	31.1	39.8	0.142
56	TR285216g	28	52	18.5	12	16	3.5	1.5	32.6	39.8	0.144
57	639297/639154	28	57.15	17.462	13.495	17.462	3.6	1.6	38.1	48.6	0.201
58	302/28	28	58	16	12	17.25	1.5	1.5	36.9	40.5	0.197
59	02474/20	28.575	68.262	22.225	17.462	22.225	0.8	1.6	53.4	65.3	0.404
60	329013A/Q	29	50.292	17.5	10.668	14.224	2.3	1.3	26.8	34.0	0.120
61	L45449/L45410	29	50.292	14.732	10.668	14.224	3.5	1.3	26.8	34.0	0.113
62	L45449/L45410/P6	29	50.292	14.732	10.668	14.224	3.5	1.3	26.8	34.0	0.113
63	C426	29	50.292	17.5	10.668	14.224	2.3	1.3	26.8	34.0	0.120
64*	BT1B328236A/QCL7CVCO27	30	62	18.1	15.5	5.3	1.5	1.5	43.6	47.8	0.253
65	ST3065	30	65	22	17	21.65	1.5	0.3	58.2	64.7	0.337
66	TRA0607	30	72	19	14	20.75	1.5	1.5	53.6	51.3	0.381
67	14118/14283	30	72.085	19.202	18.415	23.385	0.8	2.3	49.7	64.3	0.448
68	RV-320E	30	58	20	15.5	20	1.5	1.3	47.2	58.9	0.239
69	M86649/M86610	30.162	64.292	21.433	16.67	21.433	1.5	1.5	52.9	67.2	0.336
70	M86649A/M86610	30.162	64.292	21.433	16.67	21.433	0.6	1.5	52.9	67.2	0.338
71	M88043/M88010	30.162	68.262	22.225	17.462	22.225	2.3	1.5	56.3	71.3	0.407
72	TDS-M86649/10	30.162	64.292	21.433	16.67	21.433	1.5	1.5	52.9	67.2	0.335
73	TD-M88043/10	30.162	64.292	22.225	17.462	22.225	2.3	1.5	56.3	71.4	0.407
74	15118/245	30.213	62	20.638	14.288	19.05	3.5	1.3	42.7	50.9	0.259
75	0687/0671	31.75	54.01	15	12	15.011	3.3	1.3	32.2	43.2	0.135
76	31KW01g	31.75	54.01	15	12	15.011	3.3	1.3	34.9	45.3	0.137
77	LM67048/LM67010	31.75	59.131	16.764	11.811	15.875	3.56	1.3	35.6	42.2	0.183
78	LM67049A/LM67010	31.75	59.131	16.764	11.811	15.875	0.8	1.3	35.6	42.2	0.187
79	LM67045/10	31.75	59.131	18.57	11.811	15.875	2	1.3	35.6	42.2	0.192
80	LM67049A/LM67014	31.75	62	16.764	11.811	40.6	0.8	1.5	57.8	84.4	0.446
81	15123/15245	31.75	62	19.05	14.288	18.161	3.56	1.3	42.7	50.9	0.237
82	2580/2520	31.75	66.421	25.357	20.638	25.4	3.5	3.3	69.0	89.0	0.402
83	02475N/02420N	31.75	68.262	22.225	17.462	22.225	3.5	1.5	53.4	65.3	0.378
84	3193/3120	31.75	72.626	29.997	23.812	30.162	3.5	3.3	80.4	97.6	0.598
85	2580/23	31.75	69.85	25.357	19.05	23.812	0.8	1.3	71.6	85.5	0.451
86	568331	31.75	76.2	25.4	19.842	25.4	0.8	0.8	78.0	88.0	0.574
87	JL26749/JL26710	32	53	15	11.5	14.5	3.6	1.3	26.2	36.5	0.121
88	76/32B	32	75	28	23	29.75	2	2	77.8	95.7	0.619
89	76/32B/P6	32	75	28	23	29.75	2	2	77.8	95.7	0.619
90	TR0608A-N	32	75	28	23	29.75	1.5	1.5	74.7	86.5	0.624
91	M88048/M88010	33.338	68.262	22.225	17.462	22.225	0.8	1.5	56.3	71.3	0.382
92	639337A	33.338	76.2	28.575	23.02	29.37	0.8	3.3	78.5	106.0	0.678
93	LM48548/LM48510	34.925	65.088	18.288	13.97	18.034	3.56	1.3	46.0	57.5	0.257
94	LM48549X/10	34.925	65.088	18.288	13.97	18.034	2.36	1.3	46.0	57.5	0.257
95	14136A/14276	34.925	69.012	26.713	15.875	26.975	0.8	1.3	46.3	55.3	0.351
96	HM88649/HM88610	34.925	72.233	25.4	19.842	25.4	2.5	2.5	66.3	86.9	0.482
97	02878/02820	34.925	73.025	22.225	17.462	22.225	0.8	3.3	54.5	64.5	0.420
98	25877/25821	34.925	73.025	24.608	19.05	23.812	1.5	0.8	69.2	87.8	0.460
99	31594/31520	34.925	76.2	28.575	23.812	29.37	1.5	3.5	80.5	96.5	0.644
100	HM89446/HM89410	34.925	76.2	28.575	23.02	29.37	3.5	3.3	79.7	108.4	0.639
101	639338A	34.925	76.2	28.575	23.02	29.37	3.5	3.3	78.5	106.0	0.654
102	TDS-HM89446/10	34.925	76.2	28.575	23.02	29.37	3.5	3.3	79.9	107.2	0.645
103	L68149/L68110	34.988	59.131	16.764	11.938	15.875	3.56	1.3	36.0	48.6	0.172
104	L68149A/10/P6	34.988	59.131	18.875	11.938	15.875	2.5	1.3	34.8	46.8	0.178
105	328227	34.988	59.947	18.5	13	13	2	1.3	24.5	29.3	0.148
106	L68149/L68111	34.988	59.974	16.764	11.938	15.875	3.56	1.3	36.0	48.6	0.179
107	LM78349/10A/P5	34.988	61.973	17	13.6	16.7	4.75	1.5	41.1	53.0	0.210
108	TR070902/354A	34.988	85	21	17.462	20.638	1	1.3	71.9	82.1	0.597
109	JL68145/11-Z(328282)	35	60	18.412	11.938	15.875	2.5	1.3	36.0	48.6	0.187
110	U298/U261L	35	64.8	20.6	14	18	2.3	1.3	47.5	52.3	0.258
111	30607	35	65	18.288	13.97	18	3.56	1.3	46.0	58.8	0.255
112	TD-CR-07A28	35	72	23.8	20	24.25	1.5	0.5	76.8	97.9	0.462
113	TR070803C	35	80	28.5	22	29.25	2	2	90.7	106.7	0.691
114	TR070803J-N	35	80	31	24	32.75	0.5	2.5	92.2	112.5	0.798
115*	BT1B328227CA/Q	35	60	18.5	13	5.5	2	1.3	26.1	29.8	0.157
116	NP897593/857890	35	62	18	14	18	3.56	1	43.0	55.2	0.220
117	TD-30207W/P6	35	73.431	17	15	18.25	1.5	2	56.8	63.5	0.352
118	R35-23g/3237CgN	35	80	31	25	32.75	2	1.5	97.3	123.9	0.807
119	HM89449/HM89410	36.512	76.2	28.575	23.02	29.37	3.5	3.3	79.7	108.4	0.618
120	HM89448/HM89410	36.512	76.2	28.575	23.02	29.37	0.8	3.3	79.9	108.4	0.621
121	HM89249/HM89210	36.512	79.375	28.829	22.664	29.37	3.5	3.3	89.0	108.6	0.689
122	25570/25520	36.512	82.931	25.4	19.05	23.812	3.6	0.8	77.9	101.0	0.654
123	JL69345/JL69310	38	63	19	13.5	17	3.56	1.3	35.5	51.3	0.202
124	JL69345/JL69310E	38	63	19	15.5	18.5	4.75	1.3	35.5	51.3	0.219
125	JL69349/JL69310	38	63	17	13.5	17	3.56	1.3	39.0	51.3	0.197
126	JL69349/JL69310/P6	38	63	17	13.5	17	3.56	1.3	39.0	51.3	0.197
127	LM29748/LM29710	38.1	65.088	18.288	13.97	18.034	3.56	1.3	40.0	58.1	0.234
128	57410S/LM29710S	38.1	65.088	21.1	13.97	18.034	3.56	1.3	40.0	58.1	0.244
129	57207/LM29710	38.1	65.088	18.288	13.97	18.034	3.56	1.3	40.0	58.1	0.232
130	LM29749/11	38.1	65.088	18.288	15.748	19.812	2.3	1.3	40.0	58.1	0.251
131	LM29749/10	38.1	65.088	18.288	13.97	18.034	2.3	1.3	40.0	58.1	0.236
132	KLM29749/10/P5	38.1	65.088	18.288	13.97	18.034	2.3	1.3	45.6	60.9	0.239
133	13687/20	38.1	69.012	19.05	15.083	19.05	2	0.8	47.3	62.4	0.295
134	2788/2720	38.1	76.2	25.654	19.05	23.812	3.6	3.3	72.2	93.9	0.491
135	TD-LM29749/10	38.1	65.088	18.288	13.97	18.034	2.3	1.1	44.0	58.2	0.236
136	3490/20E	38.1	79.375	29.771	23.812	29.37	3.5	3.3	94.3	126.3	0.693
137	HM801346/10	38.1	82.55	28.575	23.02	29.37	0.8	3.3	87.7	117.5	0.755
138	TR080702J/P5	38.5	72	16.5	15	18.25	2	1.5	46.4	55.4	0.308
139	038KC68	38.5	68	16.5	15	18.25	2	1.5	44.1	55.6	0.257
140	038KC68/P5	38.5	68	16.5	15	18.25	2	1.5	44.1	55.6	0.257
141	TR080702J	38.5	72	16.5	15	18.25	2	1.5	46.4	55.4	0.308
142	NP276760/167295	38.5	72	18	15.5	19.5	2.3	1.5	44.3	59.7	0.335
143	639330/639315A	39	72	20.638	16.764	21.43	3.3	0.8	46.4	63.5	0.335
144	M399	39.688	73.025	22.15	18.5	19.25	2.5	1.3	49.5	60.8	0.353
145	M365L	39.688	76	22.098	14.732	19.25	2.5	1.3	51.8	60.8	0.463
146	U399/U360L	39.992	72.8	22.098	15.265	19.25	2.3	1.3	54.9	65.0	0.351
147	TR080803R/TR080803-9	40	80	29	23	30	1.5	1.5	88.2	111.8	0.676
148*	TD-BTI-03361QVA621	40	68	19	14.5	8	1	1	55.2	75.7	0.308
149	TDS-3879/20	40	85.725	30.162	23.812	30.162	0.8	3.3	92.1	116.7	0.825
150	LM300849/LM300811	40.988	67.975	18	13.5	17.5	3.56	1.5	43.8	62.4	0.24
151	TES0831A/LM300811	40.988	67.975	18	13.5	17.5	1.5	1.5	42.4	59.7	0.241
152	BT1B328612C	40.988	68	18	13.5	17.5	3.6	0.8	45.8	62.4	0.244
153	JXC18437CA/Y32008XZ	41	68	21	14.5	19	2	1	48.0	68.0	0.264
154	18590/18520	41.275	73.025	17.462	12.7	16.667	3.5	1.5	44.7	57.2	0.218
155	LM501349/LM501310	41.275	73.431	19.812	14.732	19.558	3.6	0.8	54.5	68.5	0.325
156	LM501349/LM501310-N	41.275	73.431	19.812	14.732	19.558	3.6	0.8	56.6	72.4	0.336
157	LM501349/LM501314	41.275	73.431	19.812	16.604	21.43	3.6	0.8	54.5	68.5	0.345
158	M802048/M802011	41.275	82.55	25.654	20.193	26.543	3.5	3.3	84.8	106.9	0.624
159	HM801346/HM803110	41.275	88.9	29.37	23.02	30.162	3.5	3.3	96.8	138.0	0.908
160	4388/4355	41.275	90.448	40.386	33.338	39.688	3.6	3.2	140.2	182.1	1.240
161	2403001-S504	41.275	73.431	19.812	15.732	20.588	3.6	0.8	55.2	68.3	0.347
162	TDS-LM501349/10N/P6	41.275	73.431	19.812	14.732	19.588	3.6	0.8	56.4	72.1	0.336
163	TDS-24780/20	41.275	76.2	23.02	17.462	22.225	3.5	0.8	66.5	83.7	0.427
164	S3384/20YR	41.275	80.167	30.391	23.812	29.37	0.8	1.3	86.0	105.0	0.631
165	3579/3525	42.862	87.312	30.886	23.812	30.162	3.5	3.3	90.7	118.7	0.809
166	25580/25520	44.45	82.931	25.4	19.05	23.812	3.5	0.8	77.9	101.0	0.554
167	3578/3525-SLS	44.45	87.312	30.886	23.812	30.162	3.3	3.5	90.7	118.7	0.784
168	355X/352	44.45	90.119	21.692	21.808	23	3.5	2.3	75.2	93.1	0.671
169	3782/3720	44.45	93.264	30.302	23.812	30.162	3.5	2.3	99.6	138.5	0.967
170	53176/53377	44.45	95.25	28.3	20.638	30.958	1.3	2.3	90.2	100.7	0.939
171	CBK334	44.45	95.25	28.575	22.225	30.958	3.6	1	104.2	129.7	1.003
172	358X/354X	45	85	21.692	17.462	20.638	2	1.5	67.5	80.9	0.511
173	127509	45	85	23.5	20	24.75	1.5	1.5	66.5	89.5	0.580
174	JW4549/JW4510	45	95	26.5	20	29	2.5	2.5	89.7	110.3	0.905
175	T2ED45	45	95	35	30	36	3	3	147.9	182.1	1.191
176	XAA32009X	45	75	20	15.5	20	3	1	58.4	81.4	0.339
177	358X/354X	45	85	21.692	17.462	20.638	2	1.5	71.9	82.1	0.496
178	127509AK	45	85	23.5	20	24.75	2	0.3	75.5	100.7	0.603
179	TD-STD4595	45	95	35	25.5	36	2.5	1	123.4	156.8	1.165
180	17887/17831	45.23	79.985	20.638	15.08	19.842	2	1.3	58.3	78.1	0.402
181	R45Z-6	45.23	79.985	20.638	15.08	19.842	2	1.3	63.8	75.7	0.387
182	LM102949/LM102910	45.242	73.431	19.812	15.748	19.558	4	1	51.4	79.0	0.308
183	LM603049/LM603011	45.242	77.788	19.842	15.08	19.842	3.5	0.8	57.6	73.8	0.363
184	LM603049/12	45.242	77.788	19.842	16.667	21.43	3.5	0.8	57.6	73.8	0.381
185	LM603049/LM603014	45.242	79.974	19.842	15.08	19.842	3.5	0.8	57.6	73.8	0.394
186	LM603049A/LM603014	45.242	79.974	19.842	15.080	19.842	0.8	1	57.6	73.8	0.398
187	25590/25520	45.618	82.931	25.4	19.05	23.812	3.5	0.8	77.9	101.0	0.537
188	25590/25523	45.618	82.931	25.4	22.225	26.988	3.5	2.3	77.9	101.0	0.580
189	LM503349A/LM503310	45.987	74.976	18	14	18	3.56	1.5	50.5	74.9	0.299
190	LM503349/LM503310	45.987	74.976	18	14	18	2.3	1.5	50.5	74.9	0.301
191	TD-LM503349/10	46	75	18	14	18	2.3	1.6	52.9	74.9	0.299
192	18690/18620	46.038	79.375	17.462	13.495	17.462	2.8	1.5	44.2	57.6	0.330
193	306/47	47	100	43	37	43	2.5	2.5	155.4	210.3	1.585
194	386A/382A	47.625	96.838	21.946	15.875	21	0.8	0.8	76.6	100.2	0.729
195	BT1B332987	48.6	88	21.5	16.8	21.5	0.5	1	89.5	109.5	0.558
196	TR5011444	50	114.3	44.45	34.925	44.45	3.5	3.3	184.0	240.6	2.183
197	JLM104948/JLM104910	50	82	21.5	17	21.5	3	0.5	67.3	95.3	0.412
198	JLM104946/10Z	50	82	24	17	21.5	3.5	0.5	67.3	95.3	0.421
199	JLM104945/10Z	50	82	27.62	17	21.5	3	0.5	67.4	95.4	0.444
200	JLM205149/JM205110	50	90	28	23	28	3	2.5	106.5	140.0	0.749
201	TFS1002A/3720	50	93.264	30.302	23.812	30.162	3.5	3.3	99.6	138.5	0.864
202	T2ED50	50	100	35	30	36	3	3	149.6	201.0	1.295
203	50K8801	50	80	20	17.5	22	3.5	1.5	61.1	89.0	0.388
204	JLM704649/10	50	84	22	17.5	22	3.5	1.5	70.8	96.6	0.469
205	TR5011444	50	114.3	44.45	34.925	44.45	3.5	3.3	184.0	240.6	2.183
206	LM104949/JLM104910	50.8	82	22.225	17	21.973	3.5	0.5	69.7	95.3	0.409
207	LM104949/LM104911	50.8	82.55	22.225	16.51	21.59	3.5	1.3	69.7	95.3	0.412
208	18790/18720	50.8	85	17.462	13.495	17.462	3.5	1.5	48.3	66.7	0.372
209	368A/362A	50.8	88.9	22.2	16.513	20.638	3.5	1.3	75.4	89.0	0.494
210	368/362A	50.8	88.9	22.225	16.513	20.638	1.5	1.3	77.9	92.9	0.522
211	368/362	50.8	90	22.225	15.875	20	1.5	2.0	77.9	92.9	0.531
212	3780/3720	50.8	93.264	30.302	23.812	30.162	3.5	3.3	99.6	138.5	0.855
213	385A/382A	50.8	96.838	21.946	15.875	21	5	0.8	80.5	100.4	0.690
214	368S/362	51.592	90	22.225	15.875	20	2	2	77.9	92.9	0.519
215	28584/28521	52.388	92.075	25.4	19.845	24.608	3.5	0.8	84.5	117.0	0.667
216	LM806649/LM806610	53.975	88.9	19.05	13.492	19.05	2.3	2	63.6	87.4	0.436
217	389AS/382A	53.975	96.838	21.946	15.875	21	1.5	0.8	80.5	100.4	0.644
218	32911JR-N	55	80	17	14	17	1.5	1	44.6	73.1	0.272
219	JLM506849A/JLM506811	55	90	23	20.5	25	3.5	0.5	80.0	113.2	0.575
220	R55-8	55	100	31	24.5	32	2.5	2	123.7	169.5	1.030
221	30611B	55	125	36	25	37	3	2	162.2	191.7	2.069
222	T7GB055	55	130	33	22	36	2.5	2.5	170.5	185.1	2.105
223	TFS1130A/EH32310J	55	110	40	33	42.25	6.5	2	145.5	194.3	1.736
224	T7FC055	55	115	31	23.5	34	3	3	131.6	185.7	1.618
225	28680/28622	55.562	97.63	24.608	19.446	24.608	3.5	0.8	88.2	137.0	0.766
226	CBK494	57	85	19	14	18.5	1.5	1.5	56.2	85.9	0.339
227	L507949g/10g	57.15	87.312	18.258	13.288	18.258	2	1.5	56.1	89.8	0.379
228	387S/382A	57.15	96.838	21.946	15.875	21	0.8	0.8	76.6	100.2	0.592
229	387A/382A	57.15	96.838	21.946	15.875	21	3.5	0.8	76.6	100.2	0.586
230	387/382A-TRW	57.15	96.838	21.946	15.875	21	2.3	0.8	80.5	100.4	0.590
231	387D/382S	57.15	96.838	21.946	20.274	25.4	3.5	2.3	80.5	100.4	0.652
232	387AS/382A-TRW	57.15	96.838	21.946	15.875	21	5	0.8	80.5	100.4	0.581
233	462/453X	57.15	104.775	29.317	24.065	30.162	2.3	3.3	117.3	151.9	1.054
234	7911	57.15	104.775	29.317	24.065	30.162	2.3	3.3	115.3	161.7	1.078
235	469/453X	57.15	104.775	29.317	24.065	30.162	3.5	3.3	111.9	151.9	1.054
236	45291/45220	57.15	104.775	30.958	23.812	30.162	6.4	3.3	127.2	167.5	1.057
237	39580/20	57.15	112.712	30.162	23.812	30.162	3.5	3.3	148.6	209.3	1.400
238	555Sg/552Ag	57.15	123.825	36.678	30.162	38	3.5	3.3	164.7	228.7	2.167
239	TD-L507949/10/P6	57.15	87.312	18.258	14.288	18.258	2	1.5	56.1	89.8	0.379
240	39580/20	57.15	112.712	30.162	23.812	30.162	3.5	3.3	148.6	209.3	1.400
241	39581/20	57.15	112.712	30.162	23.812	30.162	8	3.3	148.6	209.3	1.374
242	555Sg/552Ag	57.15	123.825	36.678	30.162	38	3.5	3.3	163.7	226.2	2.178
243	555S/552A	57.15	123.825	36.678	30.162	38.1	3.5	3.3	163.7	226.2	2.180
244	CR-1252	60	95	26	21	30.7	2	2	81.4	118.7	0.691
245	65237/65500	60.325	127	44.45	34.925	44.45	3.5	3.3	210.2	274.1	2.634
246	H715334/11	61.912	136.525	46.038	36.512	46.038	3.5	3.3	232.9	371.3	3.455
247	Hm813843	61.912	/	36.512	/	36.512	3.5	/	168.2	237.2	1.538
248	JW6049/10	60	125	33.5	26	37	3	3	152.0	199.8	2.023
249	28985/28920	60.325	101.6	25.4	19.845	25.4	3.5	3	91.0	135.0	0.787
250	28985α/28921	60.325	101.6	25.4	19.845	25.4	5	3	91.0	135.0	0.785
251	39250/39412	63.5	104.775	22	15.875	21.433	2	2	85.7	112.2	0.673
252	39250A/39412	63.5	104.775	22	15.875	21.433	5	2	85.7	112.2	0.667
253	29587/29520	63.5	107.95	25.4	19.05	25.4	5	3.3	94.0	145.0	0.918
254	39250/39412	63.5	104.775	22	15.875	21.433	2	2	85.7	112.2	0.673
255	29586α/29522	63.5	107.95	25.4	19.05	25.4	5	1.5	94.0	145.0	0.913
256	29586YA/29522YA	63.5	107.95	25.4	19.05	25.4	5	3	94.0	145.0	0.908
257	524884	63.5	120	41	32	41	2	2.5	209.2	294.1	2.052
258	HM212047XA1/11	63.5	122.263	38.354	29.718	38.1	8	3.15	184.3	254.3	1.910
259	78250/78551	63.5	140.03	33.236	23.52	36.512	2.3	2.3	152.4	181.3	2.401
260	39585/20	63.5	112.712	30.162	23.812	30.162	3.5	3.3	148.6	209.3	1.255
261	3982/20	63.5	112.712	30.048	23.812	30.162	3.5	3.3	116.0	169.6	1.235
262	TR131305R	65	130	48	39	51	3	3	241.5	337.7	2.950
263	TFS1333A-SLS	65	130	48	39	51	3.5	3.5	241.5	337.7	2.950
264	30613	65	130	43	35	45	8	2.5	222.2	315.2	2.611
265	30613B	65	140	39	26	40	3.5	2	204.5	245.9	2.736
266	CR-1364/1355	65	130	57.5	39	57.5	11.5	3.0	245.3	334.1	3.678
267	29590/22	66.675	107.95	25.4	19.05	25.4	3.5	1.5	94.0	145.0	0.855
268	395A/394A	66.675	110	21.996	18.824	22	0.8	1.3	88.2	117.9	0.789
269	39590/20	66.675	112.712	30.162	23.812	30.162	3.5	3.3	148.6	209.3	1.183
270	3984/3920	66.675	112.712	30.048	23.812	30.162	3.5	3.3	103.0	154.2	1.135
271	HM212049/11	66.675	122.238	38.354	29.718	38.1	3.5	3.3	184.3	254.3	1.848
272	29590/22W/NEW	66.675	107.95	25.4	20.55	26.9	3.6	0.8	93.3	143.5	0.891
273	CBK337	66.675	112.712	30.048	23.812	30.162	3.5	3.3	140.3	198.1	1.174
274	HM813844/10	66.675	127	36.512	26.988	36.512	3.5	3.3	168.2	237.2	2.021
275	H414245α/H414210	68.262	136.525	41.275	31.75	41.275	8	3.3	219.7	299.5	2.645
276	TR681432	68.262	143	41.275	32.75	42.275	8	2.5	240.0	299.2	3.041
277	9278/9220	68.262	161.925	49.212	31.75	49.212	3.5	3.3	250.8	294.3	4.518
278	H715343/11	68.262	136.525	46.038	36.512	46.038	3.5	3.3	232.9	371.3	3.221
279	9185/9121	68.262	152.4	46.038	31.75	47.625	3.5	3.3	249.4	285.7	3.789
280	H913849-N/H913810-N	69.85	146.05	39.688	25.4	41.275	3.5	3.3	176.7	198.5	2.731
281	T2ED070	70	130	42	35	43	8	2.5	242.4	342.2	2.418
282	JH913849/JH913811	70	150	39.688	25.4	41.275	2	3.3	205.2	244.7	3.070
283	T7FC070	70	140	35.5	27	39	3	3	186.0	267.9	2.676
284	33281/33462	71.438	117.475	30.162	23.812	30.162	3.5	3.3	119.8	181.1	1.218
285	306/73	73	101	17	13	17	1	1	55.1	97.8	0.378
286	33287/33462	73.025	117.475	30.162	23.812	30.162	3.5	3.3	119.8	181.1	1.173
287	29685/20	73.025	112.712	25.4	19.05	25.4	3.5	3.3	97.4	155.2	0.868
288	30615	75	135	45	36.5	44.5	2	1.5	222.9	346.8	2.70
289	32315X3	75	180	60	45	63.5	3	3	405.3	526.9	7.795
290	JLM714149/10	75	115	25	19	25	3	2.5	102.8	153.1	0.854
291	7815KA	75	135	45	35	44.25	2.3	2.3	217.0	322.0	2.621
292	580616	75	140	32	28	34.25	0.5	2	207.4	279.2	2.264
293	T7FC075	75	150	38	29	42	3	3	204.3	293.6	3.301
294	34300/34478B	76.2	121.442	23.012	17.462	24.608	2	2	91.9	129.2	0.958
295	6461A/6420	76.2	149.225	54.299	44.45	53.975	9.7	3.3	287.3	406.4	4.144
296	575/572	76.2	139.992	36.098	28.575	36.512	3.5	3.3	177.5	265.2	2.392
297	9380/21	76.2	171.45	46.038	31.75	49.212	3.5	3.3	269.0	330.0	5.006
298	30616	80	130	30.8	25	32	2.5	2.5	162.3	252.8	1.560
299	804358	80	140	39.25		39.25	2.5	2	227.7	364.1	2.612
300	740/742	80.962	150.089	46.672	36.512	44.45	5	3.3	266.3	371.4	3.424
301	NP569484/644537	82	140	36.098	28.575	36.512	10	3.5	177.5	265.2	2.136
302	580/572	82.55	139.992	36.098	28.575	36.512	3.3	3.5	177.5	265.2	2.169
303	CBK-338	82.55	125.412	25.4	19.845	25.4	3.6	1.6	125.8	181.6	1.040
304	842/832	82.55	168.275	56.363	41.275	53.975	3.5	3.3	345.2	471.3	5.491
305	27695/20	84.976	125.412	25.4	19.845	25.4	5	1.5	101.2	162.3	0.974
306	JM716649/JM716610	85	130	29	24	30	3	2.5	144.2	230.9	1.368
307	497/492A	85.725	133.35	29.769	22.225	30.162	3.5	3.3	134.5	199.7	1.423
308	HM518445/HM518410	88.9	152.4	39.688	30.162	39.688	6.4	3.3	247.2	375.0	2.837
309	K-HM518445/K-HM518410	88.9	152.4	39.688	30.162	39.688	6.4	3.3	242.8	369.6	2.828
310	759/752	88.9	161.925	48.26	38.1	47.625	3.5	3.3	275.5	394.7	4.090
311	6580/6535	88.9	161.925	55.1	42.862	53.975	3.5	3.3	318.3	475.4	4.707
312	K-HM218248/K-HM218210	89.974	146.975	40	32.5	40	7	3.5	235.6	367.6	2.546
313	HM218248/HM218210	89.974	146.975	40	32.5	40	7	3.5	222.4	350.9	2.507
314	TRA181504	90	150	36	30	38.5	2	2.5	211.2	302.6	2.471
315	598A/592A	92.075	152.4	36.322	30.162	39.688	6.4	3.3	186.0	390.6	2.543
316	30619	95	160	47	38	47	3	2.5	298.5	443.3	3.692
317	TR19*1604	95	160	40	34	42.5	5.5	3	245.2	358.7	3.156
318	594/592A	95.25	152.4	36.322	30.162	39.688	3.5	3.3	186.0	290.6	2.468
319	594A/592A	95.25	152.4	36.322	30.162	39.688	5	3.3	186.0	290.6	2.458
320	594R/592A	95.25	152.4	36.322	30.162	39.688	7.6	3.3	186.0	290.6	2.435
321	42381/42584	96.838	148.43	28.971	21.433	28.575	3.6	3.7	130.0	204.0	1.677
322	HM220149/HM220110	99.974	156.975	42	34	42	8	3.5	257.3	419.5	2.911
323	JM720249/JM720210	100	150	35	28	36	3	2.5	206.2	330.4	2.369
324	JHM720249/JHM720210	100	160	40	32	41	3	2.5	241.6	384.4	2.992
325	52400/52618	101.6	157.162	36.116	26.195	36.512	3.5	3.3	194.1	316.0	2.424
326	787/772	104.775	180.975	48.006	38.1	47.625	7	3.3	291.7	442.0	4.830
327	30621	105	170	56	44	56	3	3	370.9	601.4	4.769
328	L521949/L521910	107.95	146.05	21.433	16.67	21.433	2.5	0.8	80.0	155.0	0.991
329	CBK339	107.95	158.75	21.438	15.875	23.02	3.5	3.3	107.1	164.6	1.333
330	936/932	107.95	212.725	66.675	53.975	66.675	8	3.3	452.8	678.7	10.420
331	37431A/37625	109.538	158.75	21.438	15.875	23.02	5	3.3	105.4	172.7	1.308
332	JM822049/10	110	165	35	26.5	35	3	2.5	197.5	328.4	2.483
333	JP12049/JP12010	120	170	25	19.5	27	3	3	178.0	283.0	1.742
334	32924	120	165	29	23	29	1.5	1.5	172.0	318.3	1.786
335	36690/20	146.05	193.675	28.575	23.02	28.575	1.5	1.5	189.4	379.7	2.247
336	M238849/10	187.325	269.875	55.562	42.862	55.562	3.5	3.3	413.3	811.3	9.728
337	544091/544118	231.775	300.038	31.75	23.812	33.338	3.5	3.3	216.0	425.0	5.329

Prod Model:	JLM506849A/JLM506811
Inner Size:	55mm
Outer Size:	90mm
High:	25mm
The Number Of Rows:	Single
Seals Type:	Open
Cage:	Steel, Brass, Nylon
Precision Rating:	P0, P2, P4, P5, P6
Stock:	Large
Type:	Wheel Hub Bearing
Material:	Chrome Steel
Tolerance:	P5
Certification:	ISO9001
Clearance:	C3
ABS:	Without ABS
Brand:	Alison
Application:	Land Rover

Liaocheng Alison Bearing Co., Ltd is a sino-foreign joint venture, Located in China's bearing country yandian town. Our company is equipped with modern production equipment, advanced management philosophy, advanced technology talents, we devote ourselves to the research and development and production of Tapered roller bearing and Non-standard-bearing. We serve the customers all over the world with the tenet "service first, quality-oriented, reputation premier ", and win good reputation with Stable quality and excellent service.

Alison, Professional quality, achievement model.
