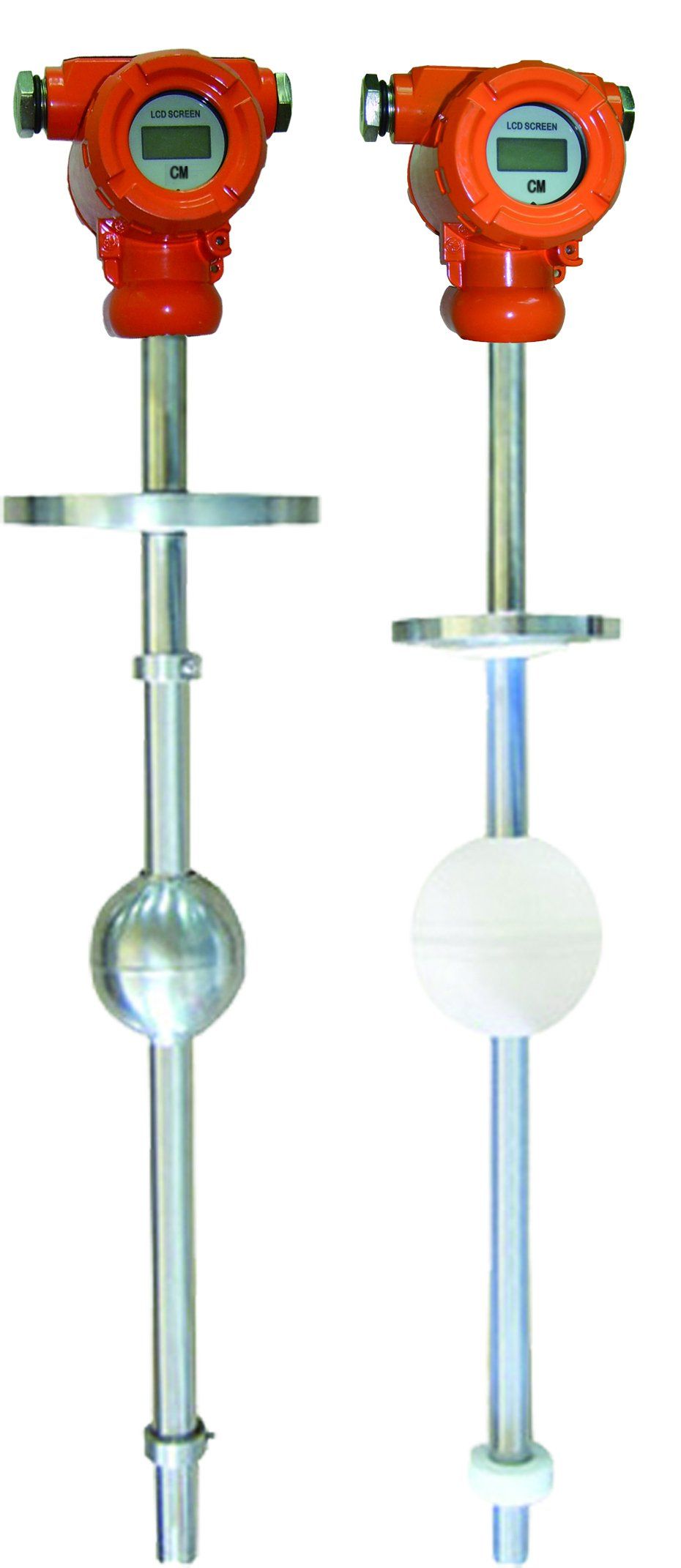

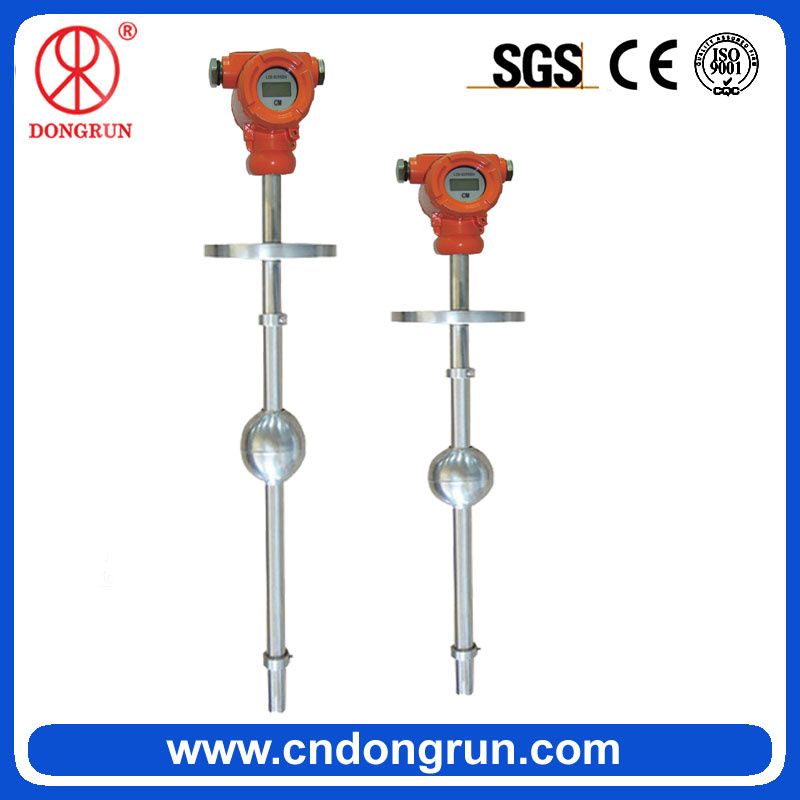

Series UHZ-99 magnetic float liquid level transmitter transforms the displacement of the magnetic float liquid level into simulation 4~20mA standard signal output. It is stable, reliable and no need adjustment. It applies to online measurement and control of various industrial drainage works.
Technical Parameter
| Length | ≤6000mm. If it is over 6m, it should be mounted on site. The measurement pipe is supplied in segments. |
| Accuracy | ±1.5%(H>1000mm) ±2.5%(500mm≤H≤1000mm) |
| Power supply | 24VDC |
| Output | two-wire 4~20mA |
| Power Consumption | ≤720MW |
| Protection Grade | IP65 |
| Operating Temperature | -20~100ºC(It can be up to 150 ºC in particular.) |
| Operating Pressure | 0~1MPa (particular design when it is over 1 MPa). |
| Medium | gravity≥0.5g/cm3 viscosity ≤1.25St |
| Explosion-proof | Intrinsically safely ExiaIICT6 |
| Float | StandardΦ76; specialΦ48,Φ120,Φ144 or chosen by the user. The height of the float : Φ48 is 55mm, Φ76 is 80mm, Φ120 is 125mm. Φ144 is 150mm |
Company Information
Shandong Dongrun Instrument Science and Technology Co., Ltd was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet different conditions of corrosion requirements.
we are manufacturer in China for online water analyzer and level transmitter, pressure transmitter , level sensor since 1998, our product have been exported to Iran, India, Australia, Philippines , Indonesia , Malaysia, Italy , Chile, Hungary , Brazil, Colombia, South Africa, Canada , Ireland, New Zealand, Russia , Belarus, Israel, etc. have good quality and competitive price.
Certificate
Shandong dongrun Instrument Science and Technology Co., Ltd. Was founded in 1998, specializes in manufacturing online water quality analysis equipment, material level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperate with the Chinese Academy of Sciences to build a water analysis laboratory, and the main products are pH/ORP analyzer, DO analyzer, Conductivity analyzer, Turbidity analyzer, TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification and has a professional R & D team, providing technical support to meet customer demand, particularly in the anti-corrosion, our company has a unique technology to meet different conditions of corrosion requirements.
Company Culture
Our Mission: Using advanced analysis and monitoring technology, continuously to improve the human living environment; Using first-class automation and information technology, to create the greatest benefits for enterprises and society; Work hard wholeheartedly for the human environment construction and social progress.
Our vision: Make the world's most reliable instruments and equipment, to design the world's most intelligent automation information software; To do a hundred years of business, to become the world's leading industry brands.
Our spirit: Constant learning, constant innovation and constant development
Our team: Positive, courageous and capable of one heart and one mind, solid and steady
Our criteria: Concentrate, professional, dedicated, diligent, lean and improvement;
Our style: Enthusiasm, high-quality, high-efficient, no excuse
