T16 Air Brake Chamber 423 104 900 0

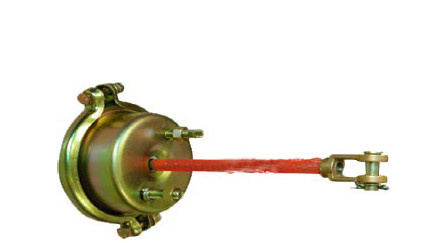

Name: T16 Air Brake Chamber 423 104 900 0
Brand: ibuyautoparts.com
SKU: 765346505
Availability: InStock
Rating: 5 (135 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	423 104 900 0
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM:	423 104 900 0
Stroke:	75mm
Port Thread:	M16X1.5
Bolt Thread:	M16X1.5
Bolt Centre:	76.2mm
Push Rod Thread:	M16×1.5
Push Rod Length:	260mm
Price:	Competitive Price
Quality:	Best Quality
Business Type:	Factory and Trading Company
Type:	Brake Lining
Material:	Steel
Certification:	TS16949

Product Description

Specifications
T16 Drum Brake Chamber
OE No.: WABCO 423 104 900 0
High quality & Competitive prices
We have various of models of Trailer and Semi Trailer Brake Chamber ,Truck Brake Chamber ,
Air Brake Chamber ,Disc Brake Chamber ,Spring Brake Chamber

Specifications
Truck spring brake chamber

1) WABCO 423 104 900 0
2) Type: T16
3) Brake stroke: 57
4) Inlet Thread: 3/8" - NPTF
5) Push rod thread : 1/2" - 20 UNF
6) Push rod length: 160 mm
7) Port angle: 90°
8) Clam Angle: 45°
9) Color: gold/ black

T9 57 REF NO.423 102 900 0
T12 57 REF NO.423 103 900 0

T16 75 REF NO.423 104 900 0

T20 75 REF NO.423 105 900 0

T24 75 REF NO.423 106 900 0

T30 75 REF NO.423 107 900 0

T36 76 REF NO.423 008 917 0

Ningbo Hongzhuo Filter Factory
Product name	T16 spring brake chamber
Brand name	Honjoo
OE Number	423 104 900 0
Stroke	64mm/64mm
Port thread	M16*1.5 3/8"NPT 3/8"NPT
Bolt thread	M161.5 M161.5 5/8"UNF
Bolt centre	120.7mm
Push rod thread	M161.5 M161.5 5/8"UNF
Whole push rod length	285mm 285mm 285mm
Maximum operating pressure	1mpa
Operating temperature range	-40ºC to 80ºC degrees celsius
Operating pressure	800kpa
Minimun Order Quantity	50 sets
Packing	Including paper box,OPP bag and carton/Can be customized
Delivery	15 Days after the deposit
Warranty	1 year
Payment	T/T OR L/C OR Western Union OR MoneyGram
