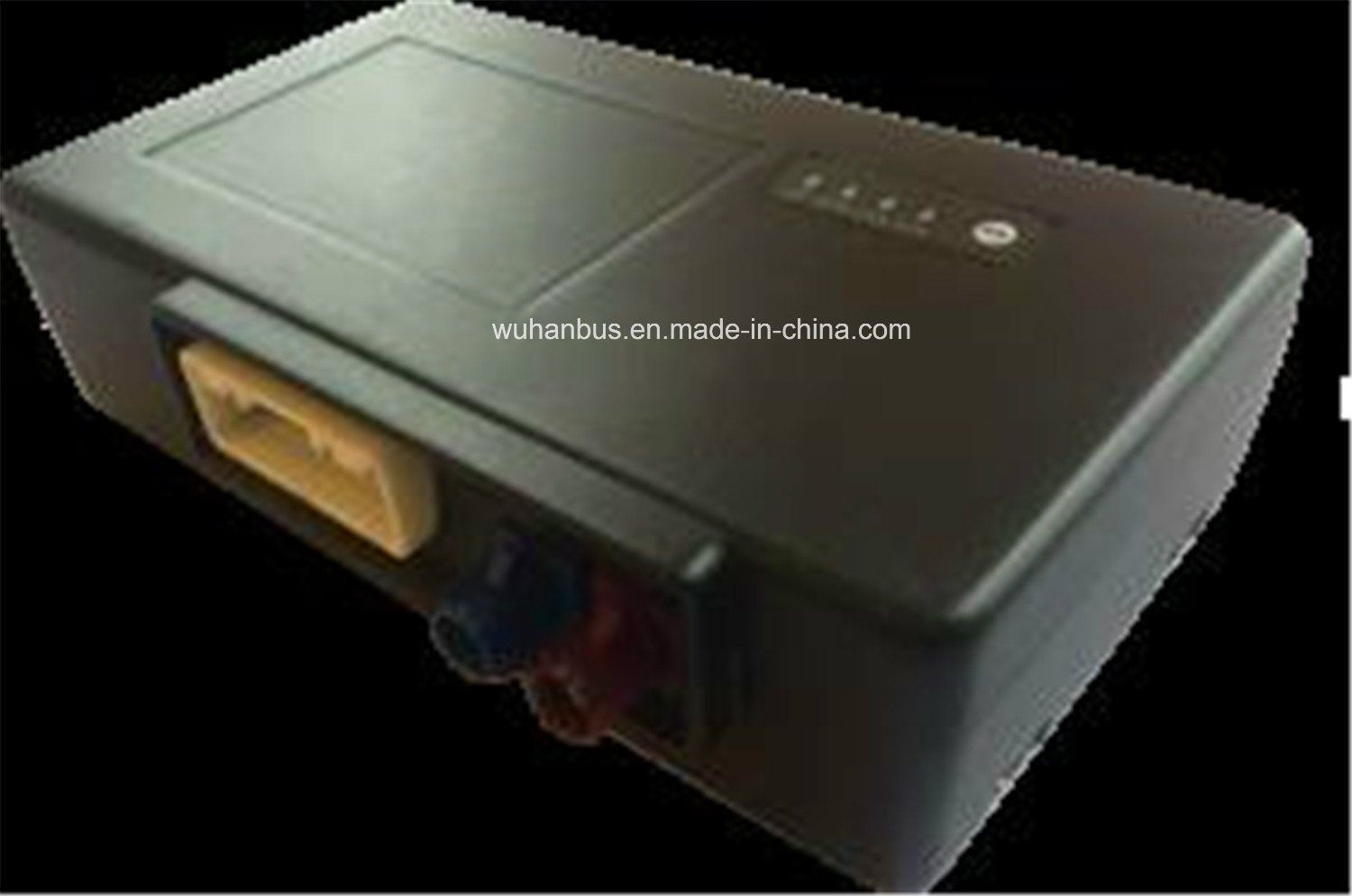

T Box for Electric Vehicle
| Price: |
US $ 450/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
T BOX for Electric VehicleOur Telematics box is widely used for as below: 1. Electric Vehicle data monitoring;
2. Automotive Information Management;
3. Car network system terminal;
4. Car security system Model Description | Long distance monitoring subsystem for electrical vehicle |
Application scope: | Especially for pure electric vehicles |
Specification | Rated voltage | 9~36V DC |
Rated Power | 1.56W |
Dimenison | 130.6*77.4*34.8 |
CPU Frequency | 168MHz |
Network Type | 3G upload 1.8Mb;Download 3.1Mb ;CDMA 800MHz |
Location module | BeiDou Navigation Satellite System+GPS |
SD card | 32GB |
CAN connector | 2 CAN2.0B 1Mb/s |
Spare battery | Support 30min working |
Indicator | LED in two colors |
Buzzer | Support PWM |
Update | Serial port,ST-LINK,Remote upgrade |
Button | Touch switch |
Antenna | Location:FK1-C-RM-226 Communication:FK1-D-RM-226 |
Wire seat | IRISO 9491B-24B-TM2 |
| Working temperature | -30~70ºC |
| Storage temperature | -40~85ºC |
| Working life | 5 years |
| Electrostatic discharge immunity | Connecting: ±6kV
In Air: ±15kV |
Spare interface | 2 for spare input 2 for spare output 2 for RS232 Serial port |
ACC Detection | Support ACC Detection |
Waterproof level | IP54 |
If you are an electric vehicles city route operator or electric vehicle charging station constructor,our products will improve your work efficiency and make your electric cars in the Maximum Performance and safty!
| Prod Model: |
EVT-098 |
| Woring Temperature: |
-30 Centigrade--70 Centigrade |
