supplying F51R72 Carbon Brush for press motor 1. Specifications:1). Item name: supplying F51R72 Carbon Brush for press motor
2). Model No.: F51,F49,F61,F63,TD212,IM31,E101,E49,E50,E46F3,RX91
3). Size: 10X16X32.5mm, also can according to customed sizes.
4). Material: Graphite material/metal graphite(silver/copper)/eletric graphite/ resin-boned graphite
5). Grade: We have Morgan, Schunk, E-Carbon, Mersen, Megaa for you chooses.
6). Sample Lead Time: 5-7 working days after receipt of make sample charges
7). MOQ: 10PCS
8). Packages:
(a). Items per Carton: 10 Pieces / Carton
(b). Package Measurements: 8X11X24 CM
(c). Gross Weight: 4.00 KG
Data sheet| carbon brush F51R72 : |
| Grade | Material | Resistivity
(u Ω@ m) | HR 10/40 | HR 5/40 | Bending Strength
(N/mm2) | Density(g/m3) |
F51R72 |
Resin bonded graphite | 300 | 100 | - | 30 | 1.7 |
2. About material:Aobo Carbon provide carbon brushes in all kinds of applications for OEM customers and end users. Our customers have proven the good quality can keep in long -term use. We are sure to offer you the suitable material.
1. Graphite material --- for slip ring of high-speed turbine.
2. Metal graphite material --- for high load and low voltage motors with less commutation task.
3. Resin bonded graphite material --- for small and middle sized DC(Direct Current) motors and generator plant.
4. Electro graphite material ---has excellent commutating performance and self-lubricated functions, has been widely used in all AC(Alternating Current ) and DC(Direct Current) motors.

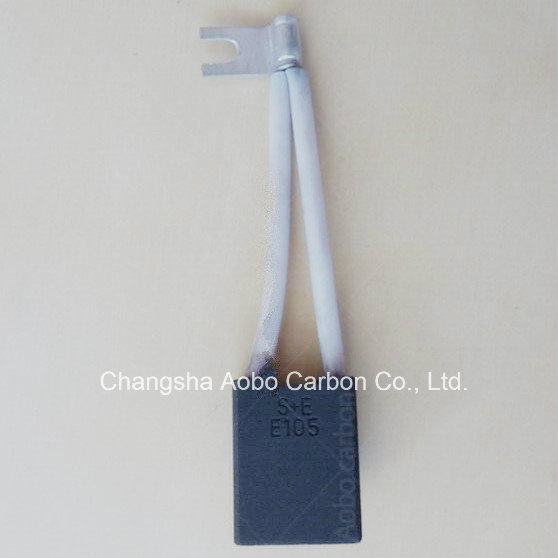

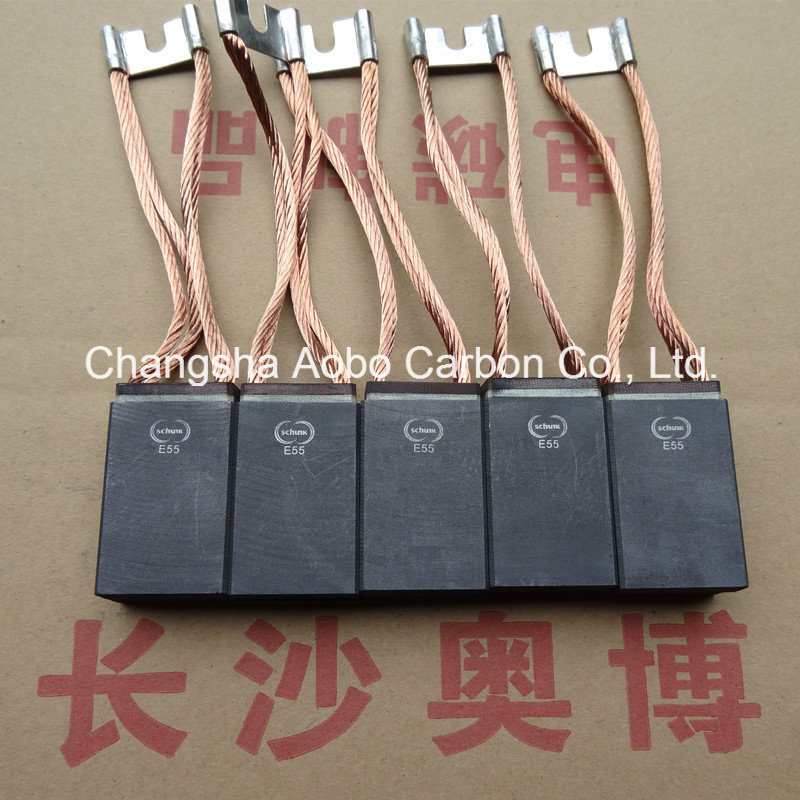

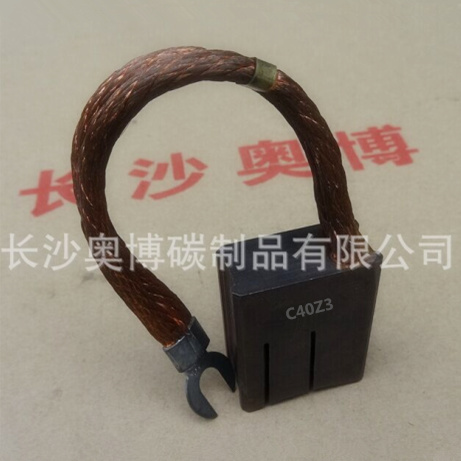

Picture for reference:
3. Main application as following:-Carbon brush for industrial application
- Carbon brush for generator industry
- Carbon brush for household appliances
-Carbon brush for micro motor
-Carbon brush for automotive application
-Carbon brush for vacuum cleaner
-Carbon brush for power tool
4. Buying guides:| 1. when order brushes product, end users should specify the order drawing number, type and size the required quantity and delivery time requirements. |
2. Special specifications and structure, please provide drawings or samples. |
3. Our company has kept the map, when ordering, please indicate the figure number. |
4.We list the commonly used various sizes and models of carbon brushes , if there are special requirements, please note so that specify them in contract. |
Welcome to send the inquiry to us, thanks.
