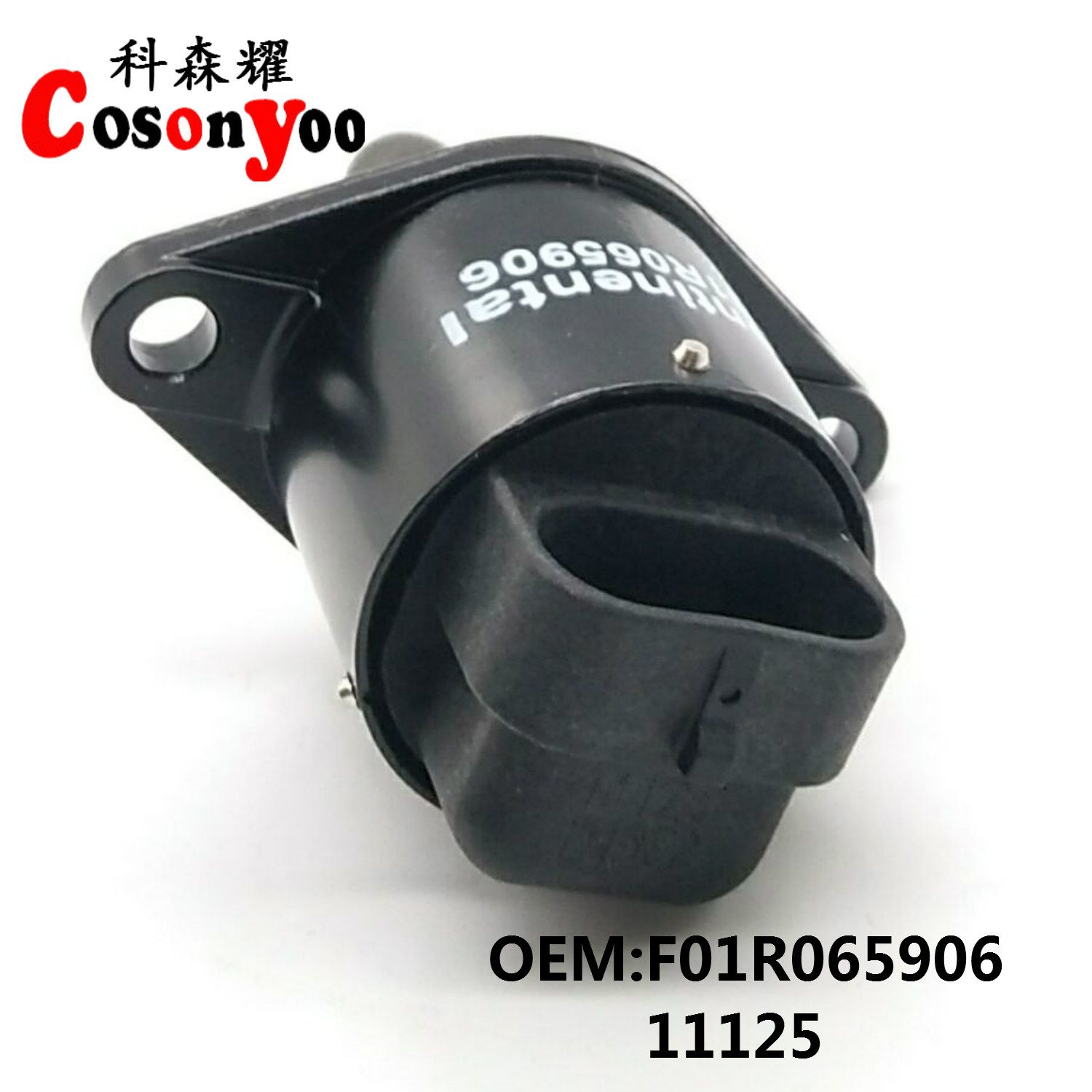

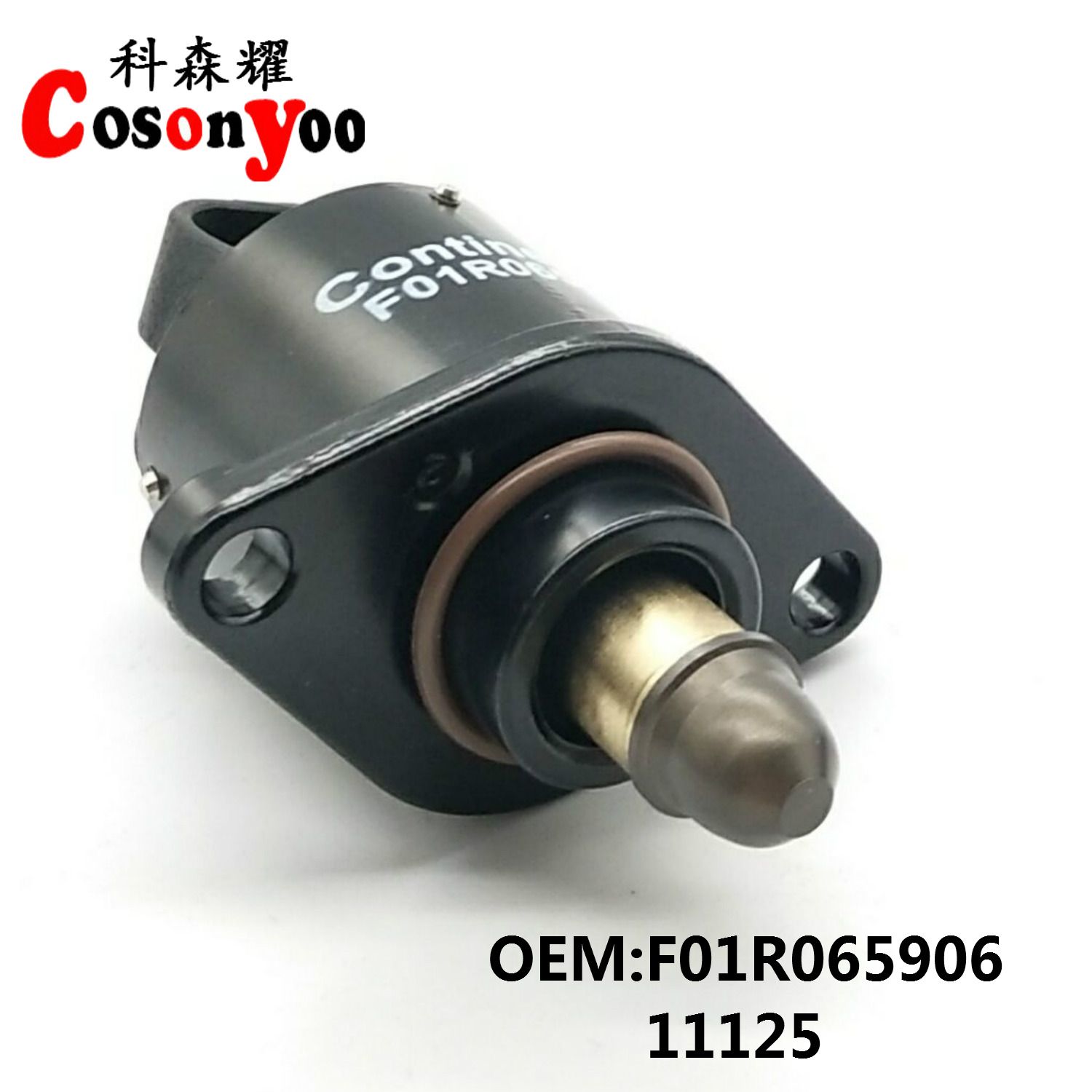

Name: Stepper Motor Valve, Idle Motor, OEM: F01r065906/11125/D5184
Brand: ibuyautoparts.com
SKU: 833806635
Availability: InStock
Rating: 4.6 (136 reviews)

Price:	US $ 5/Piece
Min Order:	50/Piece
Pay Type:	L/C,Western Union

Contact Supplier

Showroom Product Company Profile

Product Introduction: idle speed motor is a part of controlling motor vehicle idle speed. The engine is idle when it is called idle speed.
Work and principle: at idle speed, according to engine temperature and load size, change the area of the idle Air Road, the engine has the best idle speed of idle speed under different conditions.
The idle speed motor is mainly used to bear car idle speed, the purpose is to adjust the idle speed according to the engine load at idle speed. The idle step motor is installed on the throttle body and is used by the engine controller to control the engine idle speed, when the engine speed is off the idle speed, it is adjusted by the airflow valve, control the air volume into the intake manifold and the mechanical operation of the accelerator pedal wire rope. The throttle body has a bypass air path, provide air when the engine is idle (when the throttle closes ). The armature of the automatic idle speed motor is extended into the bypass air path, which regulates air flow through it, the engine controller is based on the input signals of various sensors, adjust the speed of engine idle speed by using the pivot of mobile automatic idle speed motor. When the ignition key is transferred to an open position, the automatic idle motor starts to work. This switch signal input ecu, the perception engine is in idle condition. At the same time, the motor position, the motor position sensor feedback to the ecu.
Product Information:

Product Name:	idle speed motor/ Stepper motor Valve
Product Model:	F01R065906/11125/D5184
Product Specifications:	558.5/110g
Scope:	chery QQ1.1/BYD F3 1.5/Horse Racing 1.3/sea Fuxing 4G18/Zotye 2008/5008 and other.
Production:	China

Prod Model:	F01R065906/11125/D5184

Welcome to Our company mainly manages

Idle motor, throttle assembly, electronic throttle assembly, water temperature sensor, camshaft position sensor, crankshaft position sensor, knock sensor, oil plug, fuel injector, inlet pressureForce sensor, carbon canister control valve, meter sensor, ABS sensor, ignition coil, sparkPlug, sub line, airbag oilwire, fuel pump assembly, fuel pump, fuel distribution pipe, fuel pressureValves, gasoline floats, EGR valves, VVT valves, computer boards, plugs for all electrical appliances
