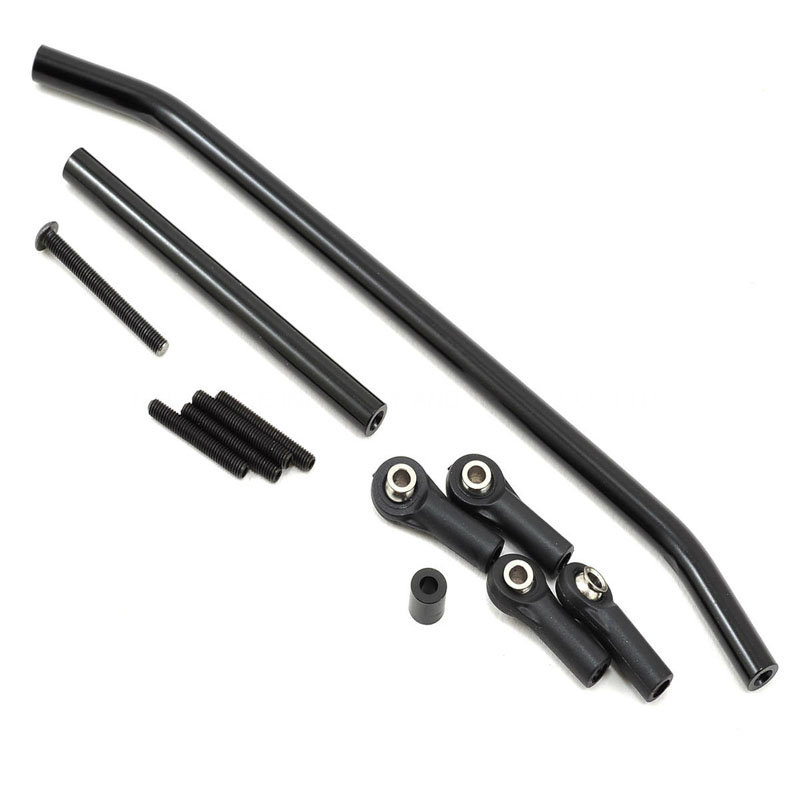

The steering linkage is made of interconnected parts which move every time the steering wheel is turned. The rotating movement of the steering column activates mechanisms inside the steering box. Tie rod ends, which join the key parts, passon the steering wheel's motion no matter what the angle of the linkage or the vibration from the road. In a pitman arm steering setup, the movement inside the steeringbox causes the Pitman shaft and arm to rotate, applying leverage to therelay rod, which passes the movement to the tie rods. The steering arms pick upthe motion from the tie rods and cause the steering knuckles to turn the wheels.
The steering linkages need regular maintenance for safe operation, such as lubrication and inspection. Faulty steering links can cause tire wear at the least, and complete loss of control of the vehicle at worst. "Popping" noises (when turning the wheels) usually indicate worn out steering linkages.
The integral steering gear uses a recirculating ball gearbox along with a pitman arm to steer the vehicle to the left or right.
Common signs of wear include sloppy steering feel, and reduced steering responsiveness
An integral power steering gear having a primary or input shaft, a secondary shaft, a valve mechanism and a power piston, all mounted on a single housing in axial alignment with one another. The power piston is movable axially relative to the valve mechanism and has a hollow formed therein which receives at least a portion of the valve mechanism depending upon the relative axial position of the power piston and the valve mechanism. The valve mechanism is located in one of the two pressure chambers located on the opposite sides of the power piston.
Other relative steering gear parts for a reference:
Our workroom&company at glance:
We attend some professional fair Chin and abraod,at a glance:
INGBO CIE INDUSTRY AND TRADE Co., Ltd was established from 1988 in China and export more than 30 years old mainly for Industrial bearing Our Head Company registered capital is USD1, 500, 000, and we have 1, 200 employees contributing to the turnover of more than 0.8 billion US dollars.
We have passed the evaluations of ISO9001: 2001 quality management system, ISO14001: 2004 environment management system and OHSAS18001: 1999 certification. We possess more than ten subsidiary companies, an industrial zone named CIE Industry occupying 25, 000 square meters, and more than ten manufacturing factories respectively engaged in high quality automotive parts and bearings, including automotive wheel bearings and kits, auto bearings, automotive bearings, wheel-hub units and kits, air-conditioner compressor bearings, steering-gear bearings, deep groove ball bearings, tapered roller bearings, needle roller bearings and special non-standard bearings, ball screw, linear guide rail and block assembly, steering systems with power steering gear, manual steering gears like recirculating balls and nut steering gears, racks and pinion steering gears, steering columns, steering linkages, as well as steering gearbox parts like gear sector shafts, worm assemblies and ball screws, linear guide rails and block systems. You can find our products installed as OEM equipment in automobiles from Europe, Asia and the U. S. A.
Our subsidiary company-CIE Auto Source Industry Co., Ltd. Was established in 1996, and is strong at the production of bearings, Power Transmission Parts and Steering System, of which the details focus on the following issues:
Design strength:
Our in-house team of approximately 60 experienced engineers is constantly developing newer and better bearing models, and auto parts mainly for steering systems. The most advanced computer aided design (CAD) systems and Germany-imported grinder machines are utilized to incorporate your specific requirements. Our ratio of R&D investment is much higher than the average in domestic industry.
Quality control:
Some of our QC instruments and meters are imported from Japan and Germany. We inspect every item with Talyrond roundness testing instruments before packaging. Our team also performs noise and vibration tests as well as radial and axial clearance inspection. Steering system parts are inspected on fatigue test bench, metering inspection center, 3D measuring apparatus, performance test bench and alignment test bench.
Services:
We are committed to providing first class services and top quality products through:
1)Developing trading relationships of mutual trust with customers and suppliers;
2)Training and development of all our employees to enable them to release their full potentials and provide career progression;
3)Supporting objectives which safeguard the environment, leading to better working practices and safety running of machine and operation;
4)Improving efficiency by incorporating technological solutions
5)Exceeding customer's expectation for service, quality and value for money\
6)Improving communications with our customers, suppliers and staff to keep them up to date with industrial development and news
Constantly contacting customers for product's further development is given higher priority at NINGBO CIE INDUSTRY AND TRADE Co., Ltd., and serious development work relies on knowing the demands and requirements of the market.
