| Prod Model: |
51-24.00/5.0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Steel Wheel 51-24.00/5.0 |
| Fitted Tyre: |
33.00r51 |
| Assembly (Tyre With Rim ): |
Available |
| Fitted Model: |
Belaz |
| Material: |
Steel |
| Type: |
Rim |
| Drive Wheel: |
4WD |
| Wheel Accessories: |
Wheel Cover |
| Certification: |
DOT |
| Wheel Hub Diameter: |
51 Inch |
| Finishing: |
Paint |
| Spoke Type: |
No Disc |
| Wheel Hub Brand: |
Multistar |
Product Description
1. Wheel Rim for Construction
2. Diam from 20" to 63"
3. OEM/Design Service
4.
Quarantee: 2-3 years for rimsSpecialized in manufacturing and exporting all kinds of tyres and wheels to all over the world. And we can supply wheel rims and tires, and are especially professional in truck wheel, agricultural wheel and assemblies and components for OTR wheel and engineering wheel with multi-pieces for earthmover.
And we have dealed with OTR wheel for many years. Our main markets are Australia, South Africa, South America and Asia. We also supply OEM service to many vehicle factories not only in domestic but also abroad. And We are now available a wide range of Earthmover wheels with diam from 20" to 63" for mine, underground, port and bridge, etc.

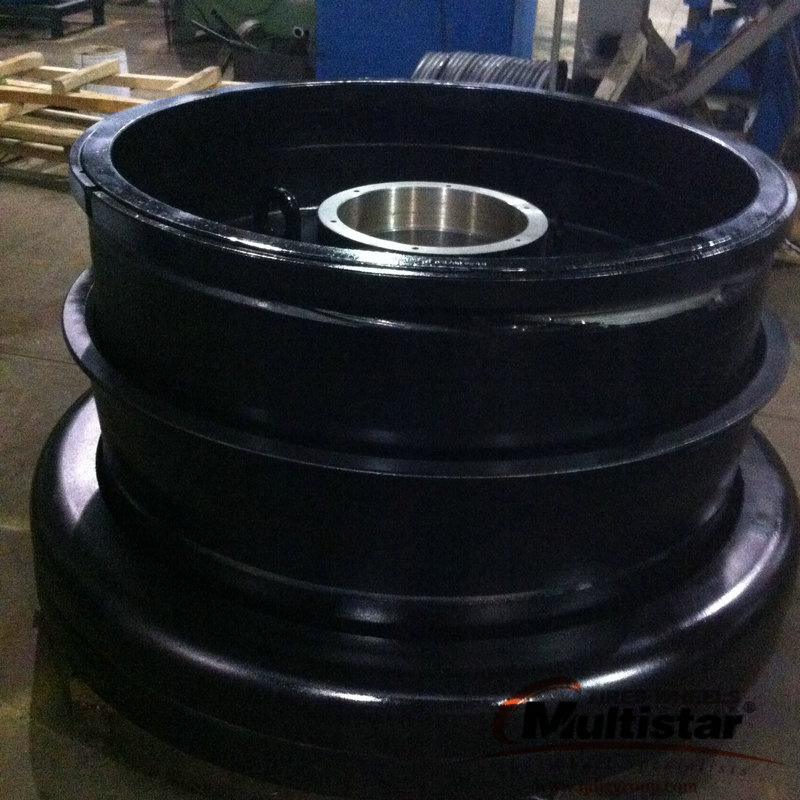

Below is the detail of 51-24.00/5.0 and some other large OTR wheel rim. More information and sizes of wheel rims, welcome to contact with us.
More sizes of OTR Wheel Rim as below:
OTR Wheel Rim / Earthmover Wheel Rim / Engineering Wheel / Multi pieces Wheel Rim /Loader Wheel Rim:
20": 20-7.50/1.7, 20-80/1.7, 20-8.5/1.7, 20-9.00/1.7, 20-10.00/1.7, 20-10.00/1.88, 20-10.00/2.0,
20-11.00/1.7, 20-12.00/2.0, 20-13.00/1.7, 20-13.00/2.0, 20-14.00/2.0, 20-15.00/1.7, 20-15.00/2.0,
20xW14
21": 21-11.25/2.0, 21-18.00/1.5, 21-17.00/2.0, 21-18.00-2.0
22": 22-17.00/2.0
23": 23-11.00/1.5, 23-18.00/2.0
24": 24-8.00/1.7, 24-8.50/1.7, 24-10.00/1.7, 24-10.00/2.0, 24-11.25/2.0, 24-12.00/1.7, 24-
13.00/1.7, 24-10.00/1.8, 24xW15, 24xW16
25": 25-8.5/1.5, 25-9.5/1.5, 25-8.50/1.3, 25-9.50/1.7, 25-10.00/1.5, 25-11.00/1.5, 25-14.00/1.5,
25-11.00/1.7, 25-11.25/2.0, 25-11.00/1.7, 25-11.25/2.0, 25-13.00/2.5, 25-14.00/2.0, 24-15.00/3.0,
25-17.00/2.0, 25-19.5/2.0, 25-19.5/2.5, 25-22.00/1.84, 25-22.00/3.0, 25-25.00/3.5, 25-36.00/1.5,
25x12.00DC, 25x13.00DC
26": 26-20.00/1.1
27": 27-23.5/2.5
29": 29-17.00/3.5, 29-22.00/3.0, 29-24.00/3.5, 29-25.00/3.5, 29-27.00/3.5
33": 33-13.00/2.5, 33-28.00/3.5
34": 34-14.00/1.3, 34-16.00/1.5
35": 35-15.00/3.0, 35-17...00/3.5,
49": 49-17.00/3.5, 49-19.5/4.0,
51": 51-22.00/4.5, 51-24.00/5.0, 51-26.00/5.0, 51-40.00/4.5
57": 57-27.00/6.0, 57-29.00/6.0, 57-32.00/5.0, 57-32.00/6.0, 57-36.00/6.0, 57-44.00/5.0, 57-
44.00/6.0, 54-47.00/5.0, 54-47.00/6.0
63": 63-41.00/5.0, 63-44.00/5.0
(3)Agricultural Wheel / Tractor Wheel Rim / WDC Wheel Rim / DW Series Steel Wheel Rim
12": 4.00Bx12, 12X4j, , 5.00s-12, 7.00-12,
13": 13x4 1/ 2J, 13x4J
14": 14x4 1/ 2J
15": 15x6J, 15x5 1/ 2J, 15x6J, 15x8JJ, 7.00T-15
15.3": 9.00x15.3
15.5": 13.00x15.5, 15.5x16.00
16": 16x6 1/ 2J, 16x7J, 16x8J, 11x16
16.5": 16.5x8.25, 16.5x9.75
17": 17x7J, 17x8J, 13x17, 16x17
18": 18x8J, 18xW9, 9x18, 11x18, 13x18
19.5": 19.5x13.00, 19.5x14.00
20": 9.00x20, 11.00x20, 13.00x20, 14.00x20, 16.00x20
20.5": 20.5x14.00,
22": 8.00x22, 8.00-22
24": 11x24, 13x24, 14x24, 16x24
25": 12.00x25, . 14.00x25
22.5": 22.5x11.75, 22.5x16.00, 22.5x20.00
26.5": 26.5X24.00, 26.5X20.00
W Series
20": W7x20, 20xW7, 20xW8, 20x8J, 20xW9
22": 22x8J
24": 24xW7, 24xW8, 24xW10, 24xW12, 24xW15, 24xW16L, 24xW17
26": 26xW12, 26xW13
28": 28xW10, 28xW11, 28xW12, 28xW13, 28xW14L
30": 30xW12, 30xW14L, 30xW14
32": 32xW10, 32xW8
34": 34xW15, 34xW14L
38": 38xW11, 38xW12, 38xW15L, 38xW16L, 38xW18
48": 48xW7
DW Series Wheel:
24": DW15Lx24
26": DW20x26, DW25X26
28": DW15Lx28
30": DW14x30
32": DW27x32, DW21X32
34": DW15x34, DW34x15
38": DW11x38, 38xDW11,
Forklift Wheel Rim / Industrial Wheel Rim
8": 2.5C-8, 3.00D-8, 3.50D-8, 4.33R-8
9": 3.5W-9, 3.70R-9, 4.00E-9, 4.33R-9, 5.00S-9
10": 5.00F-10, 6.50-10, 6.5F-10
12": 5.00S-12, 8.00G-12, 4.50E-12, 5.00S-12, 6.5F-12, 8.00G-12, 8.00-12
15": 6.00S-15, 6.5-15, 7.00T-15, 7.50V-15, 8.00V-15, 9.00-15, 9.75-15, 11.00-15
16": 6.5-16, 7.00T-16,
20": 20-6.5, 7.00T-20, 20-7.00T, 8.50-20, 10.00-20, 11.00-20, 12.00-20
24": 10.00-24.
25": 12.00x25
| Diameter | Type | Description | Tyres |
| 15" | Multipieces | 15-9.75/1.37 | 12.00-15 |
| 15-11.00/1.5 | 14.5-15 |
| 15-11.50/1.5 | 14.5-15 |
| 16" | Multipieces | 16-8.00/0.83 | 11L-16 |
| 16.5 | Multipieces | 16.5-8.25/0.5 | 10-16.5 |
| 16.5-9.75/0.5 | 12-16.5NHS |
| 17.5" | Multipieces | 17.5-10.50/0.5 | 14-17NHS |
| 18" | Multipieces | 18-9.00/1.0 | 12.5/80-18 |
| 20" | Multipieces | 20-7.50/1.7 | 10.00-20 |
| 20-8.0/1.7 | 11.00-20 |
| 20-8.0/2.0 | 12.00-20 |
| 20-8.50/1.7 | 12.00-20 |
| 20-9.00/1.7 | 13.00-20 |
| 20-10.00/1.7 | 14.00-20 14.00R20 365/80-20 |
| 20-10.00/2.0 | 14.00-20 14.00R20 |
| 20-11.00/1.6 | 12.5-20 |
| 20-12.00/2.0 | 15.5-20 16.00-20 |
| 20-13.00/1.0 | 16/17-20 |
| 20-14.00/2.0 | 17.5-20 |
| 20-15.00/1.0 | 500/70-508 |
| 20-15.00/1.7 | 18L-20 |
| 20-15.30/2.0 | 500/70-508 |
| 21" | Multipieces | 21-11.25/2.0 | 16.00-21 |
| 21-17.00/2.0 | 20.00-21 1300X530-533 |
| 21-18.00/1.5 | 24.00R21 24.00-21 |
| 21-18.00/1.7 | 24.00R21 24.00-21 |
| 22" | Multipieces | 22-17.00/2.0 | |
| 23" | Multipieces | 23-11.00/1.5 | 14.00-23 |
| 23-18.00/2.0 | 24.00-23 |
| 24" | Multipieces | 24-8.00/1.7 | 13.00-24 |
| 24-8.50/1.7 | 12.00-24 |
| 24-10.00/1.7 | 14.00-24 |
| 24-10.00/2.0 | 14.00-24 |
| 24-10.00VA | 14.00-24 16.00-24TG |
| 24-11.25/2.0 | 16.00-24 |
| 24-15.00/1.0 | 17.5-24 |
| 24-16.00/1.1 | 19.5-24 |
| 24-16.00/1.7 | 54*21-24 |
| 25" | Multipieces | 25-8.50/1.3 | 13.00-25 |
| 25-9.50/1.7 | 14.00R25 |
| 25-10.00/1.5 | 14.00-25 14.00R25 |
| 25-11.00/1.7 | 16.00-25 |
| 25-11.25/2.0 | 16.00-25 |
| 25-12.00/1.3 | 15.5-25 |
| 25-13.00/2.5 | 18.00-25 |
| 25-14.00/1.5 | 17.5-25 |
| 25-14.00/2.0 | 17.5-25 |
| 25-15.00/3.0 | 21.00-25 |
| 25-17.00/1.7 | 20.5-25 |
| 25-17.00/2.0 | 20.5-25 |
| 25-19.50/2.5 | 23.5-25 |
| 25-22.00/1.84 | 26.5-25 |
| 25-22.00/3.0 | 26.5-25 |
| 25-24.00/2.5 | 29.5-25 |
| 25-24.00/3.0 | 29.5-25 |
| 25-25.00/3.5 | 26.5-25 |
| 25-36.00/1.5 | 24.00R35 |
| 26" | Multipieces | 26-16.00/1.1 | 18.4-26 |
| 26-20.00/1.1 | 23.1-26 |
| 27" | Multipieces | 27-21.50/2.4 | 57X25-27/50 |
| 27-23.50/2.5 | 57X25-27/50 |
| 27-24.50/2.4 | 26.00-27 |
| 28" | Multipieces | 28-15.00/1.0 | 16.9-28 |
| 29" | Multipieces | 29-17.00/3.5 | 24.00-29 |
| 29-24.00/3.0 | 776/65R29 775/65R29 |
| 29-24.00/3.5 | 776/65R29 775/65R29 |
| 29-25.00/3.5 | 29.5R29 |
| 29-27.00/3.5 | 33.25R29 |
| 33" | Multipieces | 33-13.00/2.5 | 18.00-33 |
| 33-26.00/1.14 | |
| 33-28.00/3.5 | 33.5R33 36/65R33 |
| 33-32.00/4.5 | 37.5 R 33 |
| 34" | Multipieces | 34-14.00/1.3 | |
| 34-16.00/1.3 | 53X18-34 |
| 35" | Multipieces | 35-15.00/3.0 | 21.00-35 |
| 35-17.00/3.5 | 24.00-35 |
| 35-22.00/3.5 | SOLID TYRE |
| 45" | Multipieces | 45-36.00/4.5 | 45/65R45 |
| 49" | Multipieces | 49-17.00/3.5 | 24.00-49 |
| 49-19.50/4.0 | 27.00-49 |
| 51" | Multipieces | 51-22.00/3.0 | SOLID TYRE |
| 51-28.00/4.5 | SOLID TYRE |
| 57" | Multipieces | 57-29.00/6.0 | 40.00R57 46/90R57 |
| 63" | Multipieces | 63-36.00/5.0 | 53/80R63 |
| 63-41.00/5.0 | 55/80-63 |
| 63-44.00/5.0 | 58/80-63 |
With presence in over 70 countries across 6 continents, Qingdao J&G International Trading Co., Ltd has fastly grown up an One-stop professional supplier of a wide range of tires & wheels, and axles in China. We are to deliver superior value to our customers through focus on products, innovation, technology and cost efficient manufacturing and distribution practices.
The main component of Qingdao J&G's business is to supply the Mulitstar brand tires & wheels, and axles for the global "OEM" and aftermarkets, particularly for the farming applications, comerical vehicles, construction & earthmover equipments. Meanwhile, we are also supply a full specifications of steel wheels for mining, port handlings, Off-the-Road construction equipments. As well Alloy truck wheels are also available by us.
We have a well stocked warehouse in the Harbor of Qingdao now. A new bigger warehouse owned us is under construction, which is more than 2, 000 square meters. We can not only meet the demands of prompt shipment but also meet the demand of wheel assembly of tyres and rims for "OE" manufactures for the domestic and overseas markets.
Our extensive inventory of over 3000 units of complete wheel assemblies, and various range of tyres and rims, and also inner tubes and valves, clearly separaters them from our competition.
