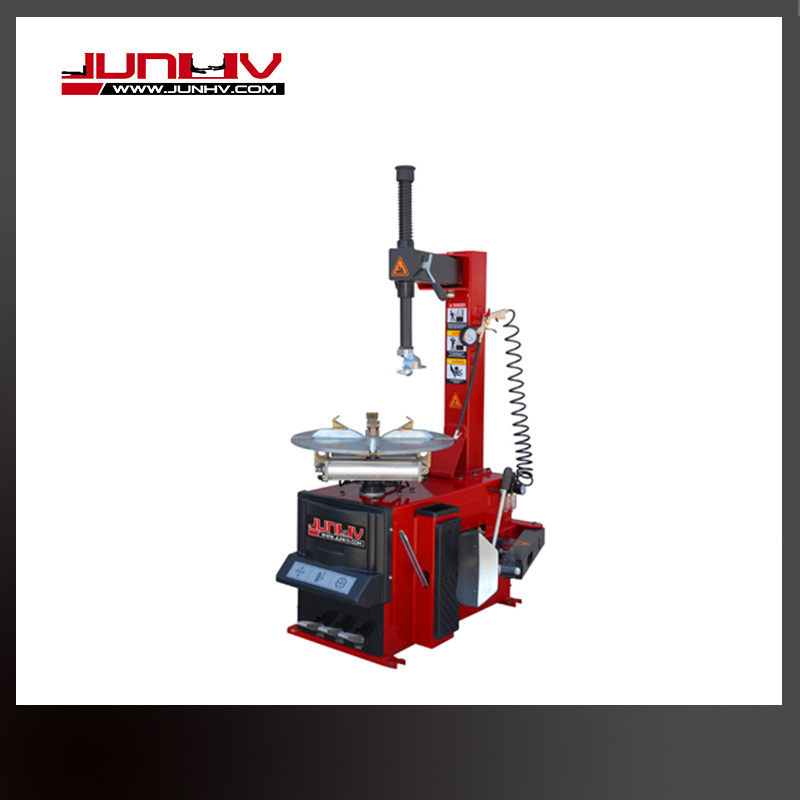

Standard semi used tire changer machine for tyre service
Feature:1.hig density aluminm casting bead breaker cylinder piston provide increased service lift
2.Adjust ing mobile slider to be suitable for different rim ranges
3.the motion structure of the four automatic alifnment aripping jaws on the turnplate is link mechanism,which has
synchronizing function and fix center automatically when gripping from outside to inside
4.the once forming mobile slider and the design of processing machinery structure made it not easy to deformation
5.when the machine is running ,the noise is low
6.the tools touching rim directly like changing working head,jaws,crowbar and spade are all equipped with
protector,these protectors ensure no hurt to the rim
7.Machine quality:this product gained europe Ce certification
Specification: | Max.wheel dia. | 650mm |
| Wheel width | 3-13" |
| Rim clamping from outside | 10-17" |
| Rim clamping from inside | 12-20" |
| Bead breaker pulling force | 2500kgs |
| operation pressure | 0.7-0.8 Mpa |
| Motor power | 1.1kw/0.75kw |
| Power supply | 110V/220V/380V |
Similar product:
Quality management:To guarantee high quality and efficient management, we have passed ISO9001 quality management system
certificate and the CE certification. All of our products are 100% inspected before shipment.Whole manufacturing
processes are under a veryserious and strict system.
Company Introduction:JUNHV (Junhv Automobile Inspection Device Co.,Ltd.)
strives for providing customers high quality automotive equipment with best price. All the members of Junhv have rich experience and innovative spirit. The products are good reputed among all customers not only for the high quality guarantee but also for the superior services.
We have established long standing and stable business relationships with many renowned company,exported top
Asia, Europe, America and Austral.
| FAQ |
| Q1 | What's the delivery term for making business with us? |
| A | Usually we send the shipments in FOB term.However, the terms of CIF and C&F are acceptable which depend of clients. |
| Q2 | What's the delivery time after placing the order? |
| A | Usually it takes 3 weeks after receving your receipt payment .However, it would depend on our production line schedule(the timing clients place order)and the complication of the item. |
| Q3 | What's the payment? |
| A | By T/T, 50% is paid in advance; balance befor delivery |
| Q4 | What's the min order? |
| A | 1 set. |
| Q5 | What's the warranty? |
| A | 1years for free |
Junhv Auto Maintenance Equipment Co., Ltd established in '2013. Has over 5 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.
Junhv strives for providing customers high quality automotive equipment with best price. All the members of Junhv have rich experience and innovative spirit. The products are good reputed among all customers not only for the high quality guarantee but also for the superior services.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
