Name: Standard Model Ce Hot Sale Spray Booth for Car
Brand: ibuyautoparts.com
SKU: 672490965
Availability: InStock
Rating: 4.3 (91 reviews)

Price:	US $ 5500-8650/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-8400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CE
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

BZB Spray booth is a national paint booth supplier speciallizing in automotive spray booth, including furnitures, wood finishing spray booth.
Our personel have over ten eyars experience in the paint booth.

What sets us apart from our competitors is our superior craftsmanship, vast experience, fantastic customer service and affordable pricing.

BZB-8400 SPRAY BOOTH
Outside Size (mm)	7000×5560×3430	Front Door(mm)	3000(w)×2700(H)
Inside Size(mm)	6900×4000×2750	Total Power(km)	16kw

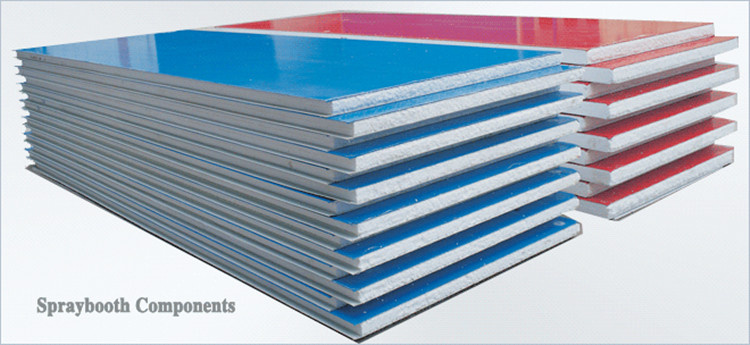

Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation
	Basement	Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps
Air Circulation System	Inlet Fan	Model: YDW 4.5L1	Outlet Fan	Model: YDW 5.6S
		Blower capacity: 24000m 3 /h		Blower capacity:15000m 3 /h
		Pressure: 815Pa		Pressure: 810Pa
		Rolling speed: 900rpm		Rolling speed: 900rpm
		Power: 4kw		Power: 5.5kw
		Quantity: 2 sets		Quantity: 1set
	Air Volume: 24000m 3 /h; Air Speed: 0.35m/s;
Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10μm. Ceiling Filter Capture Granules Bigger than 4μm. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.4mg/m 3
Heating System	Burner	Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h, 20N Damp Motor
	Heat Energy Converter	SUS304 Stainless Steel heat exchanger, argon arc welding;
	Max Temp:80, Heating Time:4-6min(20-60), Fuel Consumption: 4-5kg/vehicle
Light System	Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 1000 Lux
Controlling System	Micro-computer programmed controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, Failure alarm, timer
Environmental System	Multi-Layer Fiberglass Filter, active-carbon

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
