| Prod Model: |
SHL-B810 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
380V/50Hz/60Hz |
| Outside Dimension: |
7000*5550*3450mm |
| Inside Dimension: |
6900*4000*2650mm |
| Front Door Dimension: |
3000*2600mm |
| Working Door Dimension: |
800*2000mm |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Shun Li |
Product Description

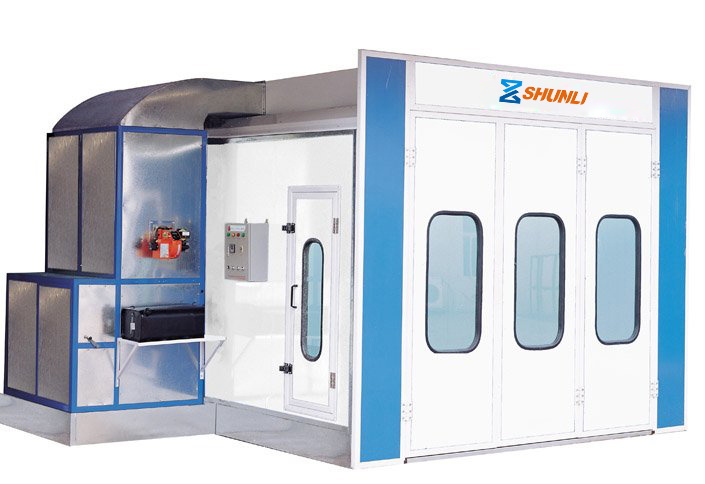

SHL-B810 Spray booth 6.9m*4m*2.65m
Outside dimension:7000×5550×3450mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 800×2000mm(W×H);
Cabin system:
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.376 thick colored steel.
Roof panel: galvanized sheet;
2) Basement: two line grilles, three diamond plates; inside ramps; height is 280mm;
Air circulation system:
| Inhaling Ventilator | Model: YDW-4.5AL1 | Outlet fan for option |
| Blower Capacity: 12000m3/h |
| Pressure: 800Pa |
| Rolling Speed: 900rpm |
| Power: 4kw |
| Quantity: 2 sets |
One set automatic damper, 10N actuator
Generator: slid upward side intake air; rare upward side exhaust; quadrate steel frame;
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter;
Heat system: RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set; the heating time is 5~7 minutes;
Lighting system:≥700Lux
Ceiling Lights: 8Groupsx3Pcs=24Pcs x36W
Glass: all glass is clear tempered glass.
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;
Total power: 10KW
