| Prod Model: |
SHL-B860 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
380V/50Hz/60Hz |
| Outside Dimension: |
7000*5560*3430mm |
| Inside Dimension: |
6900*4000*2650mm |
| Front Door Dimension: |
3000*2600mm |
| Working Door Dimension: |
800*2000mm |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Shun Li |
Product Description

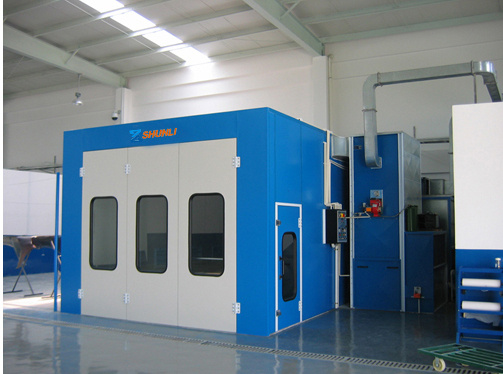

SHL-B860 Spray booth 6.9m*4m*2.65m
Outside dimension:7000×5690×3450mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 800×2000mm(W×H);
Cabin system:
1) Wall panel: 70mm thickness flame-resistant and heat-preserving EPS board; 0.5mm thick colored steel.
Roof panel: 50mm thickness flame-resistant and heat-preserving EPS board; 0.5mm thick colored steel.
2) Basement: adjustable base, complete grilles, all ramps, height is 330mm;
Air circulation system:
Inhaling Ventilator | Model: DDF-630B | Exhaust Ventilator | Model: DDF-630B |
| Blower Capacity: 25000m3/h | Blower Capacity: 25000m3/h |
| Pressure: 560Pa | Pressure: 560Pa |
| Rolling Speed:1440rpm | Rolling Speed: 1440rpm |
| Power: 7.5kw | Power: 7.5kw |
| Quantity: 1 set | Quantity: 1 set |
One set automatic damper, 20N actuator
54 pcs ceiling nozzles with 3 centrifugal fans (2.2kw/set) for drying water base paint
Air volume: 38500m3/h; air speed: 0.5m/s; air recycling times: 400times/h
Two-corner air dry systems separately controlled to fasten the water based paint drying.
Generator: separate air inlet and outlet duct and cabin; quadrate steel frame; specially design of the heating recovery system for saving energy effectively
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter, active carbon;
Heat system: stainless steel SUS304 heat exchanger, RIELLO RG5S diesel burner one stage, heating capacity is 260000Kcal/h, electric damper from spraying to baking cycle; the heating time is 5~7 minutes; with heat recovery system for energy the second time used, effectively save energy. The efficiency of recovery is 30%.
Lighting system:≥1000Lux
Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W; side lights: 8Groupsx2Pcsx2rows=32Pcs x36W
Glass: all glass is clear tempered glass.
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, emergency stop, temperature controller, temperature limit controller, air pressure meter, emergency stop, breakdown alarm;
Total power: 23.5KW
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
