| Prod Model: |
WLD9200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Size: |
7000*5450*4000mm |
| Internal Size: |
6900*3900*2800mm |
| Air Flow: |
30000m3/H |
| Air Speed: |
0.3-0.5m/S |
| Power: |
20kw |
| Vehicle Suited: |
Saloon Car/Jeep/SUV |
| Model: |
Wld-9200(CE) |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Condition: |
New |
| Substrate: |
EPS |
| Paint Mist Treatment: |
We & Dry Type |
| Brand: |
Weilongda |

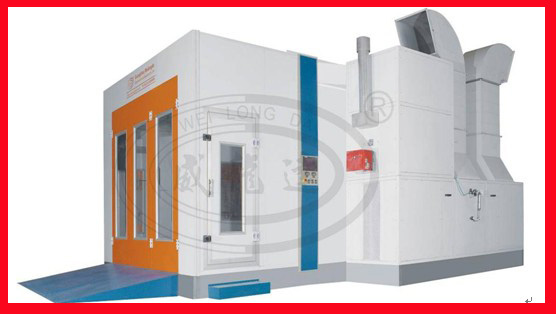

Product Description

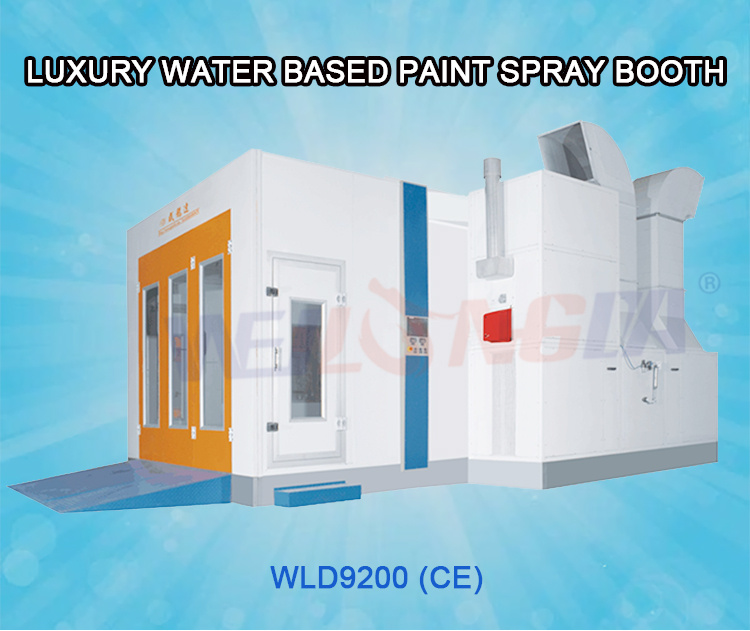

1. Spray booth for water based paint. CE certificate we have
2. Excellent technology with touch screen control spray booth
3. High quality and factory cost spray booth

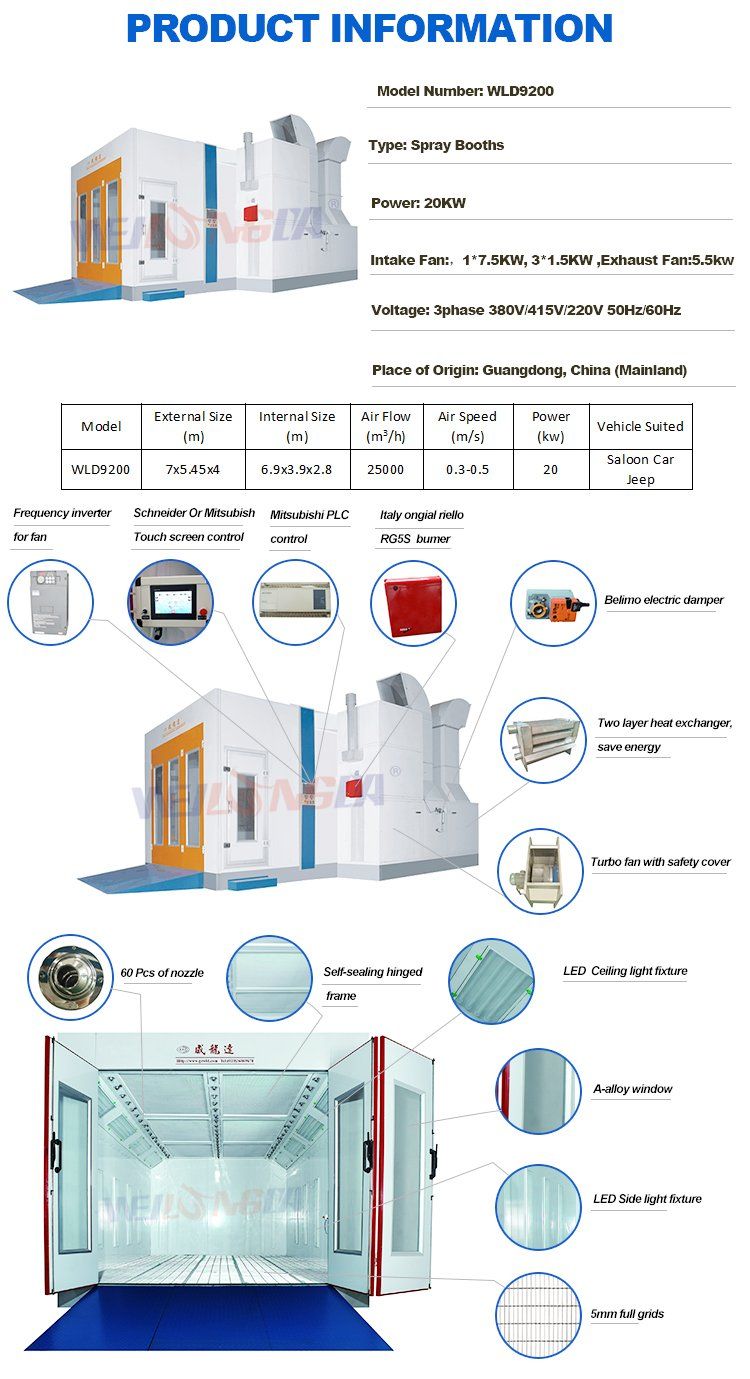

Configuration:- Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
- Basement: Galvanized steel sheet and square steel pipe construction. Whole grids with floor filter. Full ramps.
- Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.
- Air Circulation System: 1x7.5kw direct drive intake fan, 1x5.5kw direct drive exhaust fan. High quality Air drive damper (BELIMO 20N electric damper for Option).

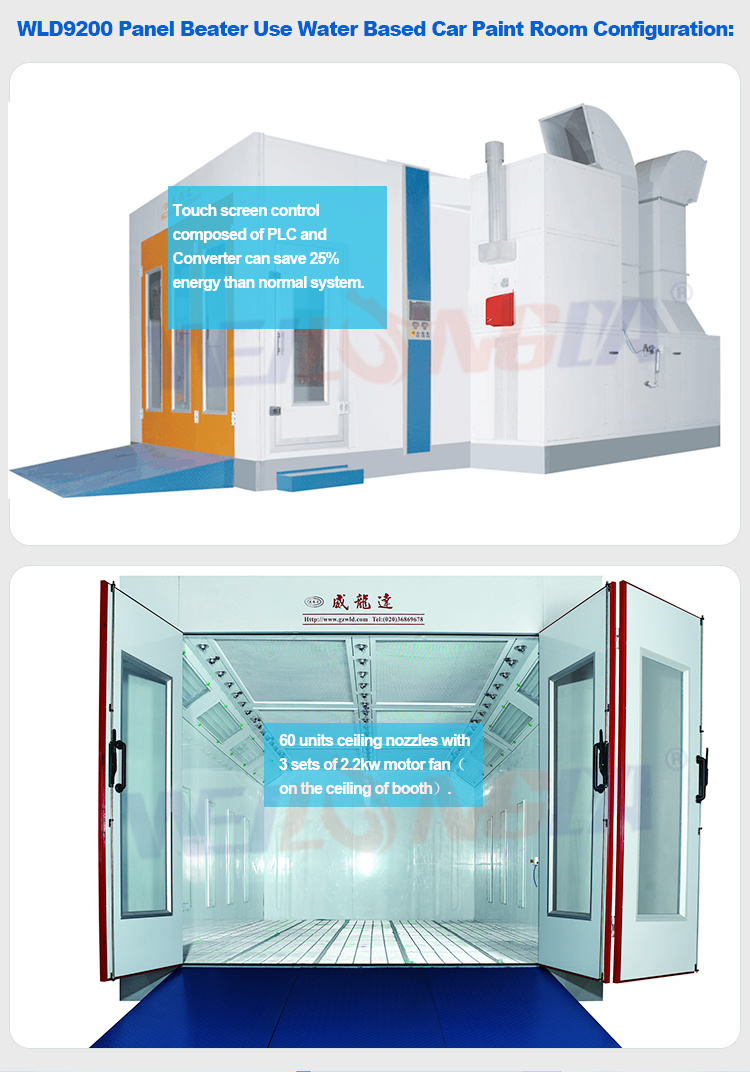

- Water Based Paint Drying System: 60 units ceiling nozzles with 3 sets of 1.5kw centrifugal fans.
- Burner: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60.C). Max. temperature at 80.C. Fuel consumption is 5-6kg/vehicle.
- Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
- Lighting System: Ceiling light has 32 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps. 900 Lux.
- Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
- Control System: Touch screen control, the system is composed of PLC, Converter, air pressure transducer and Snyder electronic components. Automation Intelligent control which can save 25% energy than normal system.
- Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.
| Model | External Size (m) | Internal Size
(m) | Air Flow (m3/h) | Air Speed (m/s) | Power
(kw) | Vehicle Suited |
| WLD9200 | 7x5.45x4 | 6.9x3.9x2.8 | 25000 | 0.3-0.5 | 20 | Saloon Car , Jeep, SUV |
