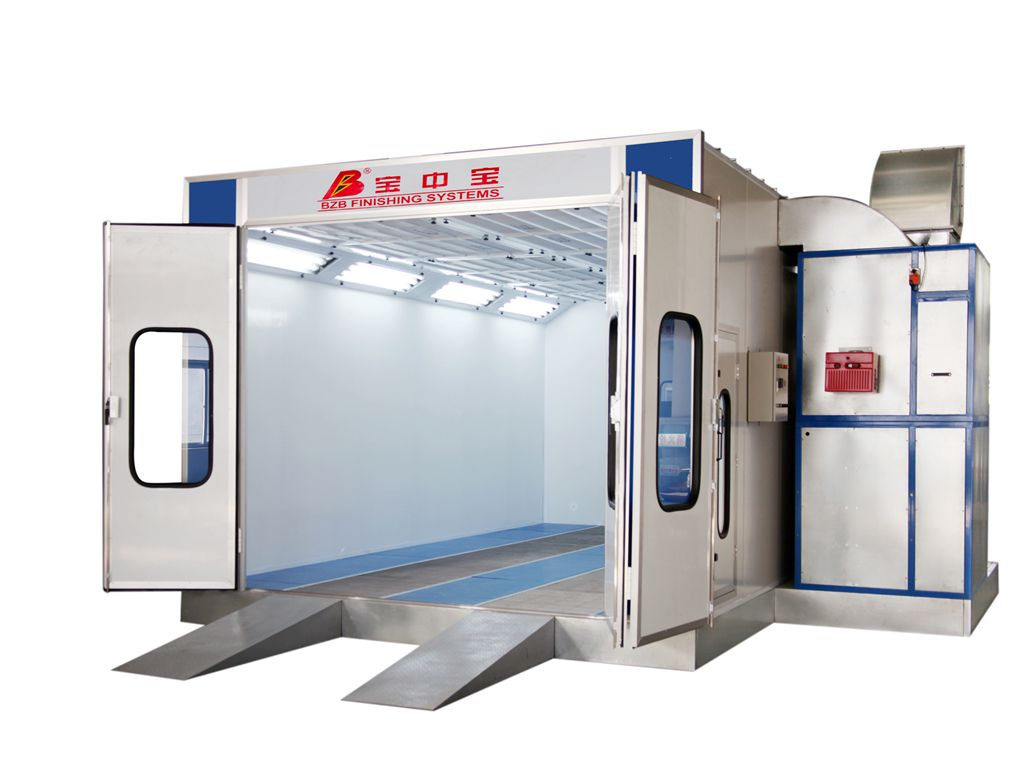

Spray Booths Type Car Paint Booth Price

Name: Spray Booths Type Car Paint Booth Price
Brand: ibuyautoparts.com
SKU: 735315015
Availability: InStock
Rating: 4.5 (22 reviews)

Price:	US $ 3500-7650/Set
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZB-8200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colors:	Optional
Voltage:	as Require
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

Paint spray chamber: Producing specially designed Painting and Drying spray booths suitable for your painting work of all types of vehicles; BZB brand spray booth is with a concept of a customer-focused attitude
8200 Spray booth 6.9m*4m*2. 65m
Outside dimension:7000×5550×3430mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 800×1800mm(W×H);
Cabin system:
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS board; 0.426 thick colored steel.
Roof panel: galvanized sheet;
2) Basement: two line grilles, three diamond plates; complete ramps; height is 280mm; two ramps;
Generator: slid upward side intake air; rare upward side exhaust; quadrate steel frame;

Inhaling Ventilator	Model: YDW-4.5AL1	Outlet fan for option
	Blower Capacity: 24000m 3 /h
	Pressure: 800Pa
	Rolling Speed: 900rpm
	Power: 4kw
	Quantity: 2 sets

One set automatic damper, 10N actuator
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter;
Heat system: RIELLO G20 diesel burner one stage, heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle; oil consumption 4~6L/set; the heating time is 5~7 minutes;
Lighting system:≥900Lux
Ceiling Lights: 8Groupsx3Pcs=24Pcs x36W
Glass: all glass is clear tempered glass.
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, emergency stop, breakdown alarm;
Total power: 10KW

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
