| Prod Model: |
SHL-B850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
380V/50Hz/60Hz |
| Outside Dimension: |
7000*5550*3450mm |
| Inside Dimension: |
6900*4000*2650mm |
| Front Door Dimension: |
3000*2600mm |
| Working Door Dimension: |
800*2000mm |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Shun Li |
Product Description

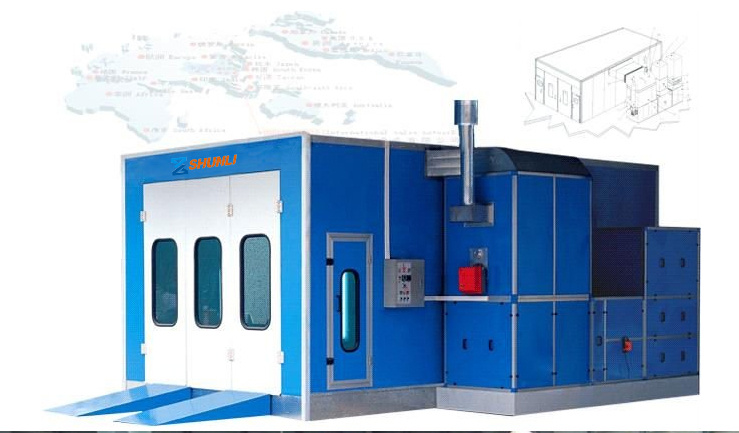

8500 Spray booth 6.9m*4m*2.65m
Outside dimension:7000×5550×3450mm(L×W×H);
Inside dimension: 6900×4000×2650mm(L×W×H);
Front door dimension: 3000×2600mm(W×H);
Working door dimension: 800×2000mm(W×H);
Cabin system:
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS panel; 0.476 thick colored steel.
Roof panel: 50mm thick flame-resistant and heat-preserving rock wool panel; 0.476 thick colored steel.
2) Basement: adjustable base, complete grilles, three ramps, height is 280mm;
Air circulation system:meter;
| Inhaling Ventilator | Model: YDW4.5L | Exhaust Ventilator | Model: YDW5.6M |
| Blower Capacity: 24000m3/h | Blower Capacity: 21000m3/h |
| Pressure: 800Pa | Pressure: 800Pa |
| Rolling Speed: 940rpm | Rolling Speed: 900rpm |
| Power: 4kw | Power:7.5kw |
| Quantity: 2 sets | Quantity: 1 set |
One set automatic damper, 20N actuator
Generator: separate air inlet and outlet duct and cabin; quadrate steel frame;
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter, active carbon;
Heat system: RIELLO RG5S diesel burner one stage, heating capacity is 260000Kcal/h, electric damper from spraying to baking cycle; the heating time is 5~7 minutes;
Lighting system:≥1000Lux
Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W
Side Vertical Lights: 8Groupsx2Pcs=16Pcs x36W
Glass: all glass is toughened glass.
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, emergency stop, temperature controller, temperature limit controller, air pressure meter, emergency stop, breakdown alarm;
Power: 17.7KW
