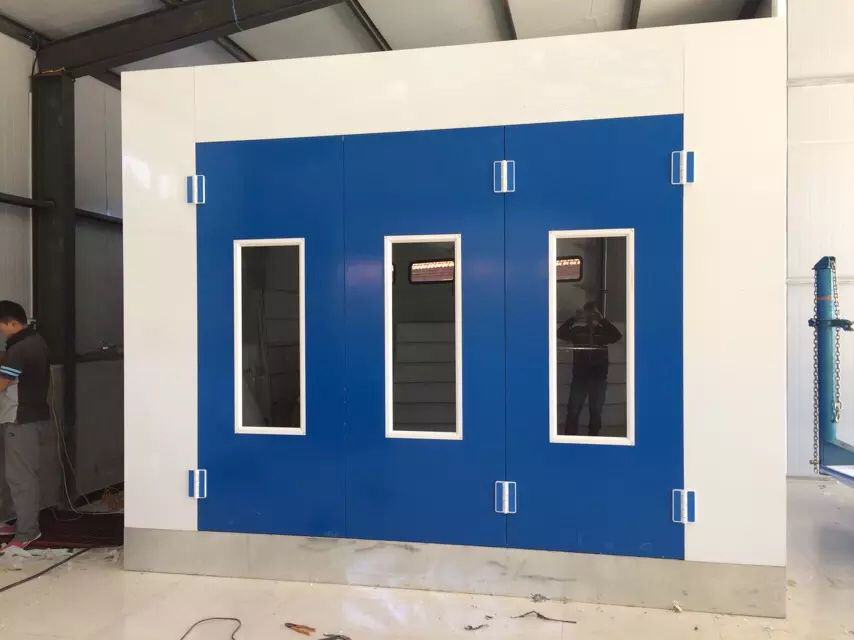

1,XINLIHUI Machinery YH9300M Product Overview:(1)Wallboard systemPlug type Composite board, edge of wallboard all around is covered by aluminium alloy, there are two types of thickness 50mm and 75mm, and also two types of stuffing fire retardant foam and high temperature resistant fireproofing rock wool, four colors for your choice including orange, red, white and sliver. The gate has two types: manual sheet metal and Composite board all around is covered by aluminium alloy(2)Basement frameHeight of platform is 30cm, two types of supporting beam: channel beam and Galvanizedflanged sectionground grille has this models 30*3mm, 30*4mm, 30*5mm and also use checkered plated
(3)Illuminance systemOn the top, it is 45°, two side it is 36W*3*8group, and Philips light tubes, energy-saving ballast, shadowless, ensure that meet the requirements of spraying lighting waist light can be Optional)(4)Filtering systemThe primary filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The floor filter and filter beside exhaust fan can capture paint and dust emission when painting. The air cleanliness in the working environment can reach 98%.
(5)Intake and exhaust systemAir bellows is set side, use two sets of fan for spary booth special uses, air flow 25000 m³/h, and use one fan for exhaust, air flow 25000 m³/h,
(6)Environmental protection systemUnder grille with resistance paint cotton, paint mist after ground filtering, be ruled out by fan pipe more after activated carbon adsorption inside Environment protection box , exhaust emissions meet the national standards
(7)Heating systemThere are two system, Diesel or electricity Heated (8)Control systemTemperature can be set up from 0-80, time setting, protection of default phase, electric leakage, and overload2,Main technical parameterExternal size
(L*W*H)MM | 500MM wallboard
| 7000*5150*3225 |
| 75MM wallboard | 7050*5100*3200 |
| Internal size (L*W*H)MM | 6900*3900*2500 |
| Size of gate | 2900*2450 |
| Intake fan capacity | 25000 |
| Air speed | 0.35 |
| Air change time per hour in room | 275 |
| Time of heating up min (20 ºC-60 ºC) | summer:15 winter:25 |
| Light illuminance (Lux) | ≥1000 |
| Air filtering efficiency | ≥95% |
| Noise db (A) | ≤80 |
| Max working temperature | 80 |
| Total power | 33/38 |

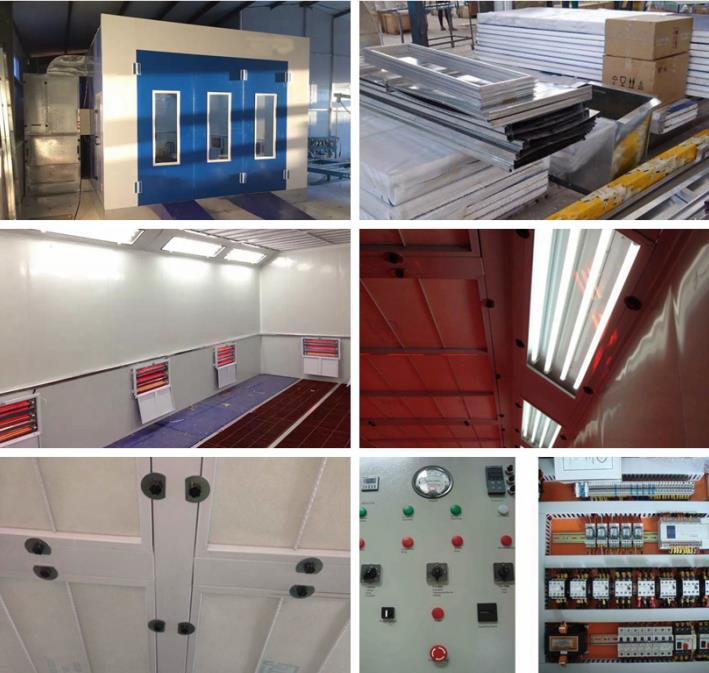

3,Some pictures of our production for you:

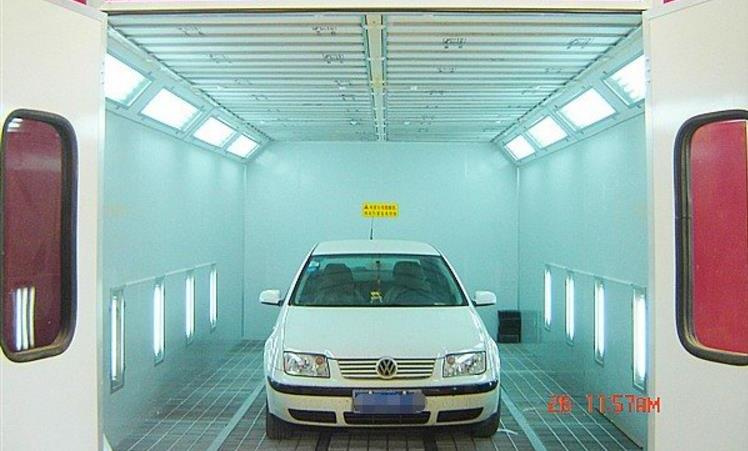

4,Our customers working shop

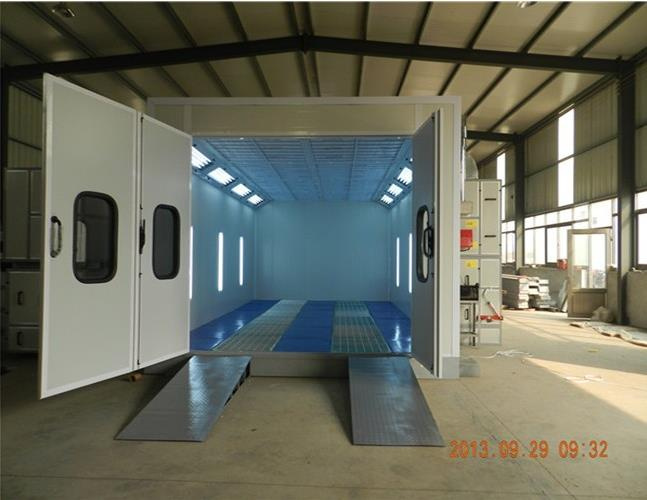

5, Our company working shop
6, Here we promise these :1:One stop service for all kinds of woodworking machines for you
2, high cost performance with reasonable price and our best quality
3:15-20 days delivery time
4:Excellent after-sale services
5:24 hours technical support through email or calls.
6:Not only business, hope to make good friend with you
For further information about machine or price or other service , plz contact with us by email or QQ or wechat
Your enquiry are always warmly welcomed
