| Prod Model: |
Captain-2-III |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inside Dimension: |
6300X3450X2800mm(Lxwxh) |
| Outside Dimension: |
7550X3550X3200mm(Lxwxh) |
| Basement & Floor: |
Without Basement |
| Ceiling System: |
6400X3550X520mm (Lxwxh) |
| Intake & Exhaust Air System: |
1X7.5kw Fan |
| Lighting System: |
8units X 4PCS=32PCS36W |
| Sealed Type: |
Backside Is 50mm EPS, The Other 3 Are Curtain |
| Generator Setting: |
Exhaust From Backside |
| Voltage Frequency: |
as Request |
| Total Power: |
8.7kw |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Painting |
| Substrate: |
Sandwich Panel |
| Brand: |
Captain |
Product Description

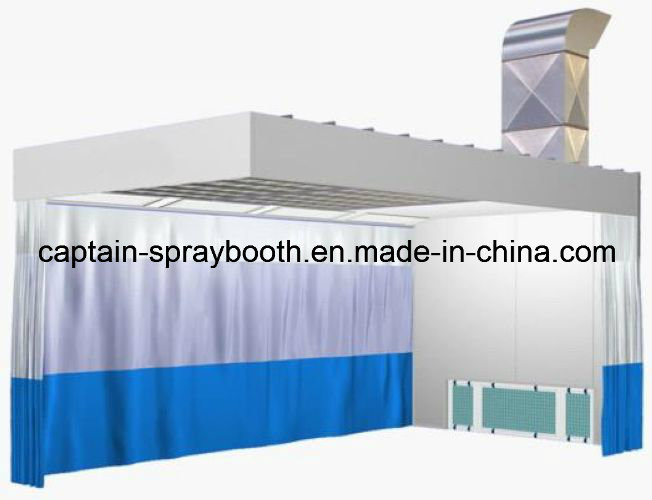

A. Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle.
B. Prep stations speed up the drying process and improve the overall quality of your finished product.
C. Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts.
D. Optional heat units are available for high production needs.
Standard Prep Stations optional
L Semi-Downdraft or Pit-Style Downdraft or Full Downdraft
L With or without overhead plenum
L With or without heater & intake system
L Free-standing with structural steel support or suspended from the shop ceiling
Optional
L Cupboards in the rear of Prep Stations to store painting materials and equipments
L Roll-Up Curtains(motorized controls/manual operation)
Other features
L Overspray and dust control by 95% filter efficiency
L PHILIPS lamps, BELIMO damper and RIELLO burner
L Main electric components are CE listed
L All hardware, fasteners, sealants
L 24 months warranty
L Delivery time of standard prep station can reach 10 business days
L Bubble film packaging for sea transportation in bulk, special steel tray packages are accepted
| Inside dimension | 6300×3450×2800mm(L×W×H) |
| Outside dimension | 7550×3550×3200mm(L×W×H) |
| Basement & Floor | Without basement |
| Ceiling System | Dimension:6400×3550×520mm (L×W×H),with light on 2 sides of roof,part of the roof with filter,small part with airproof plate. |
| Generator Setting | Back exhaust air,with quadrate steel frame,blue coated steel, |
| Intake & Exhaust air system | Generator cabinet dimension: 2290×1200×1800 mm(L×W×H);with 1set 7.5KW fan for exhaust air,belt-drive motor set outside;Air capacity:21000m³/h,Electric damper control the air capacity of intake and exhaust air. |
| Sealed Type | Back side set 50mm EPS heating preservation panel,with PVC soft curtain for the other 3 sides,curtain color: upper part: white,
middle part:transparent lower part: blue |
| Ceiling Installation | Steel rope hanging or steel pole supporting the roof(Option). |
| Filtering System | Pre-filter pocket,Ceiling filter,Floor filter(fibreglass). |
| Lighting System | 8units x 4pcs=32pcs36W |
| Control System | Control the operation of? fan,lighting and electric damper |
| Voltage frequency | As request |
| Total Power | 8.7KW |
