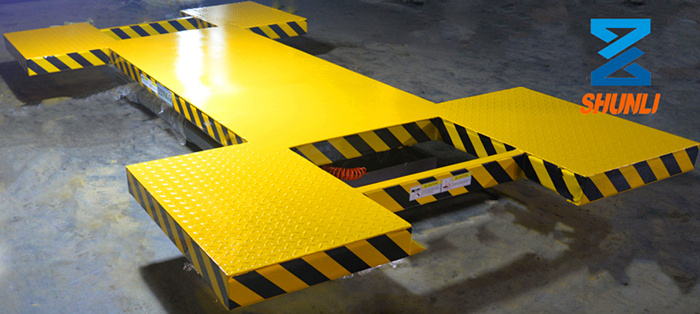

Spray Booth Lift / Paint Booth Lift (SHL-Y-J-BP3.0TGB / BP3.5TGB)

Name: Spray Booth Lift / Paint Booth Lift (SHL-Y-J-BP3.0TGB / BP3.5TGB)
Brand: ibuyautoparts.com
SKU: 776133285
Availability: InStock
Rating: 4.9 (143 reviews)

Price:	US $ 2600/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Technical parameter

Model	SHL-Y-J-BP3.0TGB/BP3.5TGB
Lifting Capacity	3000kg/3500KG
Lifting Height	1300mm
The Platform Length	3800mm
The Platform Width	1900mm
Initial Height	300mm
Motor	3kw
Power	220V, 380V
Air Pressure	0.4-0.6mpa

Product Specification

1. The size of platform can be adjusted according the customer.

2.Oil cylinder built-in explosion-proof device;

3.Mechanical safety locking with features of automatic engagement and pneumatic release;

4.The length of platform is adjustable.

5.Shot blasting and high temperature baking powder coated surface finish;

6.Wear-resisting bearings

7.24V safety control circuit

8.Main hydraulic parts imported from Japan, Germany. High-quality, stable, safe and reliable

9.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity

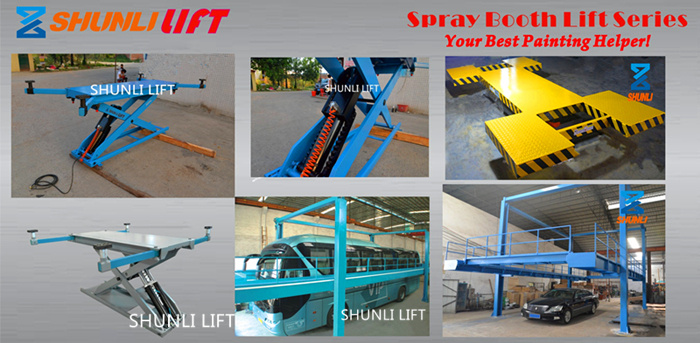

Spray Booth Series

Product Details

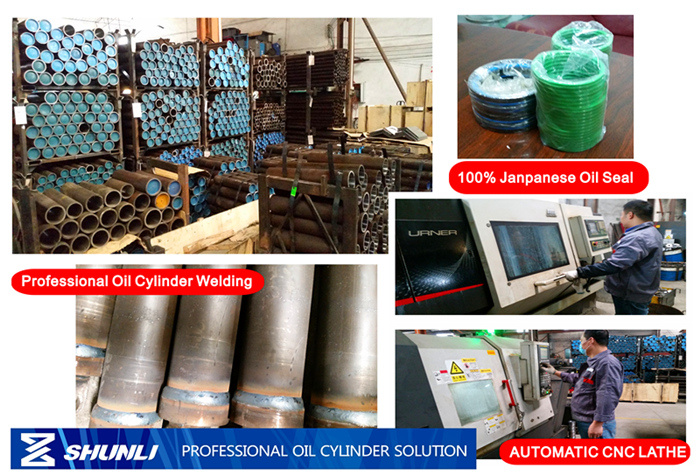

Professional Oil Cylinder Production

Prod Model:	SHL-Y-J-BP3.0TGB / BP3.5TGB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor:	3kw
Lifting Height:	1300mm
Main Lifting Capacity:	3000kg
Type:	One Cylinder Hydraulic Lift
Certification:	ISO
Design:	Scissor
Lifting Capacity:	3000kg / 3500kg
Brand:	Shunli

GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.

The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.

In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.

With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.

We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
