Outside size: (mm)7000x5250x3430
Inside size: (mm)6900x3900x2650
Main door size: (mm)3000(W)x2600(H)
Total power: (kw)8.5
| Item | Detailed specification |
| Inside dimension |
6900×4000×2800 mm(L×W×H) |
| Outside dimension |
7050×5500×3500 mm(L×W×H) |
| Front door |
Folding door, 4 folds, 3200×2600 mm(W×H), without frame cover, color : blue. |
| Emergency door |
1 unit, 650×2000mm(W×H), color: white |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel support, 3 rows grilles made by flat bar and twisted steel, galvanized, 2 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc. |
| Wall panel |
Thickness: 75mm, width:950mm, tongue and groove structure, 0.6mm color steel with rock wool inside, color: white. |
| Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 12Units×4Pcs=48Pcs×18W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux |
| Generator cabinet |
Intake from back upper, exhaust from back upper, white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside. |
| Intake and Exhaust system |
Inlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. |
Outlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. |
| Heating system |
RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000Kcal/h. |
| Spray to baking switch | Auto Pneumatic damper |
| Chimney ducting | 304 Stainless ducting and one safe fireproof chimney elbow. |
| Purification system |
Pre-filter, ceiling filter, fiberglass filter, activated carbon filter |
| Roof |
Galvanized steel |
| Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge. |
| Total power | 18.5KW |
Room system
1.50mm EPS insulation wallpanels, roof panels are high quality galvanized sheets.
2. Main door frames are made of bending section, emergency door at the main door.
3. Room frames are fixed by galvanized sheet.
4. The basement consist of galvanized sheets, Corrosion resistant square steel, reinforce checkered plates.
5. Inside ramps construction.
Air circulation system
1.1*7.5kw Single inlet turbo fan, air capacity: 25000m3/h
2. Air generator group consist of painted section bar and galvanized sheets.
3. Exhaust air duct consist of galvanized sheets and flanges.
4. On-load air velocity: 0.35m/s, air change rate: 320times/h
Purification system
1. Inlet air filter is high quality filter, it can catch 10um dust particle.
2. Roof filter is high-efficient filter, it can catch 5um dust particle.
3. Floor filter is fiber glass filter.
Heating system

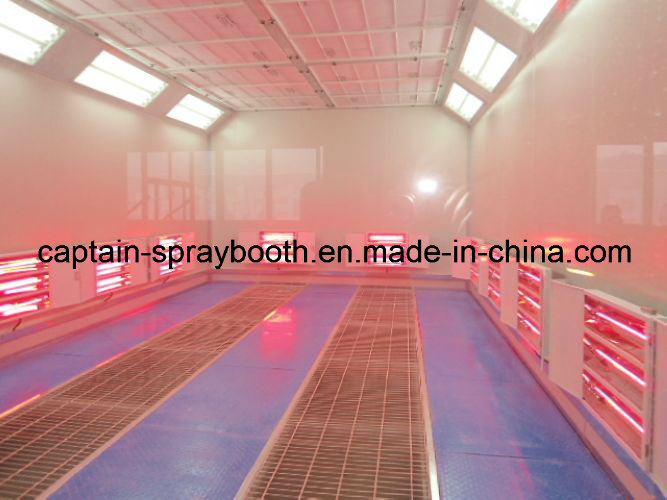

Infrared Lamps System. It consist of infrared lamps and control systems. Two side walls with 24pcs*1kw infrared lamps. Backside wall with 9pcs*1kw infrared lamps.
Total power: 33kw, It adopts 3 sets contactors to control the lamps seperately.
Max temp: 80C, temperature rise speed: 15-20min(work temperature 20-60C).
Lighting system
1. Roof lighting: 24pcs*36w Philips lamps.
2. Illuminance: 700Lux
3. Side lighting system is optional
Control system
1. It adopts high-quality electronic components, Major loop set Multiple protection.
2. It consist of lighting switch, temperature/time setup, normal temperature paint, constant temperature paint, baking switch, emergency stop switch, fault alarm, hour meter etc.
Exhaust gas disposal
1. Direct exhaust
2. Exhaust fan is optional
20'/40'HQ PCS
1 set/20'GP, 3 sets/40HQ
