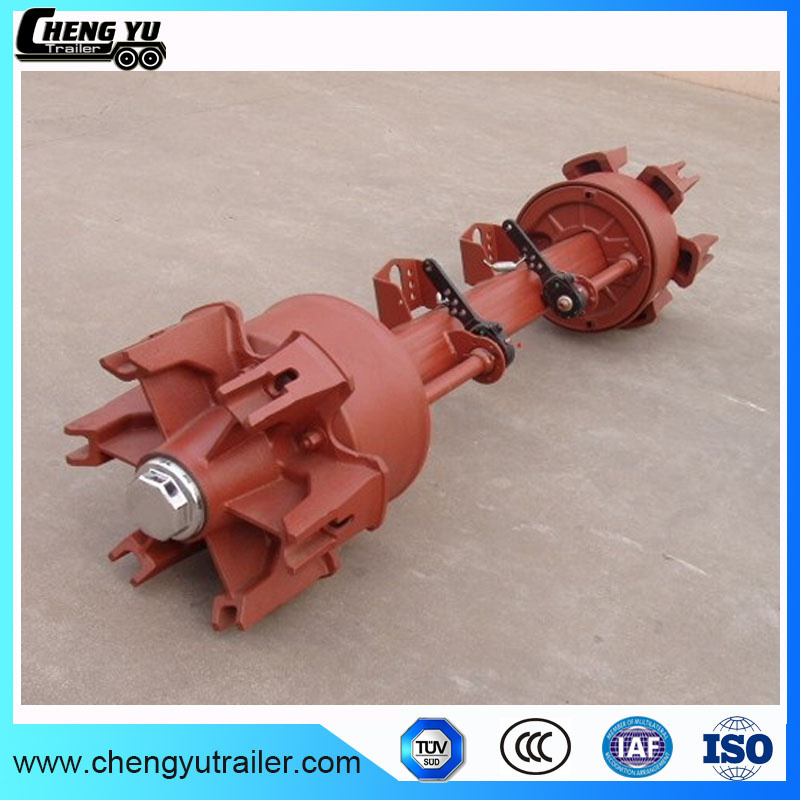

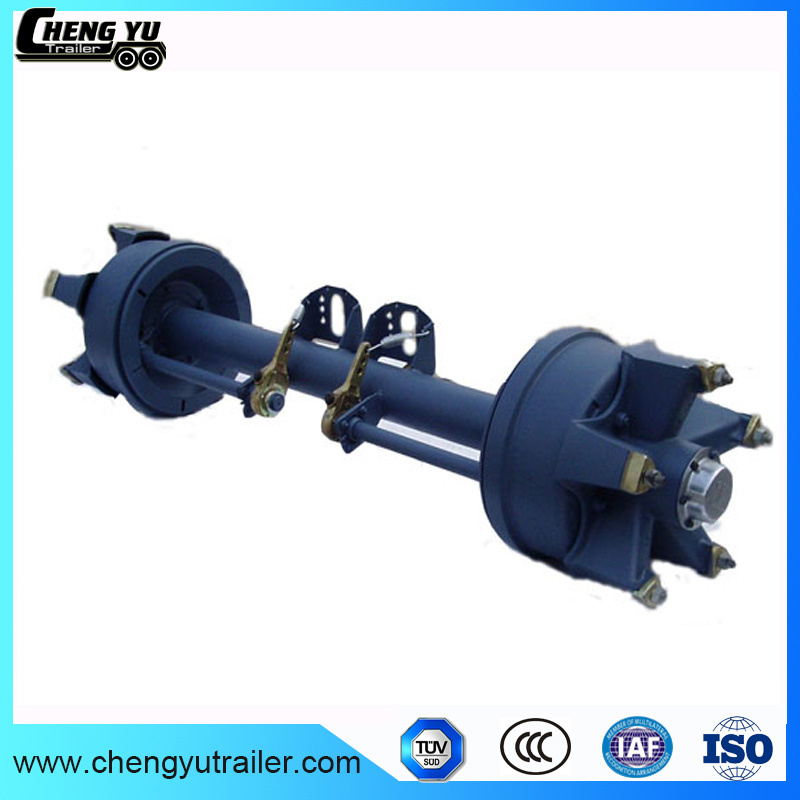

Spider Hub 13t American Axle Used on Truck and Trailer

Spider hub 13t american axle used on truck and trailer





Spider hub 13t american axle used on truck and trailer Introduction:

1.Non-welded trailer axle shaft, can be seen as a rigid beam, the fulcrum is located in the center of the tire, the load and the plate springs.

2.Quality semi-trailer axles are unsprung mass of the vehicle's ride disadvantage.

3.Trailer optional according to user requirements with excellent performance we can use outsourcing assembly parts or parts assembly.

4.Its axis head and shaft are high-quality steel, shaft is integral or welded rectangular hollow section.




Spider hub 13t american axle used on truck and trailer specification

Capacity(kg):15000

Brake Series:420*200

Track length(mm):1840

Spring distence(mm):980

Axle beam(mm):Round 127

Stud(mm):10-M22×1.5 ISO

P.C.D:335

Bearing:HM518445/10

Type:Outboard

All the specifications can be designed as your requirement.


105 (km/h)  Max Capacity  (kg)	Brake Size  (mm)	Track  TR  (mm)	Spring  Seat   Installation  LM (mm)	Axle  Beam  (mm)	Center Distance  Of Chamber  GM (mm)	Studs  (mm)	P.C.D.  (mm)	ΦH  (mm)	Total Length  LP (mm)	Recommend  Wheel	Bearing
8,000	420x150	1850	≤435	O 127	428	10xM22x1.5  ISO	335	281	~2145	7.50V-20	33215/33213
10,500	420×180	1820	≤435	O 127	368	10xM22x1.5  ISO	285.75	220.1	~2165	7.50V-20	(Outer/Inner)  HM518445/10  HM518445/10
10,500	420×220	1840	≤435	O 127	325	10xM22x1.5  ISO	335	281	~2165	7.50V-20
13,000	420×180	1840	≤455	[] 150	390	10xM22x1.5  ISO	335	281	~2185	7.50V-20	(Outer/Inner)  HM518445/10  HM518445/10
13,000	420×180	1840	≤455	[] 150	390	10xM20x1.5  JAP	285.75	221	~2185	7.50V-20
15,000	420×180	1850	≤455	O 127	396	10xM22x1.5  ISO	335	281	~2185	8.00V-20	(Outer/Inner)  HM518445/10  HM220110/49
16,000	420×220	1850	≤455	[] 150	354	10xM22x1.5  ISO	335	281	~2205	8.00V-20
20,000	420×220	1850	≤455	[] 150	354	10xM24x1.5  ISO	335	281	~2270	8.50V-20	(Outer/Inner)  HM518445/10  32222

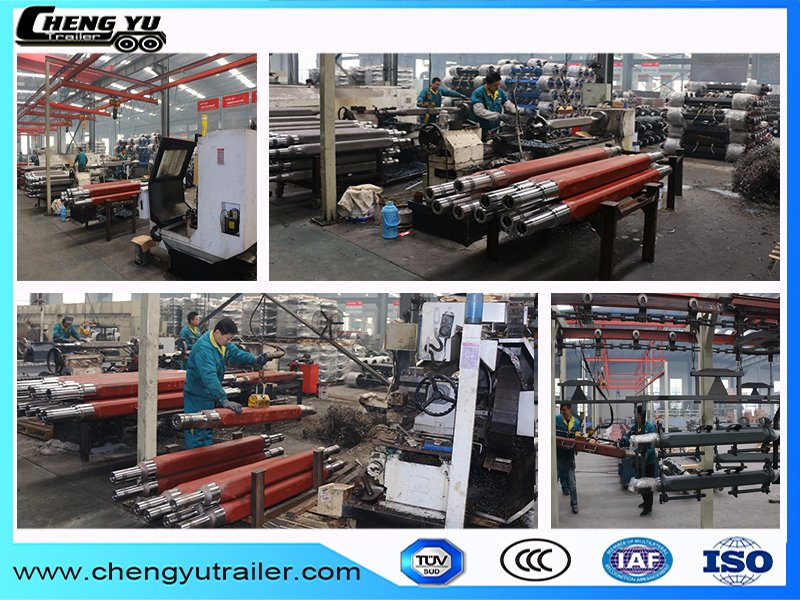

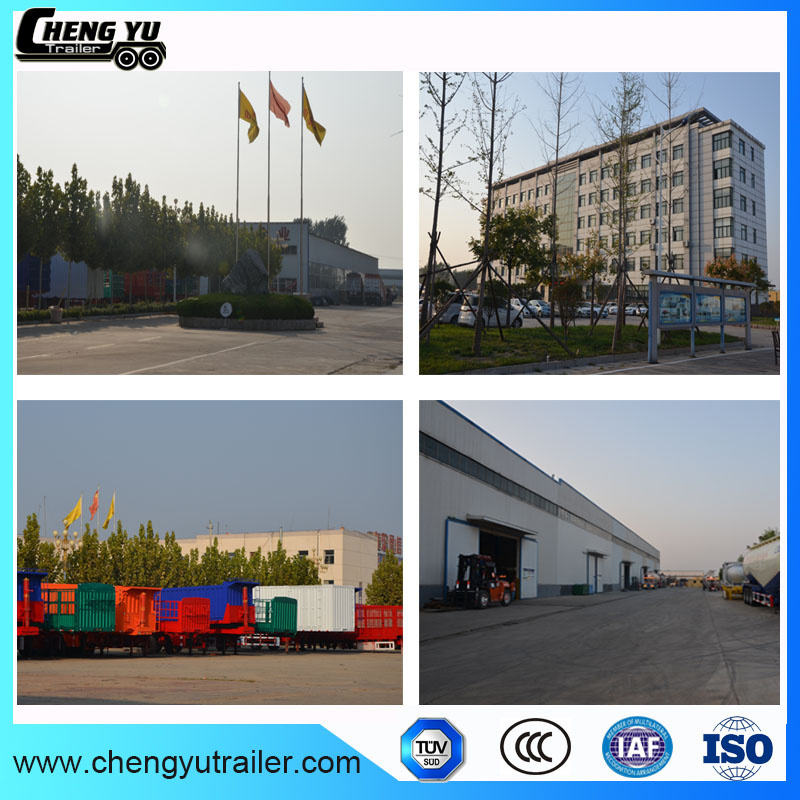

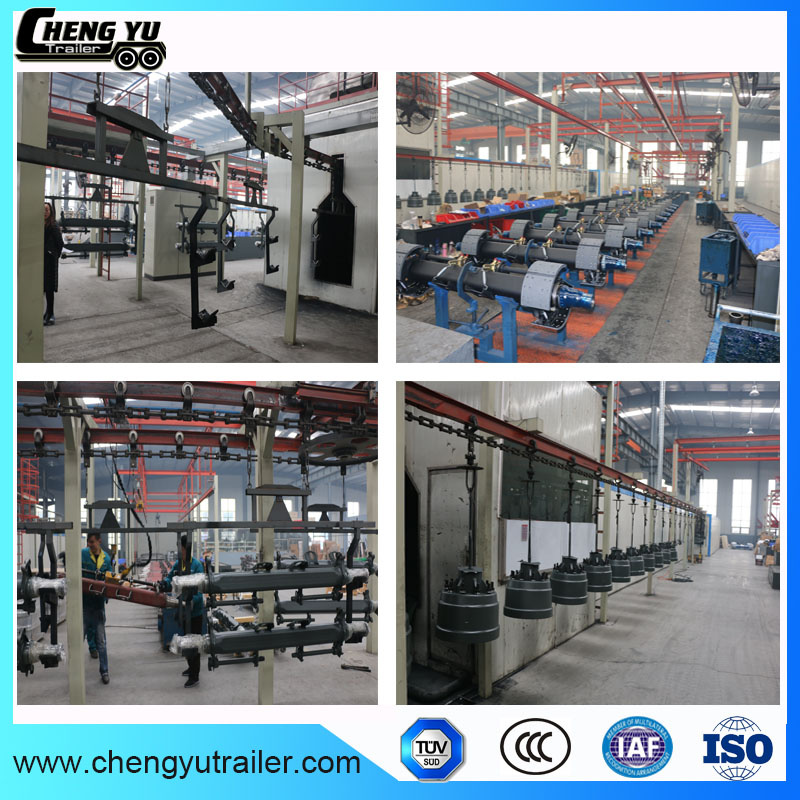

Our factory


Qingdao Shuibo Chengyu Import&Export Co.,Ltd Belongs To Chengyu Group Which Is One of The Biggest Manufacturers For All Kinds Of Trucks, Especially For The Semi Trailers And Parts In Shandong. Located in the famous "Water Margin" hometown -- The "China Special Vehicle Production Base" .

Chengyu Group Has More Than 500 Staffs,Including One 20 Years' Experienced Engineering Technicians Team. With An Annual Output Production Capacity Of 20,000 Sets Of Special Purpose Vehicles, 100,000 Pieces of Semi Trailer Axles,50,000 Sets Suspensions.

Chengyu  can supply various SPARE PARTS for different trucks and trailers,

1. All kinds of semi trailer axle are available, such as BPW type axle, Fuwa axle,American axle, inboard drum axle, outboard drum axle, Spoke axle (spider axle), concave axle, disk brake axle,self steering axle ,low loader axles. Etc.

2.Chengyu suspension factory can supply mechanical suspension, bogie suspension and air suspension with high quality and competitive price.

3,.We are also a professional manufacturer of semi trailers and trailer parts, such as

1)fifth wheels (2" and 3.5"),

2)king pins (2" and 3.5",weldable and Bolted),

3)steel wheel rim and aluminium wheel rim (bogie, spoke bogie, American suspension and German suspension etc),

4)axles (American and German, BPW type and FUWA type,spokeaxle, low loader, concave axle),

5)landing gears (24T,25T,28T,30T inboard gear and outboard gear),

6)other components like twist container locks, screw locks, brake chamber, wheels, tires, and other functional components are also available.

 Chengyu has more than 200 kinds of products for different countries in the world. Sold to more than 30 countries and China.






Our service:

1. OEM Manufacturing welcome: Product, Package...

2. Sample order accepted.

3. We will reply you for your inquiry in 24 hours.

4. After sales service.

5.We will track the products for you once every two days, until you get the products.

6.When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.



There are also more other semi trailer spare parts for your choice,please send us inquiry.
