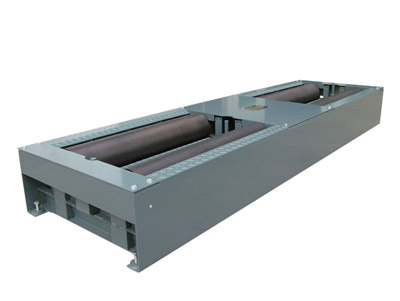

Speed Table

Name: Speed Table
Brand: ibuyautoparts.com
SKU: 724582292
Availability: InStock
Rating: 4.9 (117 reviews)

Price:	US $ 10000/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Model ZHZY-XKSD-3
Item name: speed table
Product Description: synchronous processing inside and outside the drum, dynamic balancing accuracy (6.3), 120km/h speed detection, no vibration
High quality brand air bag lifting, good synchronization, high reliability and long service life
Non contact sensor, reliable and durable,
The quality of high strength steel plate bending body, no anchor bolt installation
Main technical parameters
Model XKSD-3
Maximum allowable axle load mass 3000kg
Wheel moment (inner width / outer width) 700/2400mm
Detection speed 0~120km/h
Drum diameter * length of 190 * 850mm
Overall size (L * w * h) 2800 * 900 * 450mm
Skateboard size 500 * 900mm 1000 * 1000mm
Overall dimensions (L * w * h) 2800 * 660 * 220
Model ZHZY-XKSD-10
Main technical parameters
Model ZHZY-XKSD-10
Maximum allowable axle load mass 10000kg
Wheel moment (inner width / outer width) 600/2800mm
Detection speed 0~120km/h
Drum diameter * length of 190 * 1100mm
Overall size (L * w * h) 3100 * 900 * 480mm
Skateboard size 1000 * 1000mm 1
Overall dimensions (L * w * h) 3000 * 1160 * 220
Model ZHZY-XKSD-15
Main technical parameters
Model XKSD-15
Maximum allowable axle load mass 15000kg
Wheel moment (inner width / outer width) 700/3100mm
Detection speed 0~120km/h
Drum diameter * length of 190 * 1200mm
Overall dimensions (L * w * h) 3100 x 900 * 480mm 3400 * 900 * 480mm
Skateboard size 1000 * 1000mm
Overall dimensions (L * w * h) 3400 * 1160 * 220

Prod Model:	ZHZY-XKDS-3-10-15
Certification:	ISO
Update Method:	by Internet

Zhuhai fostar Machinery Equipment Co., Ltd. is a company engaged in Vienna motor repair testing equipment manufacturing and marketing enterprise, company is equipped with a number of professional and technical class talent, to normal force in the development and production of high-tech products, the establishment of enterprises and improve the management system; And has passed the ISO9001 quality management system certification; Is dedicated to the earliest vehicle diagnosis, detection and maintenance products R & D, production and sales in one of the high-tech enterprises. At present, the main products are brand fushida 3D four wheel aligner, fostar machinery and equipment's has four major brands of 3D four wheel aligner, FOSTAR (fushida) is, ZHZY (hawk), ZHZF (War), ZHTK (tank), and automatic tire dismounting machine, tyre balancing machine series of high-tech products. Products are sold both at home and abroad and at home have good network system of domestic market, products are exported to Russia, Canada, the United States, Australia, Brazil, Germany, Italy, is currently expanding domestic and international markets.
