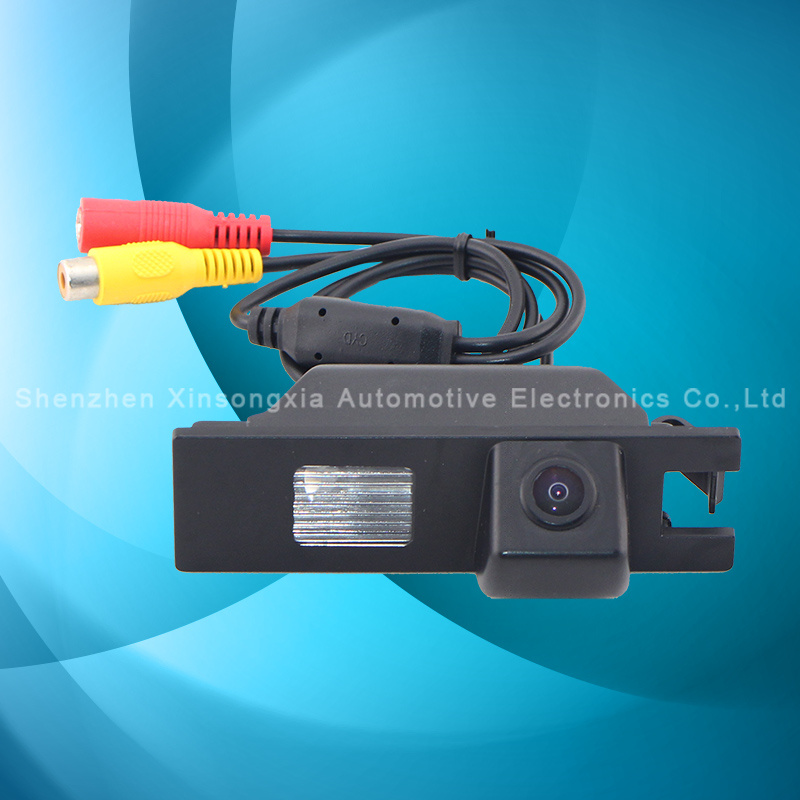

762*504/CCD/CMOS(Low power), 420TVL, Night Vision, Waterproof SHOCK/DUST PROOF FUNCTION came with Vehicle Camera/Car Camera Parking Camera with 170-Degree Wide Angle (Ultra-clear with 762*504 )
Product Features:
1) Original car structure design to a prefect non-destructive installation and flexible installation, which perfectly match up with original car style.
2) This product adopt digital sensor chip to achieve more effective and stable display.
3) Camera has strong capacity of anti-interference, vast of anti-proof Len, to let reversing more security.
4) Multi-player waterproof design, which work out the damage of High pressure washing, foam proof, dust proof and shock proof!
Technical Parameter:
Voltage: DC 12V
Current: 100mA
White balance: Automotive
Grade of waterproof: IP67
Operate temperature: -20-70º C
TV Line: 480Line
Storage space temperature: -40-70º C
Image sensor: CMOS Sensor/CCD
Accessories:
Car Camera
TV line
Specification
Universal accessories
Drill
Screw
|
Product Parameter |
|
NO. |
Item |
Parameter |
Remard |
|
1 |
Image Device |
PC1089K |
|
|
2 |
Chip |
CMOS |
|
|
3 |
Optical Dimensions |
1/3" |
|
|
4 |
Voltage |
DC12V |
|
|
5 |
Waterproof |
IP67 100% |
|
|
5 |
Effictive Pixel |
762*504 |
|
|
6 |
Mimimum LUX |
0.5Lux |
|
|
7 |
Electronic Shutter |
1/60S-1/12000S |
|
|
8 |
White balance |
AUTO |
|
|
9 |
BLC |
AUTO |
|
|
10 |
Signal Out Rate |
1Vp-p 75Ω |
|
|
11 |
Signal Out System |
NTSC |
|
|
12 |
Horizontal Resolution |
420 TV Line |
|
|
13 |
Sync Method |
Inter-sync |
|
|
14 |
Image Display |
MirrorHorizontal |
Mirror positive(Option) |
|
15 |
Identififation Line |
3 COLOR Trapezoid |
Option |
|
16 |
Work Voltage |
DC3.3V±5% |
|
|
17 |
Current |
130mA |
|
|
18 |
Power |
0.43W |
|
|
19 |
Work Tmepureture |
-20ºC+60ºC |
|
