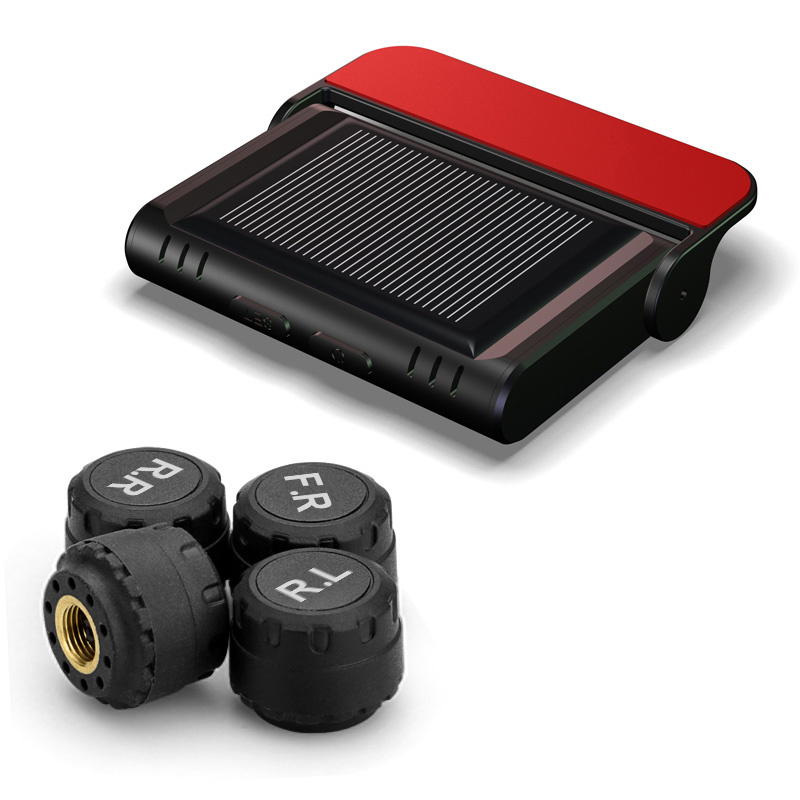

Shenzhen Sunway Industry Co., Ltd. >> Solar Power TFT Display TPMS with 4 External Sensors Rear-Time Monitoring The Pressure & Temperature

Solar Power TFT Display TPMS with 4 External Sensors Rear-Time Monitoring The Pressure & Temperature

Solar Power TFT Display TPMS with 4 External Sensors Rear-Time Monitoring The Pressure & Temperature
Price: US $ 47.5-49.5/Piece
Min Order: 20/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

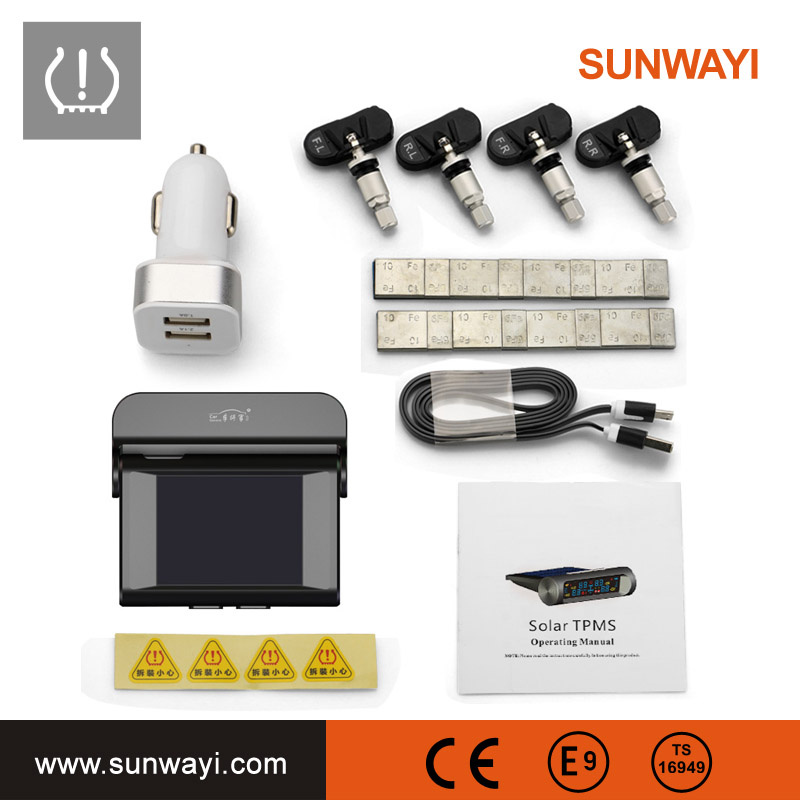

Solar Power TFT display TPMS with 4 External Sensors Rear-time monitoring the pressure & temperature

Solar Power, TFT display directly,Icon moving while warning Rear-time monitoring the pressure & temperature Low air pressure/high temperature warning Set up sensor: learn new sensor ID code when replace sensor

DISPLAYER: Adhere to windscreen for installation,TFT color screen
Display:
1.Storage temperature: - 30ºC~ 80ºC,  Operating temperature: -2 0ºC--7 5ºC,
2.Black Operating Current: < 3 mA,  Bright operating current: < 5 0 mA
3.RF Signal reception sensitivity: - 90 dbm, Operating Voltage: 3.7-5 V
4.RF Transmission frequency: 433 . 92 MHz±50 KHz


Parameter ValueParameter Value
Storage temperature- 30ºC~ 80ºCOperating temperature-2 0ºC--7 5ºC
Black Operating Current< 3 mABright operating current< 5 0 mA
RF Signal reception sensitivity- 90 dbmOperating Voltage3.7-5 V
RF Transmission frequency433 . 92 MHz±50 KHz

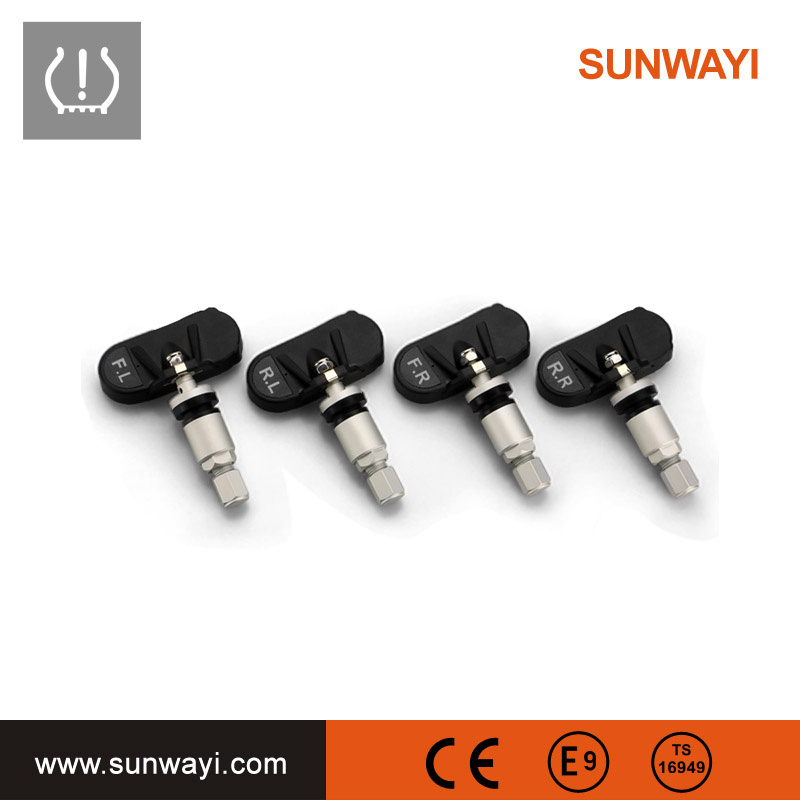

EXTERNAL SENSOR:
1.Working pressure: 0~99 Psi, Pressure accuracy: ±1.5Psi,
2.Battery life: 24 months Transmit Frequency: 433.92 MHz, Transmit power: <10dBm
3.Working Voltage: 2.1~3.6 V, IP:IP67
4.Working temperature: -30~80°C, Storage temperature: -35~85°C, Temperature accuracy: ±2°C
5.Dimension: 21mm(diameter)*17mm(hight), Weight: 8g


Sensor Parameter
 Parameter ValueParameter Value
Working Voltage2.1~3.6VWeight8.0g±1g
Battery life24 MonthsWorking pressure0~99 Psi
Pressure accuracy±1.5PsiTransmit Frequency433.92 MHz
Waterproof DegreeIP67Working Temperature-30ºC~+80ºC
Storage Temperature-30ºC~+85ºCTemperature accuracy±2°C
Transmit power<10dBm

Packaging Details:  Gift Box Size:150*120*70MM

Delivery Details: 3-7 days for sample and 15-20 business dyas for general order

Our Services:
    1.Professional and 17 years history
    2.17-year overseas marketing &17-year OEM/ODM experience
    3.100% quality test before shipment
    4.Market leading prices
    5.Best after-sales service
    6.Abundant exporting experience

Notice: For more detail information,please feel free to contact us!














Prod Model: TPSF-E-1
Waterproof Degree: IP67
Battery Life: 400days
Weight: 8g
Storage Temperature: -35~85°c
Working Temperature: -30~80°c
Temperature Accuracy: ±2°c
Working Voltage: 2.1~3.6 V
Working Pressure: 0~99 Psi
Pressure Accuracy: ±1.5psi
Transmit Frequency: 433.92 MHz
Certification: E-MARK, FCC
Update Method: by Hard Disk
Testing Equipment Type: Solar Power TPMS
Established in 2001, Shenzhen Sunway Industry Co., Ltd. Is a professional manufacturer in car electronics industry, such as TPMS, DVR. Parking Sensor, Car Camera, Headrest, Monitor, DTV Receiver Box.

With Industrial Zone in Hunan Province, headquarter in Shenzhen, and up to 300 employees, Sunway's monthly output is 800, 000 pieces with current export of 80% of all products. We export to over 80 countries and regions, especially USA, EU, Russia, Australia, Mexico, Brazil, etc.

We have a skilled R&D team and be able to process OEM/ODM orders. We provide products with high quality, shortest delivery time, competitive price and more professional service. We test every piece of raw material from our suppliers and every finished product will be tested at least 3 times before shipment, all those make us become a professional supermarket supplier, such as USA Wal-mart.

As an ISO9001 certified company and TS 16949 factory, with CE, E-MARK, RoHS approval, we always try our best to satisfy our clients and strengthen our position in the global market.
