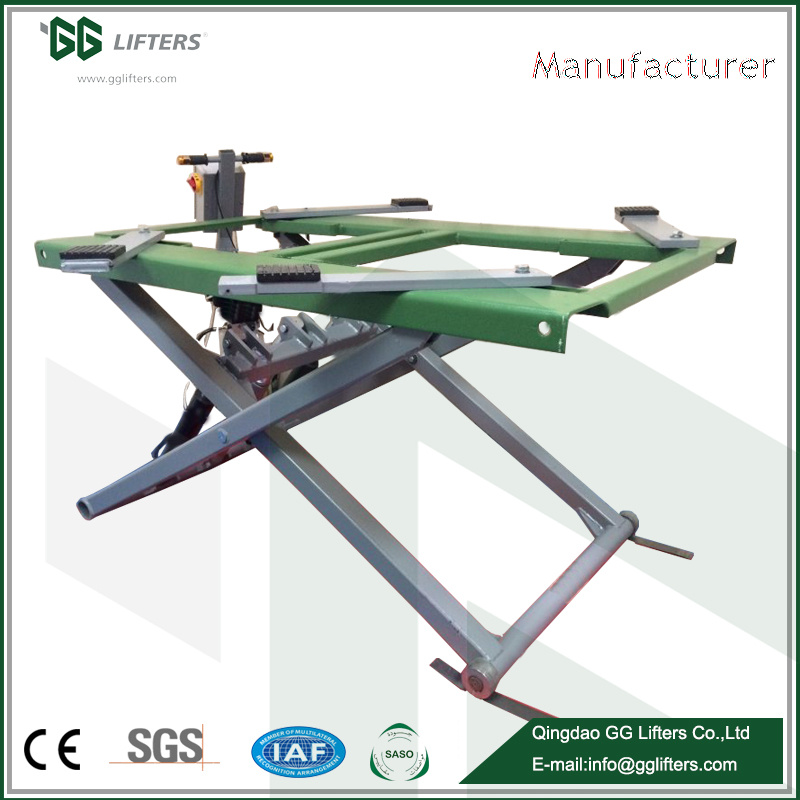

Smart Movable Hydraulic Car Scissor Lift Ls30/1200/M

Name: Smart Movable Hydraulic Car Scissor Lift Ls30/1200/M
Brand: ibuyautoparts.com
SKU: 728661132
Availability: InStock
Rating: 4.3 (125 reviews)

Price:	US $ 1500sets
Min Order:	1sets
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LS27/1000/M&LS30/1200/M
Max Lifting Height:	1200mm
Rise/Drop Time:	90s/60s
Warranty:	2 Years for Electric Parts, 5years for Steel Frame
Safety Lock:	Manual Unlock
Power Supply/Motor Capacity:	220V/380V/2.2kw or Customerized
Platform(L*W):	1680*1080mm
Type:	One Cylinder Hydraulic Lift
Lifting Capacity:	3T
Certification:	ISO
Driving Type:	Hydraulic Drive + Steel Rope
Brand:	GG Lifters

Product Description

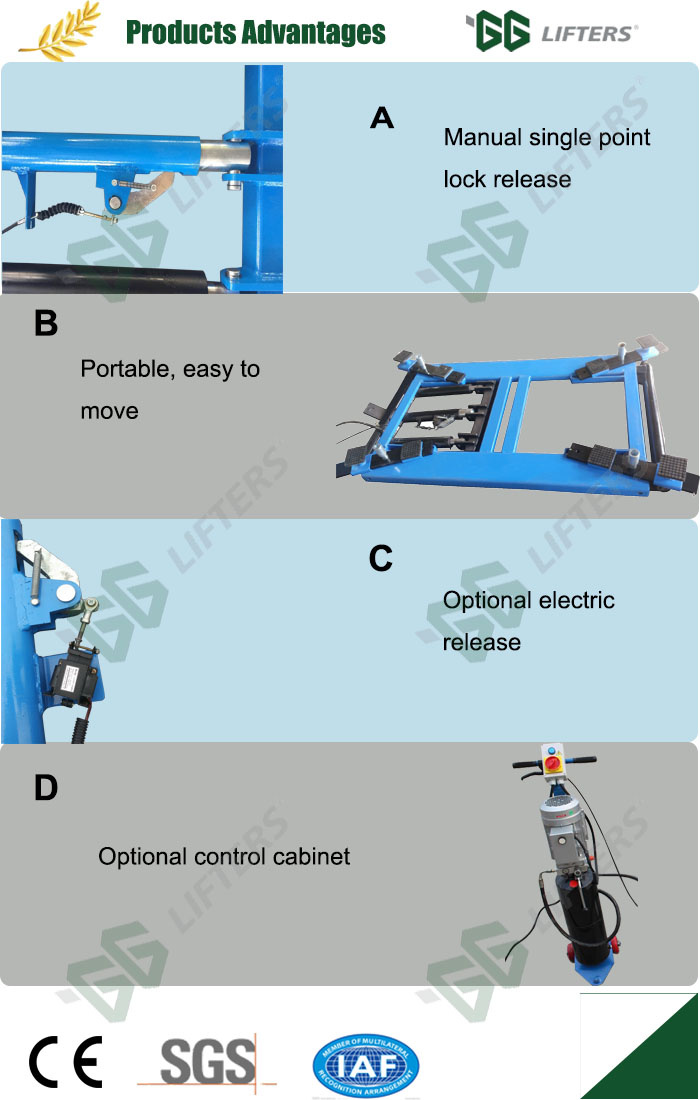

Removable SCISSOR CAR LIFT

Moveable for use, no need to install

Manual lock release

Rigid connection of the two platforms to ensure synchronization

Polished and powder coated surface

PARAMETERS

Model NO.	LS27/1000/M	LS30/1200/M
Lifting Capacity	2700kgs	3000kgs
Max Lifting Height with rubber pad	1100mm	1200mm
Platform(L*W)	1680*1080mm	1680*1080mm
Moving device:	YES	YES
SAFETY LOCK	MANUAL UNLOCK	MANUAL UNLOCK
ANOTHER SAFETY LOCK	ELETRIC UNLOCK WILL ALSO BE AVAILABLE.
DOCUMENTS	INSTALLATION MANUAL BOOK, USER BOOK, TROUBLE SHOOTING SHEET
TEST BEFORE SHIPPMENT, AND SHOW THE VIDEO TO CUSTOMER WITH SHIPPING LIST
Warranty:	2 years for electric parts, 5years for steel frame structure
Rise/Drop Time:	50s/40s
Power Supply/Motor Capacity	220v/380v/2.2kw OR according to customer request

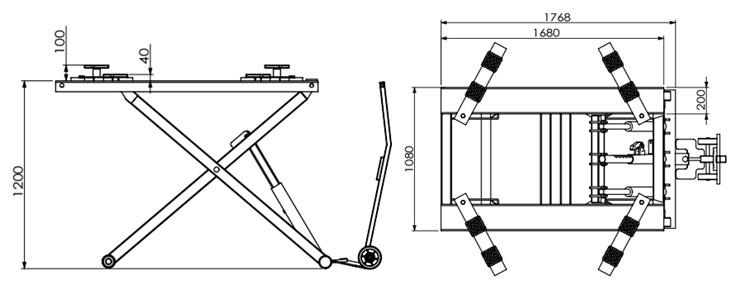

DRAWING

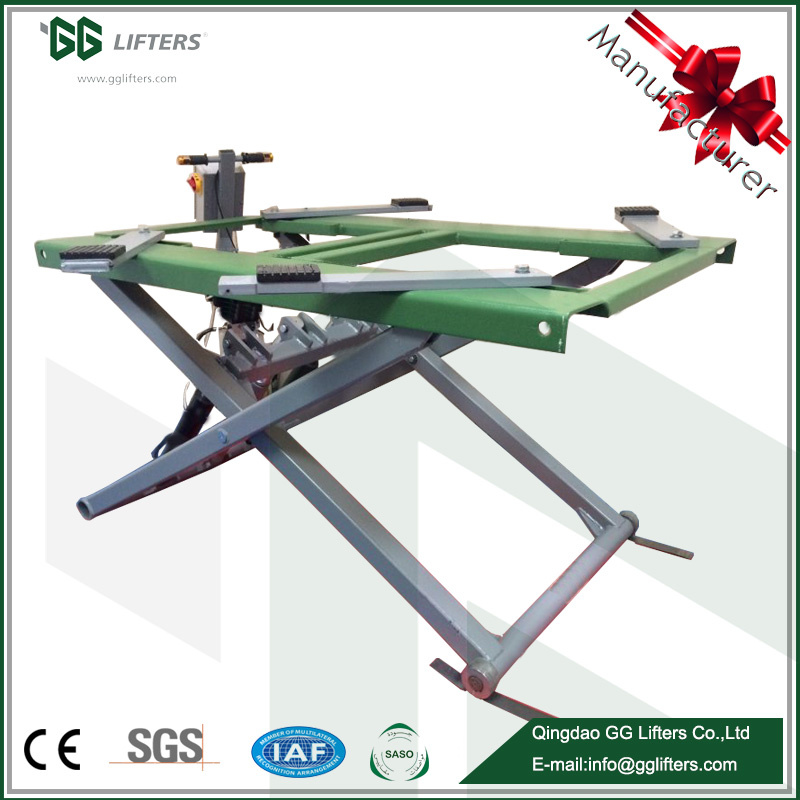

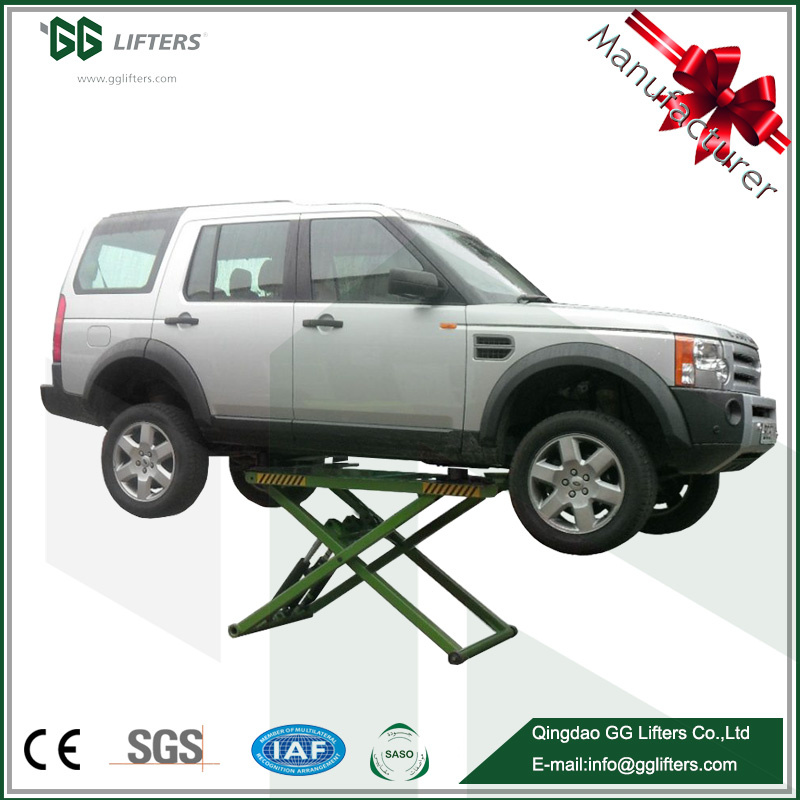

PHOTOS

Qingdao GG Lifters Co., Ltd, an established Factory in Qingdao, China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking and car service lifts offered to our customers worldwide.

Our competent team in multi languages (English, Chinese, Italian, Arabic, Japanese, etc) is well prepared to anticipate, identify and exceed our customers' expectations. GG Lifters enjoys excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

GG Lifters through its Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.
