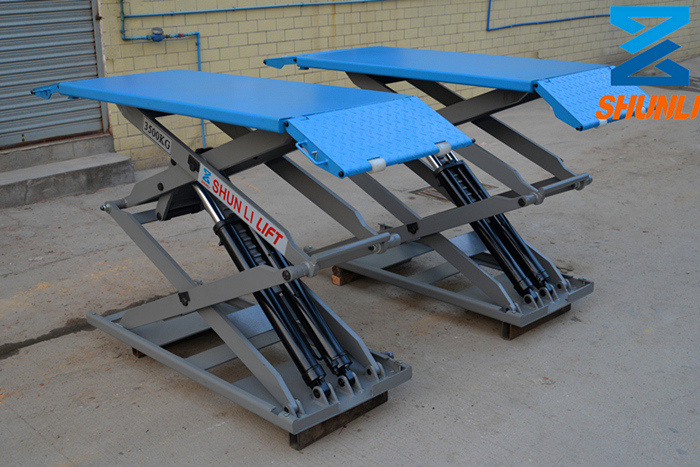

Small Scissor Lift with 3000kg Capacity (SHL-Y-J-30CBL)
| Price: |
US $ 1820/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
SHL-Y-J-30CBL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
3kw |
| Lifting Height: |
1880mm |
| Main Lifting Capacity: |
3000kg |
| Initial Height: |
105mm |
| Clour: |
Blue, Grey, Yellow, Red Optional |
| Platform Width: |
650mm |
| Type: |
Four Cylinder Hydraulic Lift |
| Certification: |
ISO |
| Design: |
Scissor |
| Lifting Capacity: |
3000kg |
| Brand: |
Shunli |
Product Description
Product advantage1. Only 105mm, More thin, more safely.
2. Use Alloy solid steel, not square steel.
3. Three ways insurance device. Double hydraulic system, Hydraulic lock and mechanical lock to keep safely.
4. Japanese oil sealing elements, Italian spherical valve of the spare part.
5. Easy installation, easy Operation.Product Specification1. Double level scissor lift, 105mm above the ground at the lowest level.
2. Adjustable of ramp. It' more convenience and save room.
3. Alloy Solid steel plate made of high precision numerical control design, overcome steel pipe rigidity. Not easy to rust, more reasonable and secure;
4. Double hydraulic balance system(main lift) and mechanical safely with automatic unlick are equipped
5. 24V safety control circuit
6. Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity
7. It can use for more long wheelbase vehicle.
8. Wear-resisting bearings spare part.Technical parameter | Model | SHL-Y-J-30CBL | SHL-Y-J-30CB |
| Lifting Capacity | 3000kg | 3000kg |
| Lifting Height | 1880mm | 1880mm |
| The Platform Length | 1480-2080mm | 1480mm |
| The Platform Width | 650mm | 650mm |
| Initial Height | 105mm | 105mm |
| Motor | 3kw | 3kw |
| Power | 220V, 380V | 220V, 380V |
| Air Pressure | 0.4-0.6mpa | 0.4-0.6mpa |
About us
Our Service
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
