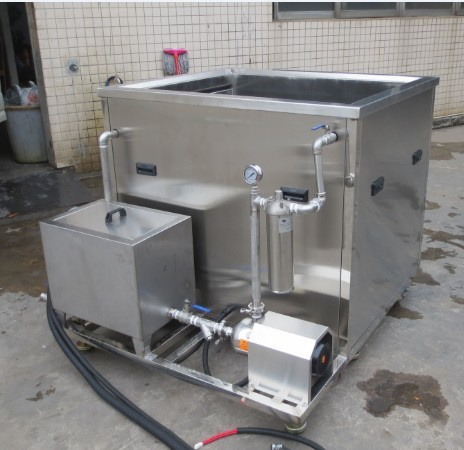

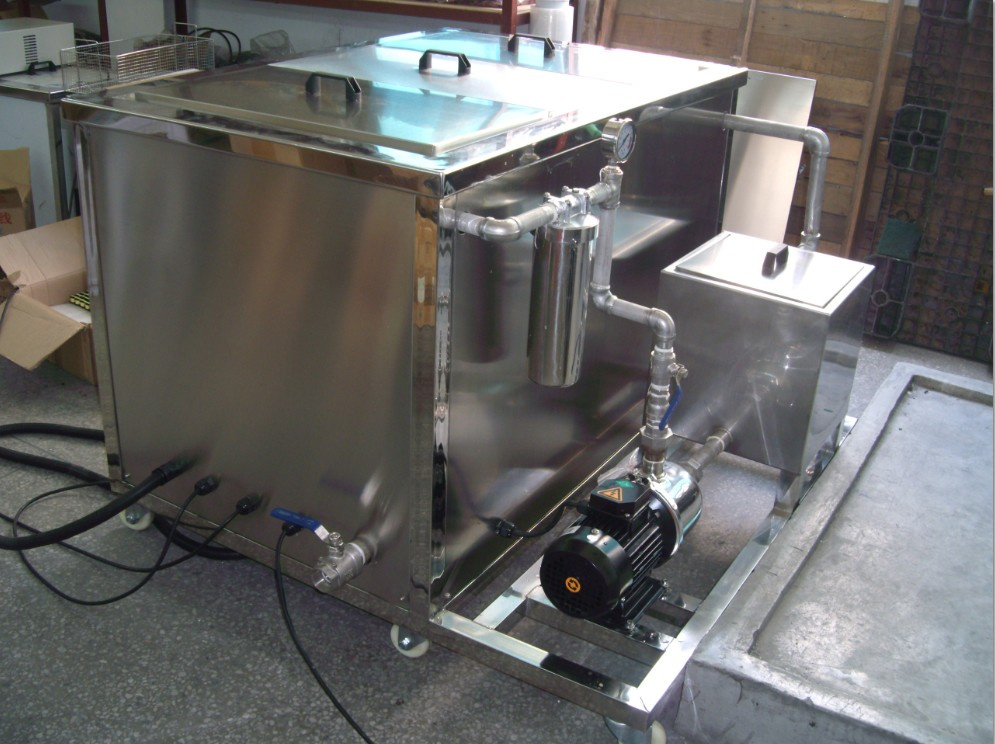

Skymen ultrasonic cleaner with filter system to clean radiator of cars
How ultrasonic cleaner works?
The main washing principal of ultrasonic cleaner is to transfer sound energy into mechanical vibration. Its ultrasound radiates the cleaning solution through cleaning the cell wall. The ultrasound which is radiated makes the micro-bubble in the liquid keep vibrating under the effect of sound wave. When sound pressure or sound intensity reaches a certain degree, bubble would quickly expand and suddenly close. During this process, the instant of closing bubble would create shock wave, and produce pressure of 1012-1013PA and high temperature around bubbles. The great pressure created by ultrasonic cavitation would depart non-soluble contaminants and differentiate them into liquid. Steam type cavitation has impact on dirt directly and repeatedly.

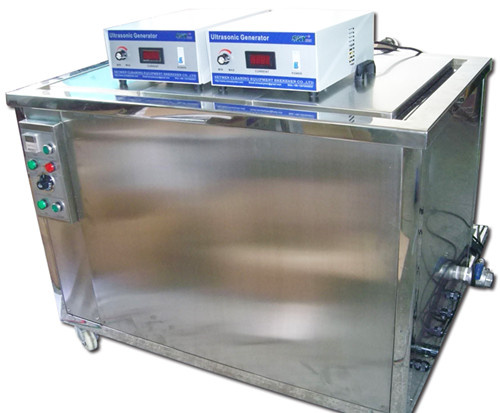

Machine detail :

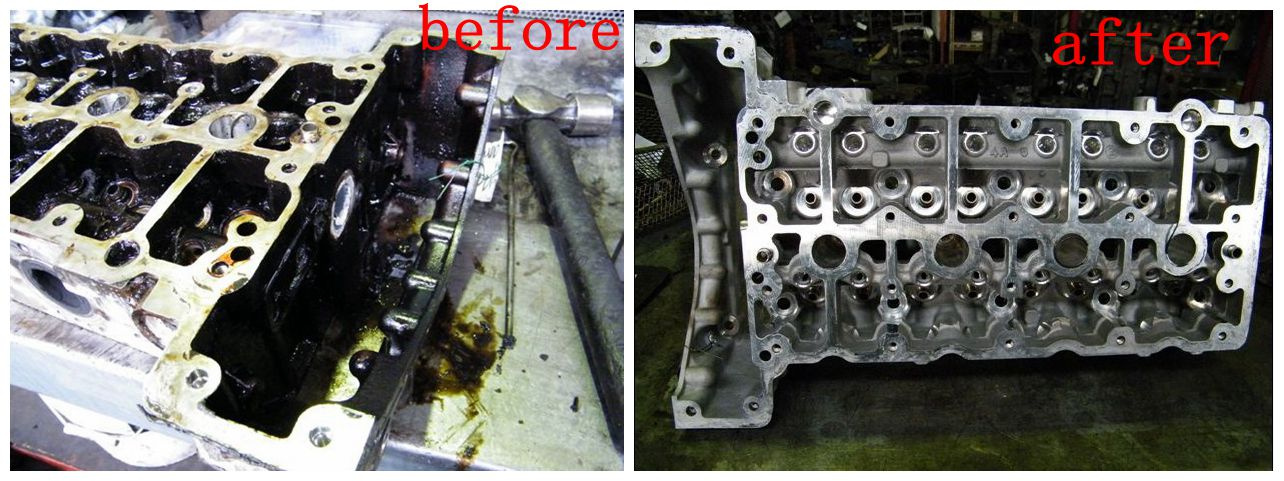

Car part cleaning effect :
Remark:
1. Tank size and other functions can be custom made
2. Customer logo is acceptable
3. Packing by wooden case
4. Lead time is negotiable according to qty. And custom made requirements
Wish to serve for you.
Please inform the size of your car radiator,
Or choose the tank size fits your car radiator:
| Model: Skymen™ | JTS-1012 | JTS-1018 | JTS-1024 | JTS-1030 | JTS-1036 | JTS-1072 |
|
| TANK'S WORKING DIMENSION (mm) | L1 | 355 | 406 | 500 | 500 | 500 | 1000 |
|
| W1 | 305 | 305 | 355 | 406 | 460 | 600 |
| H1 | 355 | 460 | 500 | 500 | 550 | 600 |
| OVERALL DIMENSION (mm) | L2 | 535 | 586 | 680 | 710 | 710 | 1210 |
| W2 | 485 | 485 | 535 | 586 | 640 | 780 |
| H2 | 750 | 680 | 720 | 720 | 770 | 720 |
| TANK'S TOTAL CAPACITY | 38L | 56L | 88L | 101L | 126L | 360L |
| TANK'S MATERIAL | SUS304/SUS316L |
| IN-TANK SURFACE FINISHING | Hard-Cr Plating Treatment ( 20+ microns ) |
| HOUSING'S MATERIAL | SUS 304/SUS316L |
| ULTRASONIC FREQUENCY* | 28kHz / 40kHz |
| ULTRASONIC TRANSDUCER | 12 | 18 | 24 | 30 | 36 | 72 |
| ULTRASONIC OUTPUT POWER (MAX.) | 600W | 900W | 1200W | 1500W | 1800W | 3600W |
| ELECTRONIC GENERATOR | KG600 | KG900 | KG1200 | KG1500 | KG1800 | KG3600 |
| Build-in | Separate |
| HEATER'S (HOT PLATE) POWER | 1.5kW | 3kW | 4.5kW | 9KW |
| CLEANING TANK'S POWER REQUIREMENT | AC 220V / 240V, 1, 15AMP | AC 220V / 240V, 1, 25AMP |
| GENERATOR'S POWER REQUIREMENT | ---- | AC 220V / 240V, 1, 13AMP |
NEW PRODUCT
68kHz / 80kHz / 120kHz are also available |
Skymen Cleaning Equipment Shenzhen Co., Ltd. is a manufacturer all types ultrasonic cleaner from China. Our product include bench-top ultrasonic cleaners, mini household smart ultrasonic jewelry cleaner, industrial large tank ultrasonic cleaning machine, and submersible ultrasonic transducer pack system. Capacity from 0.6L to 5000L or even more bigger. With powerful transducer and qualified design circuit control to reach very good cleaning result. Mainly used in car part cleaning, tools cleanig, fruit&vegetable cleaning, hardware cleaning, commercial kitchen cleaning, etc...We also do OEM&ODM business for ultrasonic cleaner dealers and agents. And we sincerely welcome overseas ultrasonic cleaner distributers and wholesalors to establish business relationship.
Quality control:
1. Raw Material Inspection:
QC and engineers would make strict inspection of the raw material step by step to ensure quality product.
2. Sales Checking:
We salesman would also check the production process to ensure machine 100% according to the sample.
3.100% product inspection:
100% products checking during production, Each unit would be under testing at least 4hours before packed.
4. We always try to do perfect:
Everyone in Skymen would try best to solve problems together with you.
