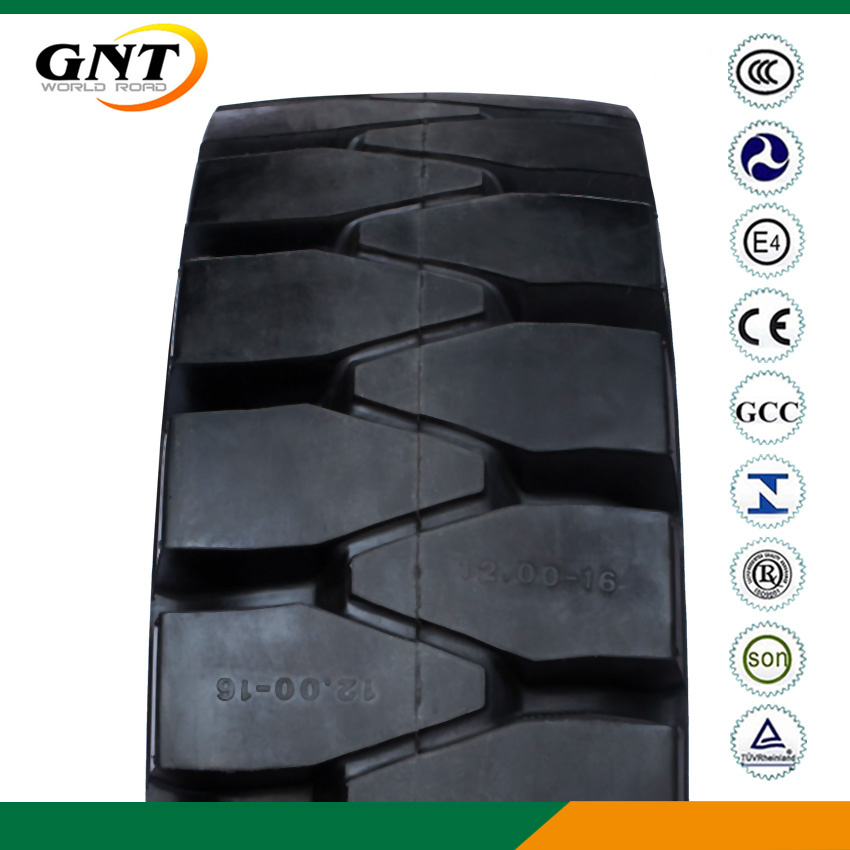

Skid Steer Tire Forklift Solid Tire (12-16.5 10-16.5 14-17.5)
Price: |
US $ 20-50/Piece |
Min Order: |
700/Piece |
Pay Type: |
L/C,T/T |
Skid Steer Tire Forklift Solid Tire (12-16.5 10-16.5 14-17.5)
Weifang gunaite rubber co.,ltd is specialized in tyres and valves , such as radial truck tyre , car tyre , light truck tyre , otr tyre, forklift tyre , valves etc. We export to many countries, America, Russia, Mid-east, Africa, Europe etc. If you are interested in our products , welcome to contact with me .
Features of solid tyre
1. Special abrasion resistance formula.
2. Widen tread helps even wearing.
3. Reinforce carcass to reduce deformation.
4. Block pattern, with high elasticity, low heating and wear resistance performance
Application
Special for balanced forklift and other industrial vehicles.Specification of forklift tyre : Solid Tyre, Forklift Tyre, 28X9-15 Forklift Solid Tyre |
Size | Rim | Standard | Click | Overall Diameter | Section Width | Load capacity(kg) | Other forklift |
Balance forklift |
10km/h | 16km/h | 25km/h | 16km/h |
mm | mm | Dirve | Steer | Drive | Steer | Drive | Steer |
4.00-8 | 3 | | | 423 | 115 | 1055 | 845 | 1020 | 765 | 950 | 715 | 730 |
4.00-8 | 3.75 | | | 423 | 115 | 1050 | 845 | 1020 | 765 | 950 | 715 | 730 |
15×41/2-8 | 3.25 | | | 380 | 106 | 905 | 725 | 675 | 655 | 805 | 605 | 625 |
|
15×41/2-8 | 3 | | | 380 | 106 | 905 | 725 | 675 | 655 | 805 | 605 | 625 |
|
5.00-8 | 3 | | | 469 | 126 | 1210 | 970 | 1175 | 880 | 1095 | 820 | 840 |
|
|
16×6-8 | 4.33 | | | 418 | 156 | 1500 | 1200 | 1445 | 1085 | 1345 | 1010 | 1035 |
18×7-8 | 4.33 | | | 457 | 154 | 2350 | 1880 | 2265 | 1700 | 2110 | 1585 | 1620 |
|
21×8-9 | 6 | | | 535 | 189 | 2810 | 2250 | 2715 | 2035 | 2530 | 1895 | 1940 |
23×9-10 | 6.5 | | | 597 | 230 | 4005 | 3205 | 3845 | 2885 | 3605 | 2705 | 2765 |
|
23×10-12 | 8.00 | | | 595 | 237 | 3980 | 3420 | 3820 | 3210 | 3586 | 3010 | 2980 |
27×10-12 | 8 | | | 683 | 235 | 4465 | 3570 | 4315 | 3235 | 4020 | 3015 | 3080 |
6.00-9 | 4 | | | 545 | 140 | 1920 | 1535 | 1855 | 1390 | 1730 | 1295 | 1325 |
|
|
6.50-10 | 5 | | | 597 | 157 | 2840 | 2110 | 2545 | 1910 | 2370 | 1780 | 1820 |
|
|
200/50-10 | 6.5 | | | 458 | 198 | 2370 | 1900 | 2290 | 1720 | 2135 | 1605 | 1630 |
7.00-9 | 5 | | | 578 | 170 | 2370 | 2015 | 2805 | 1925 | 2370 | 1750 | 1785 |
7.00-12 | 5 | | | 683 | 168 | 3015 | 2410 | 2910 | 2185 | 2710 | 2035 | 2075 |
|
|
7.00-15 | 5.5 | | | 759 | 178 | 3590 | 2870 | 3465 | 2600 | 3225 | 2420 | 2475 |
7.00-15 | 6 | | | 759 | 178 | 3590 | 2870 | 3465 | 2600 | 3225 | 2420 | 2475 |
7.50-15 | 5.5 | | | 774 | 215 | 3690 | 2950 | 3425 | 2570 | 3190 | 2395 | 2450 |
7.50-15 | 6 | | | 774 | 215 | 3690 | 2950 | 3425 | 2570 | 3190 | 2395 | 2450 |
7.50-15 | 6.5 | | | 774 | 215 | 3690 | 2950 | 3425 | 2570 | 3190 | 2395 | 2450 |
7.50-16 | 5.5 | | | 819 | 181 | 3910 | 3130 | 3780 | 2835 | 3520 | 2640 | 2700 |
7.50-16 | 6 | | | 819 | 181 | 3910 | 3130 | 3780 | 2835 | 3520 | 2640 | 2700 |
8.25-15 | 6.5 | | | 847 | 205 | 4940 | 3950 | 4765 | 3575 | 4440 | 3330 | 3045 |
|
|
8.25-12 | 6.5 | | | 735 | 206 | 3326 | 2660 | 3215 | 2410 | 2995 | 2245 | 2295 |
8.15-15 | 7 | | | 706 | 207 | 4090 | 3270 | 3945 | 2960 | 3675 | 2755 | 2820 |
|
|
8.25-20 | 6.5 | | | 902 | 218 | 5425 | 4340 | 5420 | 3930 | 4880 | 3735 | 3475 |
7.50-20 | 6.5 | | | 935 | 218 | 5165 | 4130 | 4985 | 3740 | 4640 | 3480 | 3560 |
250-15 | 7 | | | 735 | 220 | 4366 | 3400 | 4220 | 3160 | 3930 | 2955 | 3010 |
|
250-15 | 7.5 | | | 735 | 226 | 4366 | 3400 | 4220 | 3160 | 3930 | 2955 | 3010 |
|
9.00-16 | 6.5 | | | 884 | 218 | 5135 | 4110 | 4965 | 3725 | 4625 | 3470 | 3550 |
300-15 | 8 | | | 838 | 258 | 5990 | 4700 | 5780 | 4335 | 5380 | 4037 | 4130 |
|
28×12.5-15 | 9.75 | | | 706 | 300 | 5735 | 4590 | 5540 | 4165 | 5170 | 3890 | 3955 |
32×12.1-15 | 9.75 | | | 823 | 301 | 7120 | 6700 | 5860 | 6170 | 6410 | 4520 | 4910 |
9.00-20 | 6.5 | | | 1038 | 238 | 6450 | 5160 | 6235 | 4675 | 5805 | 4355 | 4450 |
9.00-20 | 7 | | | 1038 | 238 | 6450 | 5160 | 6235 | 4675 | 5805 | 4355 | 4450 |
10.00-20 | 7.5 | | | 1073 | 240 | 7240 | 5795 | 6995 | 5240 | 6610 | 4885 | 4995 |
10.00-20 | 8 | | | 1073 | 240 | 7240 | 5795 | 6995 | 5240 | 6610 | 4885 | 4995 |
11.00-20 | 8 | | | 1075 | 252 | 7560 | 6050 | 7300 | 5490 | 6810 | 5120 | 5210 |
12.00-20 | 8 | | | 1146 | 290 | 8800 | 7000 | 8500 | 6925 | 8000 | 6450 | 6595 |
|
12.00-20 | 8.5 | | | 1146 | 290 | 8800 | 7000 | 8500 | 6925 | 8000 | 6450 | 6595 |
Our Service for solid tyre :
1. All the salesmen are well trained and experienced.
2.Any inquiry will be highly attention and positive feedback within 24 hours.
3.Your requirements and complaints are highly respected.
4.Necessary test and certification can be obtained as you request.
5.Customized can be available .

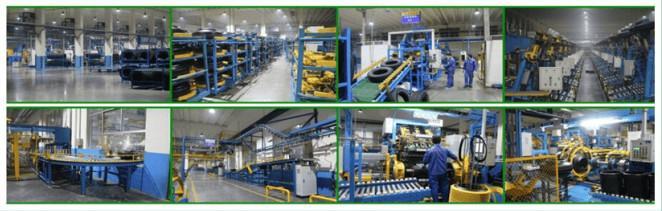

Please check the production line of tyre :
For more information , welcome to contact with me . Miss hailey guan . Tel: +86-15963602734
Prod Model: |
14-17.5 |
Tyre Size: |
14-17.5 |
Material: |
Bias |
Quantity: |
800PCS |
Use: |
Industrial Machinery Forklift |
After Sale Service: |
6 Months |
Type: |
Inner Tube |
Diameter: |
15-16" |
Tire Design: |
Bias Belted Tyre |
Certification: |
CE |
Tread Pattern: |
Circumferential Pattern |
Weifang gunaite Rubber Co., Ltd. Was founded in 1980, is located in the Chinese rubber tire manufacturing industry of Shandong Province, Weifang City, the existing staff of five hundred people, was on the verge of open city of Qingdao, Yantai, Dalian, Rizhao Port, geographical location and environment, convenient traffic, is a collection of R & D and rubber products manufacturing, sales of high-quality strong, durable, and suitable for special purposes, tires and other products and services in one of the professional tire company.
The company mainly produces various truck tires, light truck tires, specifications and varieties of agricultural tires, OTR tires, industrial tires, special tires, product sales all over the country and exported to many countries and regional Corporation in Europe and the United States has advanced production equipment and the ability to meet international requirements, fully equipped Development Laboratory, strict implementation of ISO 9001 quality system and strict implementation of RoHS directive, the overall operation of the enterprise resource planning computer management system, and the application of Six Sigma management mode to protect the product defect rate of less than three point four parts per million, all products are insured by the People's Insurance Company of China, so as to guarantee customers a comprehensive, the rights and interests of consumers.
We have a high-quality product manager and customer manager team, customers can become a close advisor. We based on the fundamental, committed to the development of the industry. We implement provide guarantee product concept, let us win the customers at home and abroad.
We expect and welcome friends from all walks of life together with cooperation, create a better future!
