Summary

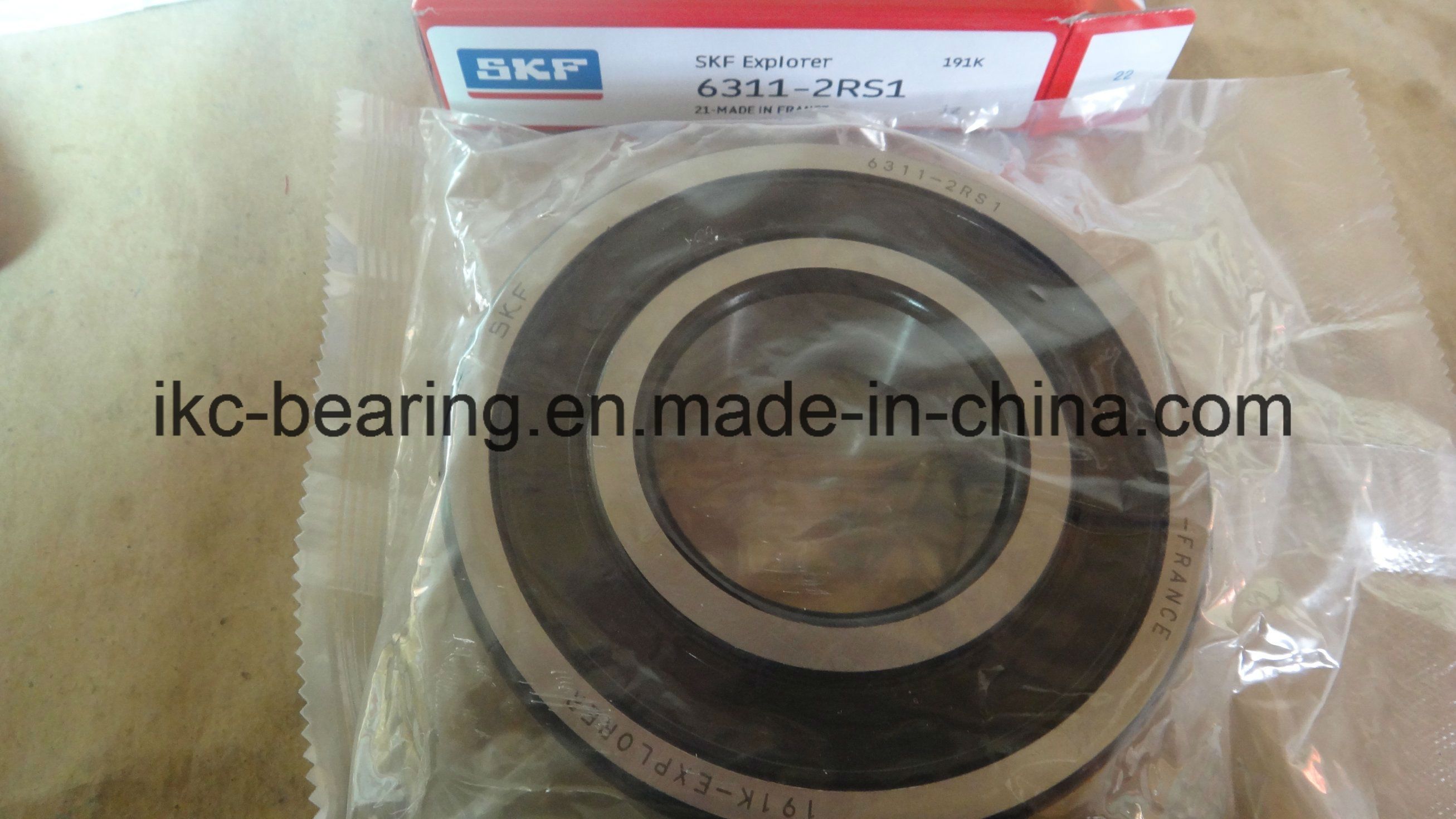

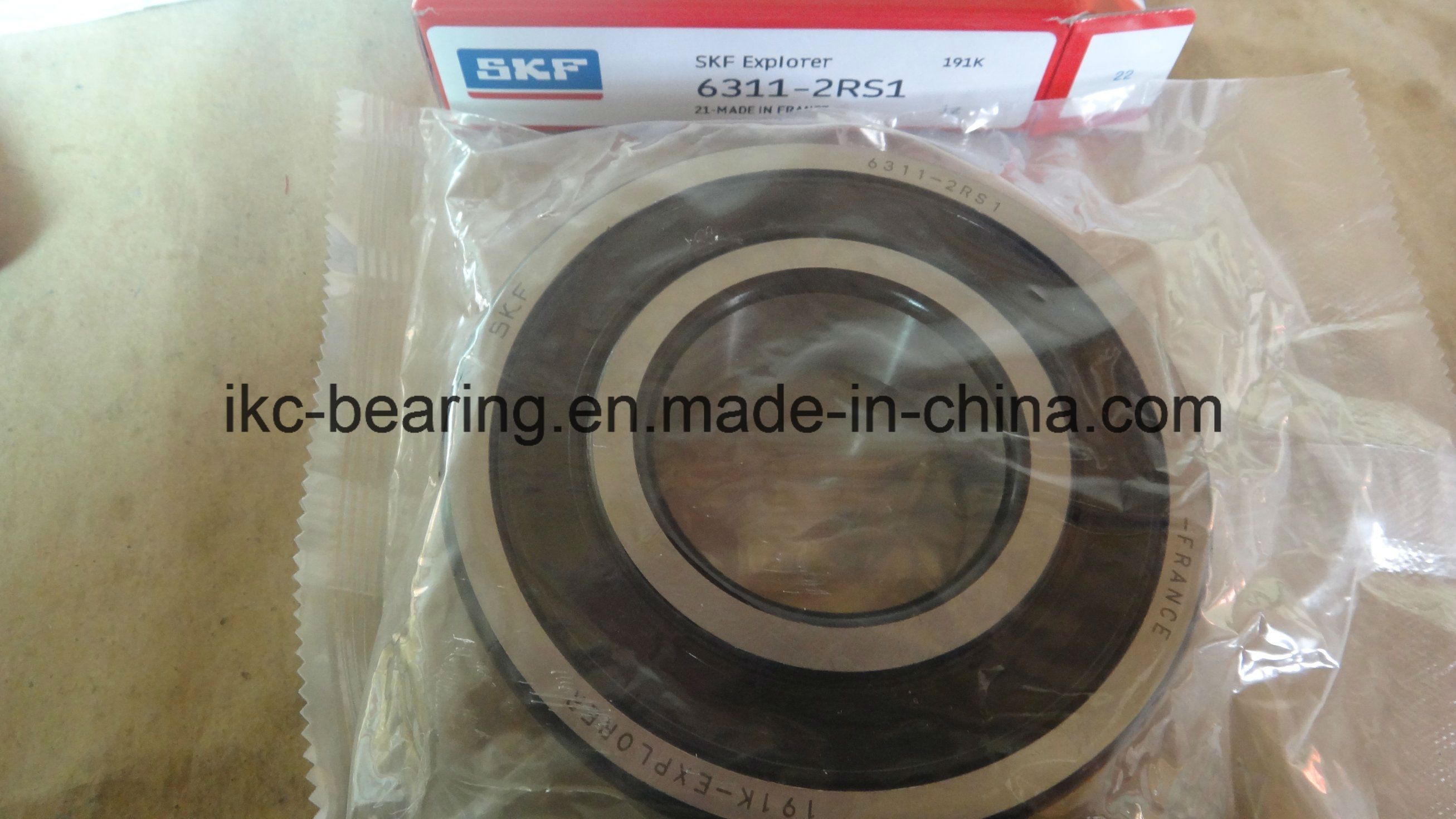

Model: 6311-2Z/2RS/Z/RS/N/NR/ZNR/open type etc...
Material: Chrome Steel ( GCr15=DIN 100Cr6).
Precision: ABEC-1(P0), ABEC-3 (P6), ABEC-5(P5).
Vibration & Noise availability: Z, Z1, Z2, Z3, Z4; V, V1, V2, V3 etc. For big size, usually in normal grade of Z level.
Description
1. Bearing Material
High carbon chrome bearing steel(Gcr15) is the standard material for bearing ring & rolling elements, also carbon steel & stainless steel will be used upon request. The cages are pressed steel ribbon cages & pressed steel snap cages. For extra-high speed application, synthetic-resin, stainless steel, nylons(Phenolic resins) will be used upon request.
2. Lubrication
Different types of greases can be supplied for shielded & sealed bearings and oil for open bearings
3. Tolerance
YUTONG Bearings can meet tolerance grades from ABEC-1 to ABEC-3 as requested dimension tolerance & runout accurancy.
NOTE
C2 Group clearance only for bearings over ABEC-3 accurancy.
4. Vibration and Noise
The vibration and noise of bearing in four classes Z1, Z2, Z3 and Z4, It is measured by the instrument of S09-1, For special requirement, it is measured by BVT-1 and classified as V1, V2, and V3, The date are shown tables, different vibration & noise requirement should be menrioned in order.
6800-2RS
6900-2RS
6000-2RS
6200-2RS
6300-2RS
6406-2RS
6801-2RS
6901-2RS
6001-2RS
6201-2RS
6301-2RS
6407-2RS
6802-2RS
6902-2RS
6002-2RS
6202-2RS
6302-2RS
6408-2RS
6803-2RS
6903-2RS
6003-2RS
6203-2RS
6303-2RS
6409-2RS
6804-2RS
6904-2RS
6004-2RS
6204-2RS
6304-2RS
6410-2RS
6805-2RS
6905-2RS
6005-2RS
6205-2RS
6305-2RS
6411-2RS
6806-2RS
6906-2RS
6006-2RS
6206-2RS
6306-2RS
6412-2RS
6807-2RS
6907-2RS
6007-2RS
6207-2RS
6307-2RS
6413-2RS
6808-2RS
6908-2RS
6008-2RS
6208-2RS
6308-2RS
6414-2RS
6809-2RS
6909-2RS
6009-2RS
6209-2RS
6309-2RS
6415-2RS
6810-2RS
6910-2RS
6010-2RS
6210-2RS
6310-2RS
6416-2RS
6811-2RS
6911-2RS
6011-2RS
6211-2RS
6311-2RS
6417-2RS
6812-2RS
6912-2RS
6012-2RS
6212-2RS
6312-2RS
6418-2RS
6813-2RS
6913-2RS
6013-2RS
6213-2RS
6313-2RS
6419-2RS
6814-2RS
6914-2RS
6014-2RS
6214-2RS
6314-2RS
6420-2RS
6815-2RS
6915-2RS
6015-2RS
6215-2RS
6315-2RS
6421-2RS
6816-2RS
6916-2RS
6016-2RS
6216-2RS
6316-2RS
6422-2RS
6817-2RS
6917-2RS
6017-2RS
6217-2RS
6317-2RS
6424-2RS
6818-2RS
6918-2RS
6018-2RS
6218-2RS
6318-2RS
6426-2RS
6819-2RS
6919-2RS
6019-2RS
6219-2RS
6319-2RS
6428-2RS
6820-2RS
6920-2RS
6020-2RS
6220
6320-2RS
6072
6821-2RS
6921-2RS
6021-2RS
6830-2RS
6930-2RS
6030-2RS
6822-2RS
6922-2RS
6022-2RS
6832-2RS
6932-2RS
6032-2RS
6824-2RS
6924-2RS
6024-2RS
6834-2RS
6934-2RS
6034-2RS
6826-2RS
6926-2RS
6026-2RS
6828-2RS
6928-2RS
6028-2RS
Dimensions (mm) | Basic Load Ratings (kN) | Speed Ratings (r/min) | Mass (kg) | Designation |
d | D | B | dynamic C | static C0 | Reference | Limiting | | |
55 | 120 | 29 | 74.1 | 45 | - | 3800 | 1.35 | 6311-2RS1 |
55 | 120 | 29 | 74.1 | 45 | 12000 | 6300 | 1.35 | 6311-2Z |
55 | 120 | 29 | 74.1 | 45 | - | 3800 | 1.35 | 6311-RS1 |
55 | 120 | 29 | 74.1 | 45 | 12000 | 8000 | 1.35 | 6311-Z |
55 | 120 | 43 | 71.5 | 45 | - | 3800 | 1.95 | 62311-2RS1 |
55 | 140 | 33 | 99.5 | 62 | 11000 | 7000 | 2.3 | 6411 |
60 | 78 | 10 | 11.9 | 11.4 | 17000 | 11000 | 0.11 | 61812 |
60 | 78 | 10 | 11.9 | 11.4 | - | 4800 | 0.11 | 61812-2RS1 |
60 | 78 | 10 | 11.9 | 11.4 | 17000 | 8500 | 0.11 | 61812-2RZ |
60 | 85 | 13 | 16.5 | 14.3 | 16000 | 10000 | 0.2 | 61912 |
60 | 85 | 13 | 16.5 | 14.3 | - | 4500 | 0.2 | 61912-2RS1 |
60 | 85 | 13 | 16.5 | 14.3 | 16000 | 8000 | 0.2 | 61912-2RZ |
60 | 95 | 11 | 20.8 | 15 | 15000 | 9500 | 0.28 | 16012 |
60 | 95 | 18 | 30.7 | 23.2 | 15000 | 9500 | 0.42 | 6012 |
60 | 95 | 18 | 30.7 | 23.2 | - | 4300 | 0.42 | 6012-2RS1 |
