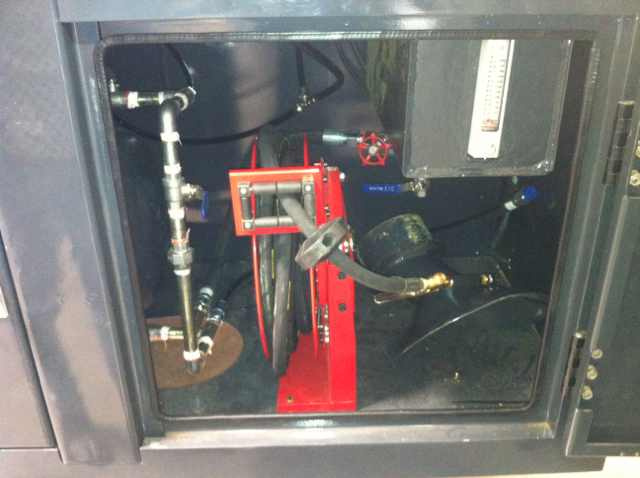

Single Support Spring Driven Hose Reel

Name: Single Support Spring Driven Hose Reel
Brand: ibuyautoparts.com
SKU: 829266265
Availability: InStock
Rating: 4.6 (47 reviews)

Price:	US $ 95/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

The features of Yamasaki 300 series hose / Cable reel:

1. Germany Kern-Liebers Spirng
2. NSK Bearing
3. Compact and Portable
4. Economic
5. 3.0mm thickness cold steel spring case

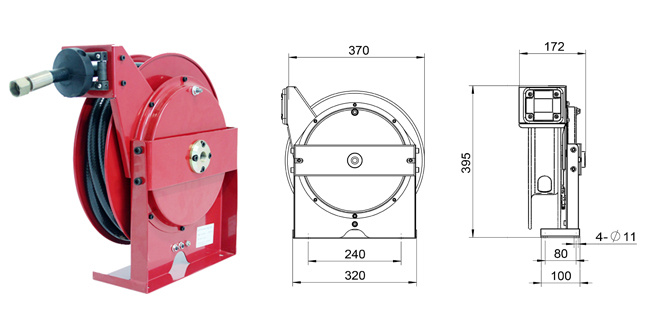

The Drawing of 300 series

The Specifications:

App.	Pressure rating	Hose inner dia.	Hose length	Reel inlet	Reel outlet	Pin No. With hose
Air / Water / anti-freeze	2(300)	6 (1/4)	10(33)	1/2"	1/4"	300020110
	2(300)	6 (1/4)	15(50)	1/2"	1/4"	300020115
	2(300)	8 (5/16)	8(25)	1/2"	1/4"	300020208
	2(300)	8 (5/16)	12(40)	1/2"	1/4"	300020212
	2(300)	10(3/8)	10(33)	1/2"	3/8"	300020310
	2(300)	12(1/2)	10(33)	1/2"	1/2"	300020410
Oil / Water	19(2780)	6 (1/4)	12(40)	M2×1.5	M14×1.5	300190112
	15(2280)	10(3/8)	10(33)	M2×1.5	M18×1.5	300150310
	14(2030)	12(1/2)	8(25)	M2×1.5	M22×1.5	300140408
Grease	35(5075)	6 (1/4)	10(33)	M2×1.5	M14×1.5	300350110
Grease	28(4060)	10(3/8)	10(33)	M2×1.5	M18×1.5	300280310

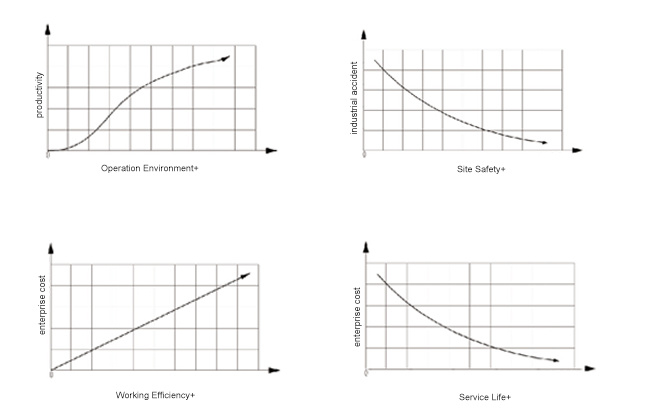

The advantagues of using reels

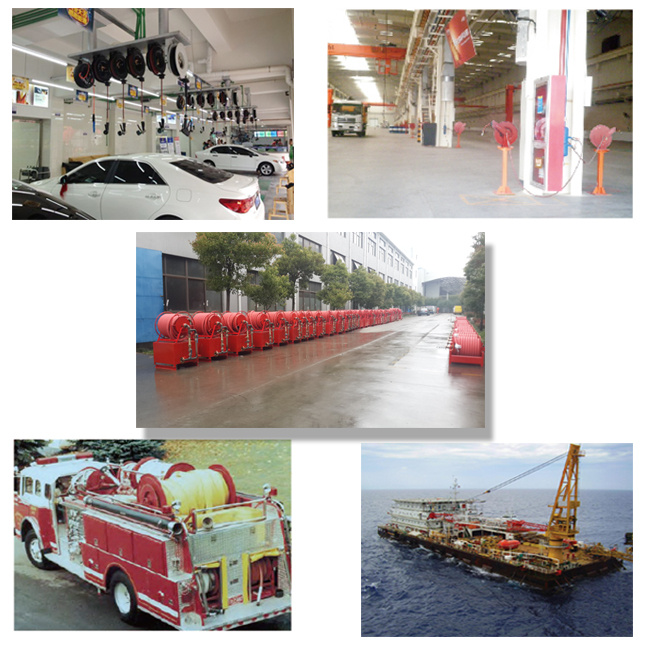

The application scenes

Prod Model:	Series 300
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/2"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red,Blue,Grey

Our company is a Japanese-owned enterprise, which was established in June, 2001, located besides the overhead, in Longjiang Road, Economic Development Zone, Zhong building, covering about 10, 000 square meters. It is a high-tech enterprise specializing in the development, design, manufacturing, sales and service of small mower and gear.

Our main equipment: A large number of high precision machines, such as multifunctional gear manufacturing machine, multi-axis CNC lathe, automatic feed lathe, high precision CNC lathe, multifunctional cylindrical grinding machine tool, precision thread rolling machine, precision grinding machine, precision grinding lathe, automatic knurling machine, spline broaching machine, precision chamfering machine, three times detector, gear bear detector, gear meshing detector, and CASE detector, etc.

Gear has played the common role in current society structure and machines, especially one important role in human relations and social order. If the gears are out of control, then the society will be full of chaos. Besides, gear has played the role in the machine like the heart in human body. Therefore, gear should be very solid and precise, otherwise it is valueless. The motto of our company is "harmony", we have been strived for manufacturing gears of high performance, to make the city and town cleaner and safer. We expect you can support and encourage us as usual.
