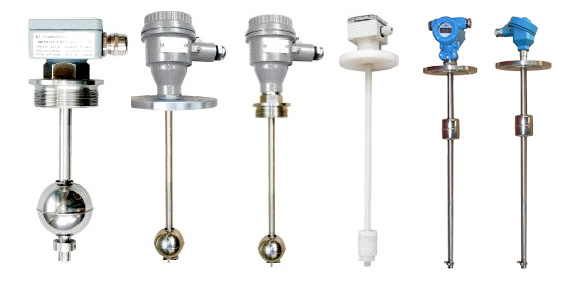

Side-Mounted Float Level Switch-Water Level Controller-Level Control Valve
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
water level control switches
UQK type magnetic float ball liquid level switch is composed of reed and magnetic float ball, working with lever as principle. When the float ball rises or falls with the liquid to the level of the switch, the magnetic forces of magnetic witch inside of the float ball will cause the reed switch to turn ON or OFF. This type level controller can match with DCS, PLC to realize remote control and alarm.Main technique parametercontrol-error: +20mm~ ± 40mm(UQK-03)
Contact rate: 5A/250V AC; 0.2A/24V DC
Medium density: ≥ 0.45g/cm3
Medium viscosity: ≤ 0.1Pa.s
Service life: Life: 5×100^2
Working principle:UQK floater level controller is consist of floater, micro active Switch, and Housing.A pair of repellent polarity magnetic Steel respectively installed at the end of floating ball and micro switch. When floating ball moves up and down in the action range, the magnetic steel is bobbing up and down accordingly. The Housing drive the magnetic steel on the micro switch components and makes the contacts output ON or OFF signal. The contact effect ON or OFF signal only if floater moves between high limit and low limit location.
Related products from us: Rotary Paddle Type(For Solids ),
Level Switch with Maxi Five Switches, Vibration Road Type For Solids, Vibration Fork Type For Liquid,
Cable Float Type Level Switch, Conductivity Type Level Switch
|
Series Code |
01: Side mounted, float stroke can't adjust (10mm)
02: Side Mounted, float stroke adjustable (25~550mm)
03: Top Mounted, float stroke adjustable (8~1000mm) |
|
|
Flange Material |
1: Aluminum; 2: Stainless steel; 3: Brass |
|
|
Flange face |
G: FF(flat face); Y: RF(raised-face flange) |
|
|
Explosion-proof: |
0: No; D: ExdIIC flame-proof; i: intrinsically safe |
|
|
Contact Rate (A) |
|
|
Fluid Density (g/cm3) |
|
|
Working pressure |
D: ambient pressure |
|
|
|
UQK- |
|
| Prod Model: |
UQK-01-02-03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Uqk-01: |
Horizontal Side Mounted, Non-Adjustable |
| Uqk-02: |
Horizontal Side Mounted, 25~550mm-Adjustable |
| Uqk-03: |
Vertical Top Mounted, 8~1000mm Adjustable |
| Kind: |
Level Switch |
| Structure: |
All in One |
| Range: |
0-3m |
| Principle: |
Magnetic Sensors |
