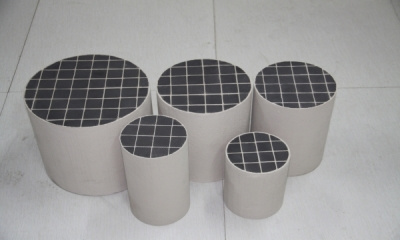

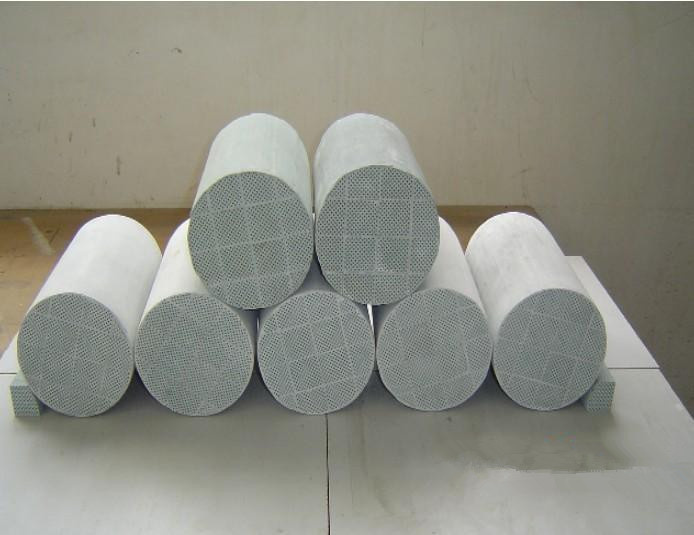

Diesel Particulate Filter
Diesel particulate filter is used to remove black smoke (PM e.g.: Hydrocarbons, soot) from diesel engine exhaust, being a great contribution to the
environment because of dealing with the exhaust from diesel engines. The diesel particulate filter can be used in different industrial fields such as
environment protection, petrol-chemistry, medicine manufacture, and metallurgy etc.
It has good investment return and broad prospect. The system installed DPF
(Diesel Particulate Filter) been examined for urban bus, forklift, truck & mining constructing equipment.
Characteristics:
*Broad band filtration (the diameters of the filtered particles are 0.2-150 µm)
*Low back pressure
*High filtration efficiency (can be up to 70%-95%)
*High refractory
*High mechanical properties
|
Component |
Unit |
Data |
Component |
Unit |
Data |
|
SiO2 |
wt% |
48-51 |
Fe2O3 |
wt% |
<0.5 |
|
Al2O3 |
wt% |
31-34 |
Na2O |
wt% |
<0.5 |
|
MgO |
wt% |
14-16 |
K2O |
wt% |
<0.5 |
|
Property (uncatalyzed) |
100/17 |
200/12 |
|
Cell density |
cpsi |
100 |
200 |
|
cpscm |
15.5 |
31.0 |
|
Wall thickness |
inch |
0.017 |
0.012 |
|
mm |
0.432 |
0.305 |
|
Open frontal area (OFA), % |
34.5 |
34.5 |
|
Geometric surface area (GSA) |
Inch2 |
33.3 |
47.0 |
|
m2/l |
1.31 |
1.85 |
|
Hydraulic diameter |
Inch |
0.083 |
0.059 |
|
mm |
2.11 |
1.49 |
|
Modulus of rupture (psi/cpscm) |
350 |
300 |
|
Porosity (%) |
48 |
48 |
Coefficient of thermal expansion
102 cm/cm/ (20-800) --maximum average |
5 |
5 |
|
Mean pore size (micron) |
13 |
13 |
|
Melting temperature (Degree C) |
1460 |
1460 |
|
NO. |
Item |
Our products |
|
1 |
Filter material |
Cordierite and Silicon carbide |
|
2 |
Operating temperature limit (Degree C) |
1000 |
|
3 |
Dimension (mm) |
Ø144x150,Ø144x152.4,Ø150x150,Ø190x200,Ø190x203, Ø240x240,Ø240x305 Ø260x305, Ø267x305, Ø286x305, Ø286x355,Ø374x270x317 |
|
4 |
Cell pitch (mm) |
100 cpsi |
|
5 |
Cell wall thickness (mm) |
0.45-0.52 |
|
6 |
Cell size (mm) |
2.02-2.09 |
|
7 |
Mean pore size (um) |
8-13 |
|
8 |
Porosity (gas pocket rate) % |
50-55 |
|
9 |
Coefficient of thermal expansion |
1.6x10-6 |
|
10 |
Softening temperature (Degree C) |
1360 |
|
11 |
Compressive Strength (Mpa) |
Lengthwise direction |
10 |
|
Lateral direction |
2 |
|
12 |
Water absorption rate: |
35% |
