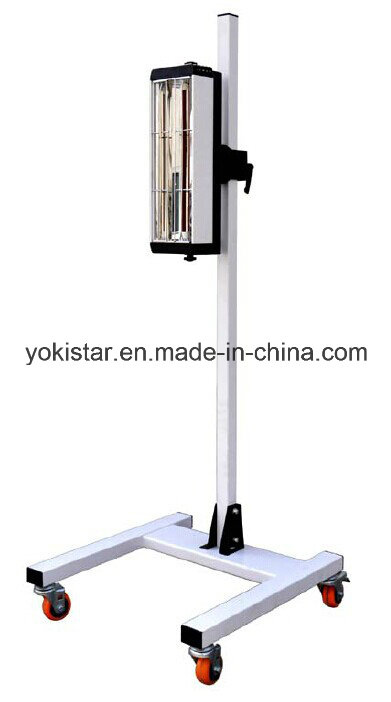

Short-Wave Infrared Curing Lamp for Auto Paint and Spray

Name: Short-Wave Infrared Curing Lamp for Auto Paint and Spray
Brand: ibuyautoparts.com
SKU: 682041391
Availability: InStock
Rating: 4.6 (60 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Model: YS-A10

Technical Parameter:

Temperature Rise Time: 5-15 min (50-80ºC)
Drying Time for different coating
Putty: 8-10 min
Base Coat: 8-15 min
Top Coat: 15-20 min
Clear Coat: 8-10 min
Baking Area: 400 x 500 mm
Baking Distance: 0.5-0.8m
Input Voltage: 220-240V,50HZ,1KW
Cable: 5M long , specification is 3x1.5 m2,can be changed as per different country demand.
Gross Weight: 16.2KG

Key Features:

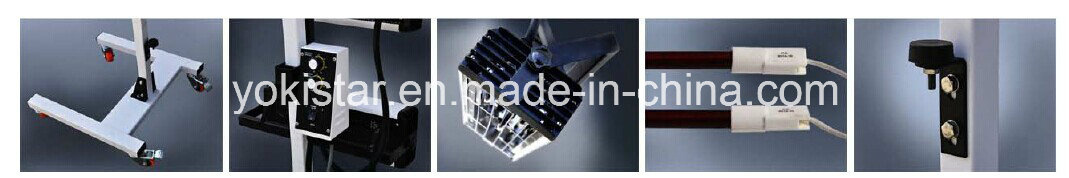

The heat reflection plate with multi angle design to make the heat reflecting rate more than 80%.

The shortwave infrared lamp is CE approved; rising temperature is faster and heating time is shorter; the using life is more than 5,000 hours; suitable for small area baking.

The cassette is made of aluminium alloy for durability and good thermal diffusivity; the baking time and power of heating lamp can be adjusted by knob switch for different coating requirement.

The "H" style basement provides a smooth and solid working condition.

Equipped with a special device to prevent cassettes from falling down.
The installation and operation are very easy.

Carton Package Details:

name	specification	quantity	gross weigt
lamp panel	900× 550× 220	1pc	11KG
post	1530× 1000× 370	1pc	25KG
basement	980× 810× 100	1pc	18KG

Warranty
The goods are guaranteed for 12 months from the date of receipt, except for the lamps, which are guaranteed for 8000 hours. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

Prod Model:	YS-A10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dry Acreage:	0.5*0.6m²
Dry Distance:	0.3-0.6m
Voltage:	1X220V, 3X380V, Your Special Voltages Are Accepted
