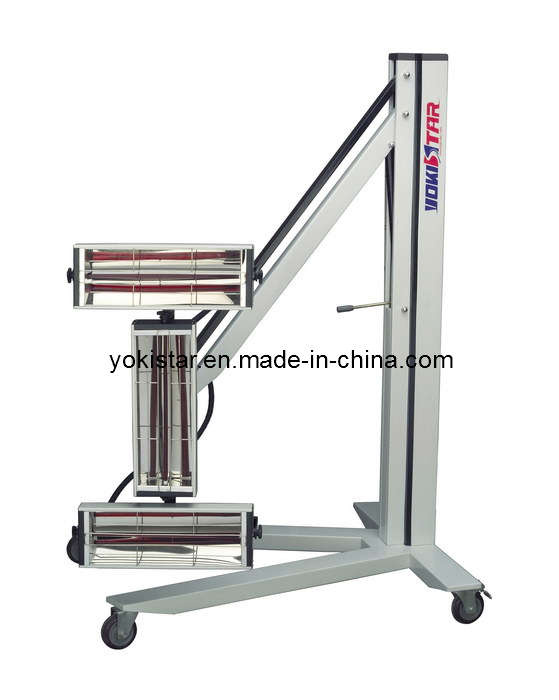

Short Wave Infrared Curing Lamp Baking Time and Power Adjustable

Name: Short Wave Infrared Curing Lamp Baking Time and Power Adjustable
Brand: ibuyautoparts.com
SKU: 669545785
Availability: InStock
Rating: 4.4 (75 reviews)

Price:	US $ 269-363/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YS-A30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dry Acreage:	0.5*0.6m²
Dry Distance:	0.3-0.6m
Voltage:	1X220V, 3X380V, Your Special Voltages Are Accepted
Port:	Huangpu Port or by Your Order
Certification:	CE
Type:	Short Wave Infrared Curing Lamp

Product Description

Model: YS-A30
Package dimention: 1530*1020*370mm L*W*H
With hydraylic system and Y shape basement convenient to move

A. Infrared short wave lamp cure system is widely used in automotive sheet metal repair paint shop.
B. The use of short wave infrared lamp can improve painting surface gloss and fullness, enhance the coating adhesion.
C. The use of short wave infrared lamp can complete drying process from the inside to outside in a very short period, while keep intact the color and spray painting level.

Warranty
The goods are guaranteed for 24 months from the date of receipt, except for the lamps, which are guaranteed for 8000 hours. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

Specification:

Lamp: 3 PCS
Lighting Box: 3PCS
Length of wire: 5m, 3× 4m2
Control Box: Timer, power regulator, lamp switch, power switch

Technical data:
Time of raising temperature: 3-5min (60° C)
Drying time:
1, Putty: 5-8 min
2, Filler: 6-9 min
3, Primer: 7-10 min
4, Base-coat: 7-8 min
5, Top-coat: 8-10 min
6, Clear-coat: 8-10 min
Drying acreage: 1.2× 0.6m²
Drying distance: 0.3-0.6m

Package:
1, Lamp panel: 900× 550× 250mm
2, Post: 1520× 900× 200mm
3, Basement: 1000× 900× 80mm

name	specification	quantity	gross weigt
lamp panel	900× 550× 220	1pc	11KG
post	1530× 1000× 370	1pc	25KG
basement	980× 810× 100	1pc	18KG
