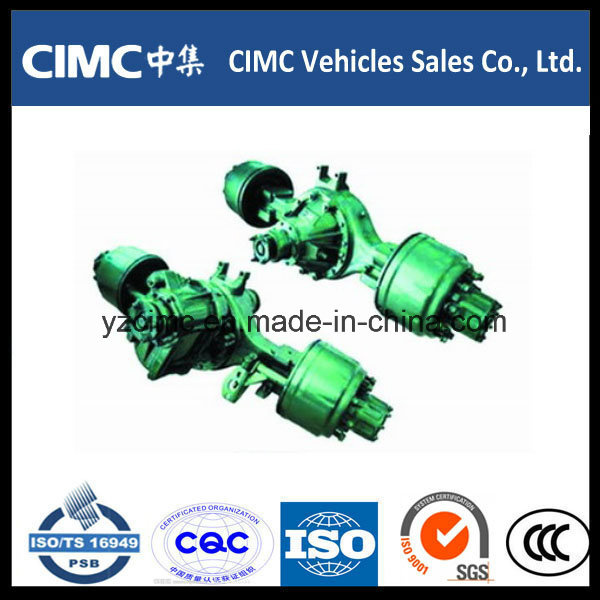

Product Name: Hande Tandem Driving Axle
Technology Platform: Austria Steyr Technology
Performance: Rated axle load 13 T, Drum brake of 410 x 220, and good heat dispersion, High brake efficiency, reliable and stable braking performance; Hub reduction and the speed ratio covering 4.42 4.80 5.73 6.72 7.49 8.4 and 9.49, Axle shaft torsional strength is very strong, and drum brake assy of 420 x 185, ABS and ASA can also be optional.
Usage: On a large scale assembled on domestic heavy duty trucks and military off-road vehicles, and export to South East Asia, Europe and America
Please contact us for details.
Contact
Mr. Allen
Mobile : +86 151 5082 2016
| tem | Specification | Data |
| 1 | Rated Axles Load (KG) | 2 x 13000 |
| 2 | Tack(mm) | 1800/1860 |
| 3 | Spring center distance (mm) | 960/1040 |
| 4 | Section size(mm) | 150 x 130 x 16 |
| 5 | Input/output Flange (mm) | 180 Serration |
| 6 | Max input speed (rpm) | 3500 |
| 7 | Max input torque(Nm) | F. R axle 25560 23540 19620 17170 14220 12260 10300 |
| | | R. R axle 18110 16680 13730 11770 9320 8290 7360 |
| 8 | Transmisssion Ratio | 4.42 4.80 5.73 6.72 7.49 8.40 9.49 |
| 9 | Brake Size (mm) | 420 x 185 , 410 x 220 |
| 10 | Brake Distributor pump (in) | 24" / 24" |
| 11 | Braking Torque (Nm) | 29400/ PCS |
| 12 | Axle Weight | F. R axle 870 / R. R axle 780 |
| 13 | Wheel pilot | Rim center hole piloting , wheel bolt 10-M22x1.5 reference circle diameter 335 |
