Service Brake Chamber 3030 for Argriculture Light Truck and Light Bus Suspension System

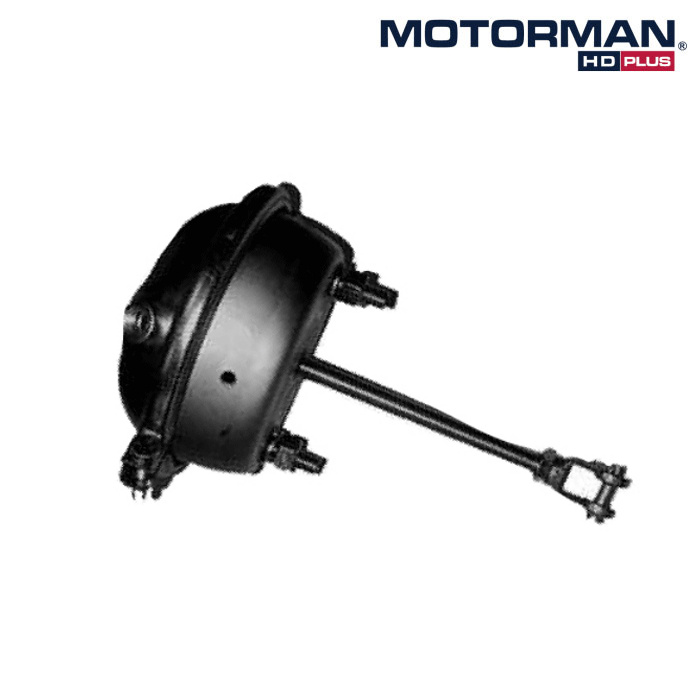

Name: Service Brake Chamber 3030 for Argriculture Light Truck and Light Bus Suspension System
Brand: ibuyautoparts.com
SKU: 690501561
Availability: InStock
Rating: 4.8 (53 reviews)

Price:	Negotiable/Piece
Min Order:	25/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

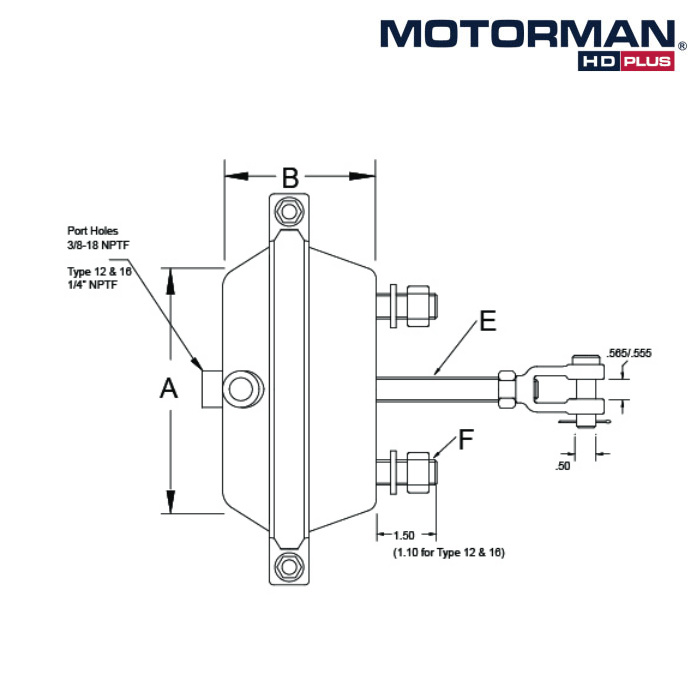

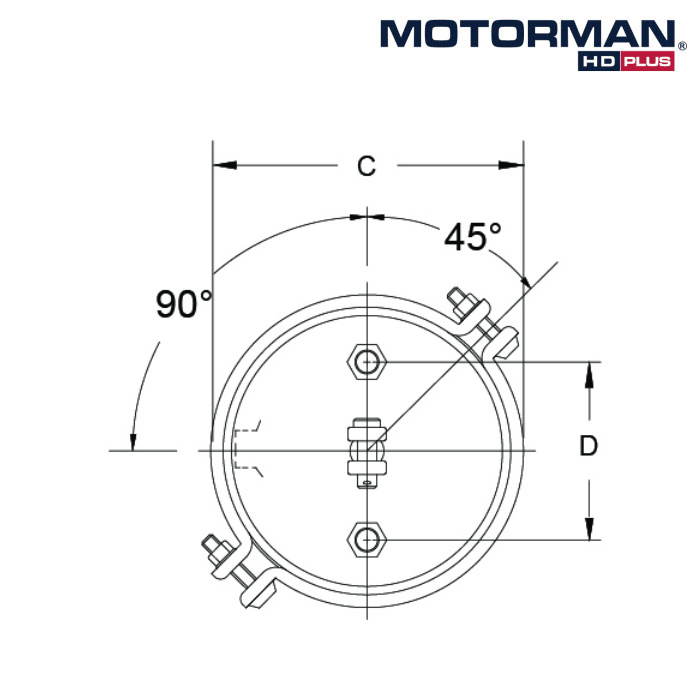

Step1. Key parameters:

MODEL	TYPE	STROKE	A	B	C	D	E	F	G
903-3102	12	1.75"	3.6"	3.1"	5.8"	3"	1/2 *20	7/16 *20	1/4
*903-3101*	16	*2.25"*	*4.2"*	*3.6"*	*6.5"*	3"	1/2 *20	7/16 *20	1/4
903-3103	20	2.25"	4.9"	3.8"	7"	4.75"	5/8 *18	5/8 *11	3/8
903-3104	20	2.5"	4.9"	3.8"	7"
903-3105	24	2.5"	4.9"	4"	7.5"
903-3106	30	2.5"	5.5"	4.1"	8.3"
903-3107	36	3"	6.5"	4.4"	9.2"
903-3108	24	3"	4.9"	4.4"	7.5"
903-3109	30	3"	5.5"	4.4"	8.2"

Step2. Hot Recommended:

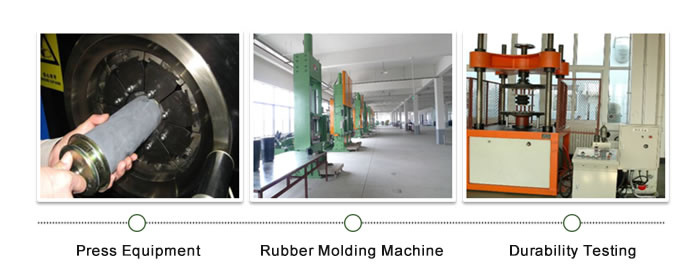

Step3. Production & Testing:

Step4. Packing & Shipping:

Step5. Contact US:

Prod Model:	903-3102
Stroke:	2.25"
Type:	Brake System
Material:	Semi-Metal
Position:	Front and Rear

Ningbo motor has focused on auto parts industry since its inception in 1999. It is located in national R&D zone in ningbo city, the auto parts & accessories base of China. We have 10, 000 square meters warehouse where is only 15 minutes' drive to the 2ND biggest port of China- beilun port. Now ningbo motor has formed four brands: Motorman for auto parts, zumbo for alloy wheels, X-racing for car accessories and gpturbo for turbocharger.
