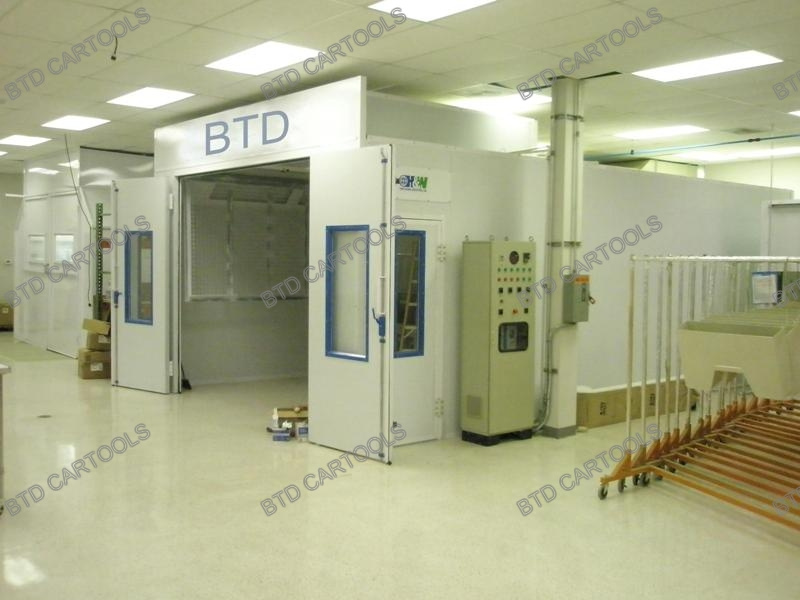

Semi Down Draft Spray Booth for Painting Car
| Price: |
US $ 8000-10000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
| Prod Model: |
Non-Standard |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Management Certification: |
ISO9001: 2000 |
| Technology: |
German Technology |
| Warranty Time: |
2 years |
| Service Time: |
Lifelong maintenance |
| Usage: |
bus and truck spraying and baking |
| Color: |
white |
| Heating Type: |
Gas Burner |
| Air Flow: |
semi down draft |
| PLC: |
yes |
| Control System: |
variable frequency drive for auto pressure |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Brand: |
Btd |
Product Description
Semi Down Draft Spray Booth for painting car
1. CE approved
2. German Technology
3. Big air volume
4. Suitable for painting bus and truck
5. Spray booth professional manufacturer
6. Factory price, energy saving
7. High quality, best sell service, timely delivery
Model: Non-standard| Model | 7925× 4267× 2743 mm (non-standard, exhaust at the back of booth) |
| Booth Dimensions |
|
| -Internal Size(L× B× H) | 7925× 4267× 2743 mm |
| -External Size(L× B× H) | 8050× 5900× 3300mm |
| Foundation and Floor |
|
| - Loading Capacity of Galvanized Grating | Without basement, plenum chamber at the back of booth size 4000× 660× 800 mm |
| - Surface Area of Rear Exhaust Box | 10M² |
| Wall and Door |
|
| - Steel Wall | Double construction with insulations rock wool 60mm thickness |
| - Roof Panel | Double construction with insulations rock wool 50mm thickness |
| - 3-Folded Entrance Door With Safety Glass Window | 1 unit in front, size 3200× 2650 mm(B× H)
|
| - Operator' s Door With Safety Glass Window | 1Unit, 800× 2000 mm(B× H) |
| Lighting |
|
| - Ceiling Lightings | 10 Units, each 4× 36 W, Total 1440W, IP54 |
| - Side Lightings | 10 Units, each 2× 36 W, Total 720W, IP54 |
| - Brightness | > 1000 LUX |
| Filtration |
|
| - Pre filters | bag filter, 4units. |
| - Ceiling Filters | EU5 Fine Filters, 6 Units |
| - Exhaust Filters | Paint-Stop-Paper filters |
| Ventilation System |
|
| - Direct Drive Motor (Fresh Air) | 1× 7.5KW, 460V 3-phase 60hz |
| - Direct Drive Motor (Exhaust Air) | 1× 7.5KW, 460V 3-phase 60hz |
| - Fan Capacity | 32000m3/h |
| - Air Flow Speed | +/- 0.4m/s in an empty booth (air flow direction is from the front of booth to the back of booth) |
| Heating System(option) |
|
| - Heating Exchanger | Stainless Steel 1Gr18Ni9Ti |
| - Heating Exchange Capacity | 186KW (260000 Kcal/h) |
| - Max. Drying Temperature | 80 degree |
| - Heating time | 4-6 min (from 20 to 60 degree, ) by Drying Phase |
| - Heating Type ( option ) | RS5 gas burner |
| Control Box |
|
| - Control system | variable frequency drive for auto pressure |
| - PLC | Yes |
| - Overpressure Manometer | Yes |
| - Safety Thermostat for Heating and Ventilator | Yes |
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray booth is getting more and more popular all over the world.
BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
FQA:
Q1: Are you Manufacturer or Trading company?
A: We are a professional manufacturer with our own export department.
Q2: Where is your company ocated? How can I visit there?
A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.
Q3: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.
Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.
Q5: Does the BTD spray booth with the European design?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.
Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50Hz 1pH for lights (Residential voltage), 380V 50Hz 3pH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.
Q7: Can we customize our product?
A: Absolutely yes, BTD has the professional team with 10 years of design experience. Customized material and standard are acceptable. We can provide different standards according to your market and favor.
Our Service:
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project,
Please feel free to contact us.
