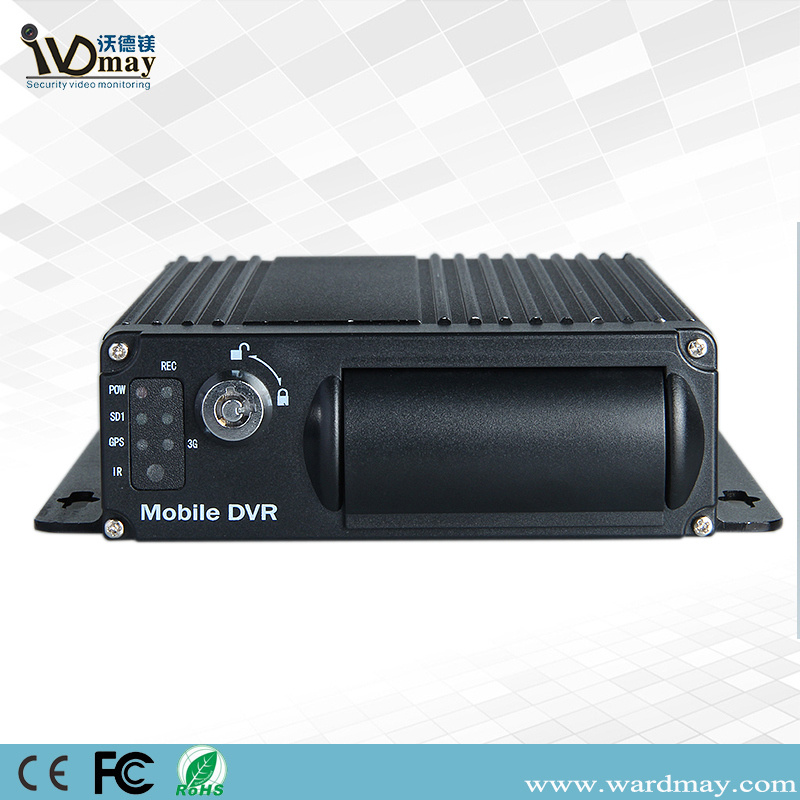

Security 3G GPS 4CH Vehicle Car DVR Support Remote record Motion DetectionFeature*OSD Menu ,Linux System operation
*4 Channel Video/Audio Input ,1 Channel RCA Video Output,1 Channel RCA Audio Output
*1CH/4CH Display
*PAL/NTSC
*H.264 Compression, CIF/HD1/D1 optioanl
*Built-in G-Sensor
*Support 1 SD Card up to 128G
*Support Real Time Video Monitor ,Real Time GPS Track
*Support 3G(GSM,WCDMA, CDMA2000, TD-SCDMA)
*Support GPS Track Record ,Speed Record
*Support PC and iPhone ,Android Phone Monitor
*Built-in WIFI B/G/N
*Support GPS Track Record ,Speed Record
*Video Playback ,Speed and GPS Track playback
*Support PC Playback and (MDVR) Video Playback
*Support Update
*8-36V Input ;12V/2A Output
*woking temperature -20ºC--60ºC
SpecificationSpecification |
Product Name | 4CHS 3G/WIFI Car Mobile DVR |
Model No. | WDM-8504BH |
Video |
Project | Specification | Feature |
System | Host Processor | Hi3512 |
Operate System | Linux |
Language | Chinese/English |
User Interface | GUI, Support USB Mouse |
Password | User password, administrator password two management |
Video | Video Standard | PAL(625TVL, 50F/S); NTSC(525TVL, 60F/S) |
Image Coding | H.264(Main Profile) |
|
Monitoring quality | D1 |
Video Resolution | CIF/D1 |
|
Coding | 4CH Real Time |
Decoding | 2CH D1 Real Time |
Video Input | 4 Channel Video Input |
Video Output | 2 Channel Video Output |
Display | Support 1/4; Support alarm screen automatically switches |
Audio | Audio Comression | ADPCM |
Audio Input | 4 Channel Audio Input |
Audio Output | 1 Channel RCA Audio Output |
Recording Mode | Sound and Video Recording Synchronously |
Voice intercom | Support |
Video and playback | Recording mode | Manual, time, alarm, loop recording |
Video bit rate | 64Kbps~1.5Mbps, 6 level optional |
Audio bit rate | 8KB/S |
Storage | Support 1pcs SD Card up to 128G |
Video Search | By channel, time, recording type |
Local Playback | file playback; 4-channel playback |
ON/OFF | Boot mode | ACC, TIME |
Shutdown mode | ACC delay shutdown, time off, hard disk lock off |
Software Upgrade | Upgrade Mode | Manual upgrade, powered automatic upgrade |
Upgrade Method | SD Card; wireless network |

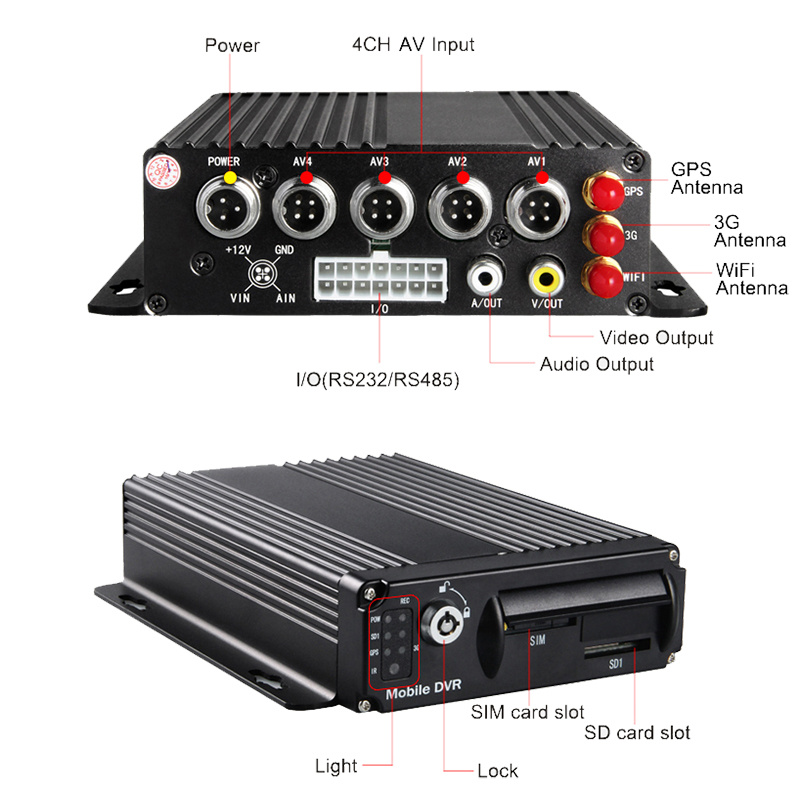

Interface | Video Input | 4Channel Aviation |
Video Output | 1Channel RCA |
Audio Input | 4 Channel Aviation |
Audio Output | 1 Channel RCA |
Hard Disk Interface | 1pcs SATA Interface |
USB Mouse | Support |
Ignition signal | 1 |
Alarm Input | 4 |
Alarm Output | 1 |
RS485 | 1 |
RS232 | 1 |
GPS | | GPS |
3G and WIFI | | 3G and WIFI |
Supporting software | PC Playback Software | video files playing back on the PC side, parsing the video file IO signal superimposed, GPS information, etc |
| CMS | Remote video preview through a wireless network, GPS upload, alarm and central command issued to upload, configuration parameters, and other functions |
Others | Power Input | DC: 8V~36V |
Power Output | +12V@2A; +5V@2A |
Operating Temperature | -20ºC - 60ºC |
Power consumption | Empty 3.6W, full 20W |

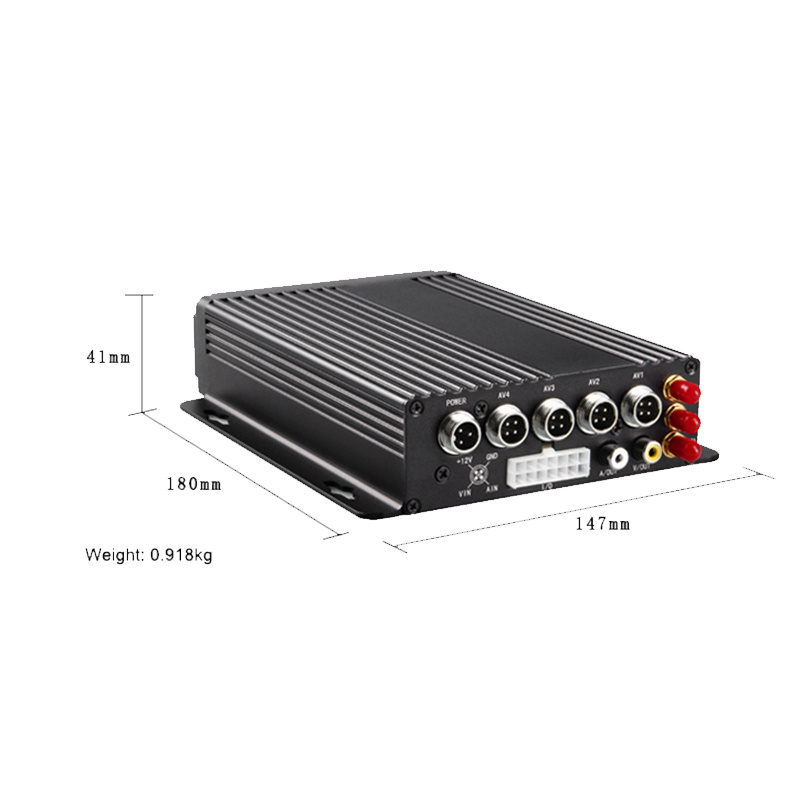

Size | 180mm*147mm*41mm |
Power Input | 8-36V | DC+8V~+36V, if lower than 8V, or higher than 36V, the MDVR will be shutdown, into protect status |
Power Output | 12V | Output: 12v(+/-0.2v), max 2A |
Key Signal | ≤4V | Key off |
≥5V | Key on |
Video Input(Ω) | 75Ω | 75Ω/CH |
Video Output | 2Vp-p | One 2Vp-p CVBS One 75Ω |
I/O | 0-4V | Low voltage alarm |
>4V | High voltage alarm |
SD Card Slot | SD Card | 1,Support SD Card up to 128G |
2,Support upgrade |
Temperature | -20ºC-60ºC | -20ºC-60ºC with good environment |
